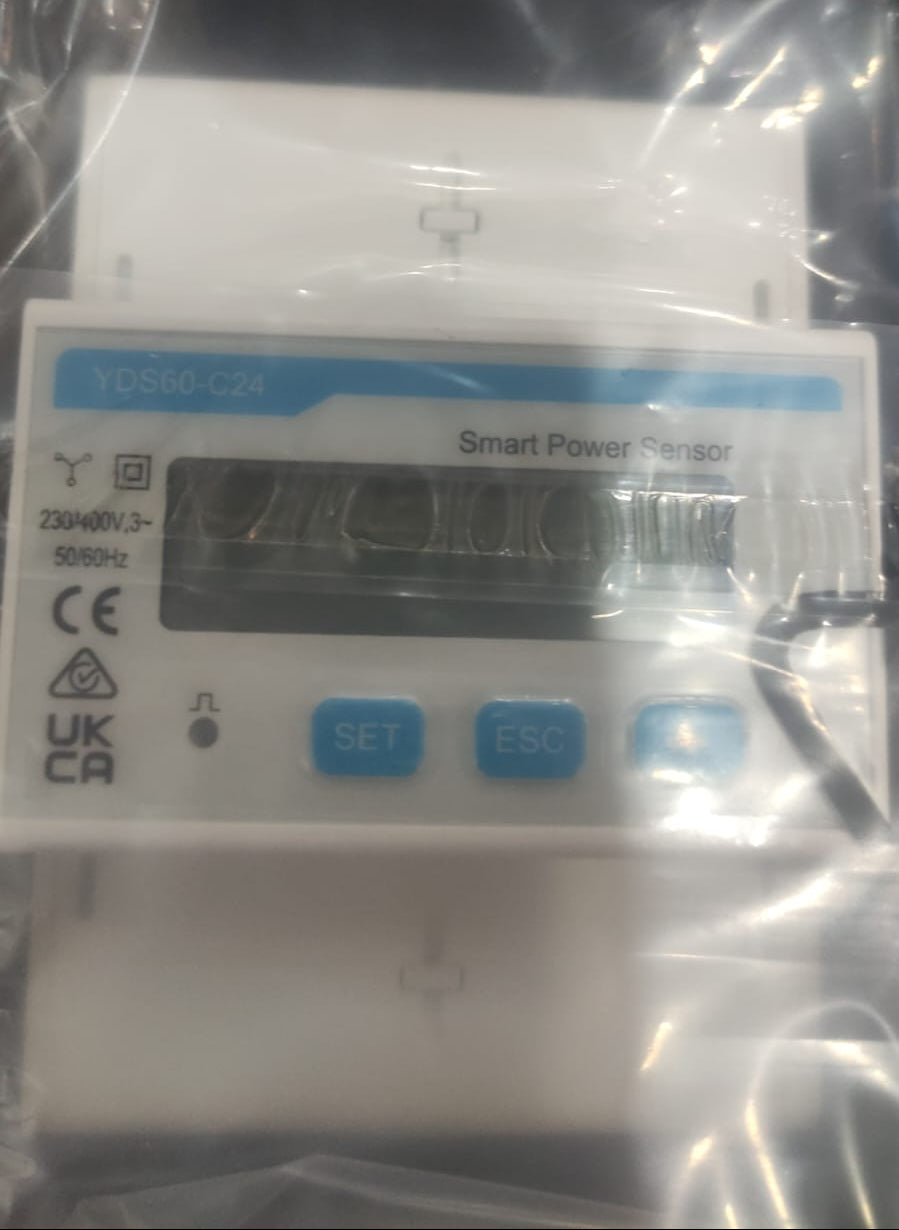

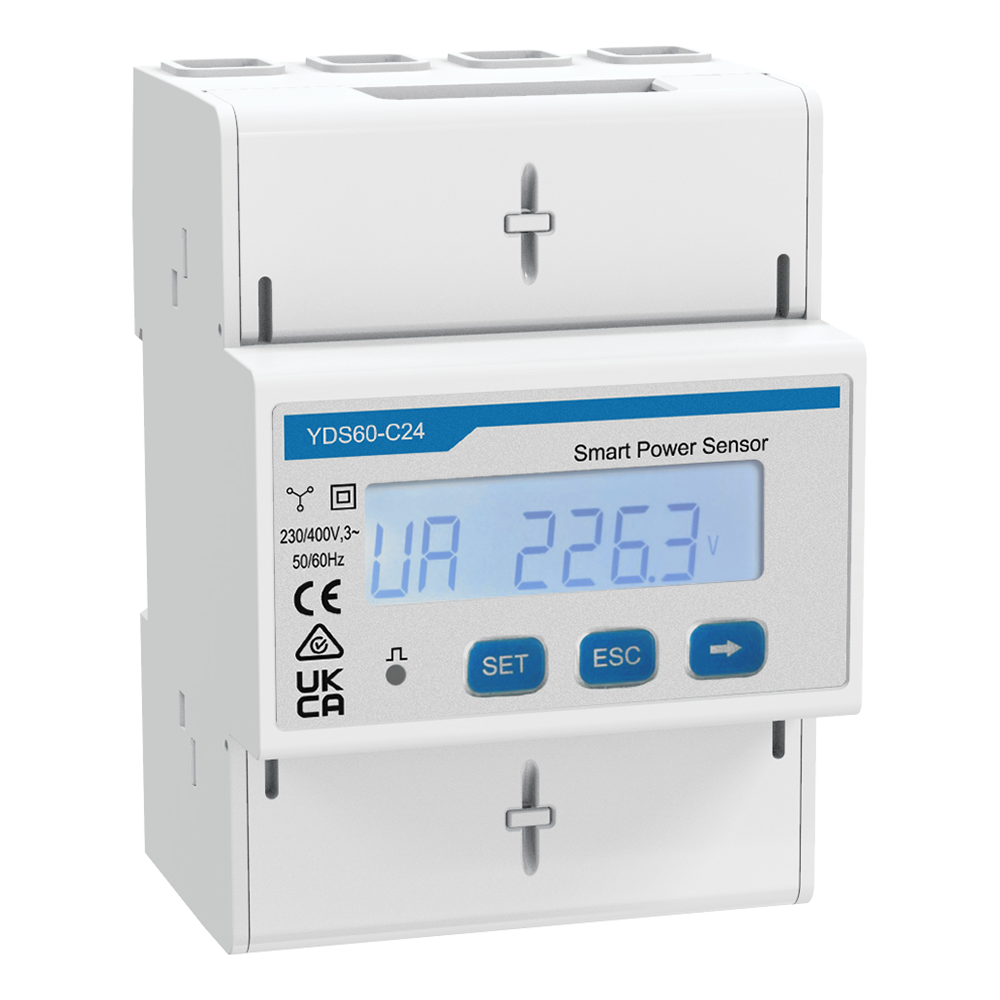

YDS60-C24 Smart Power Sensor in Pakistan

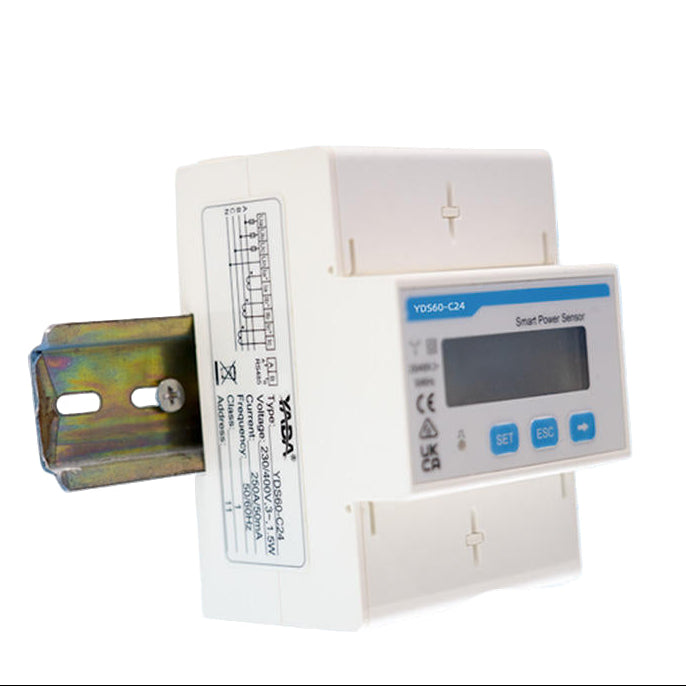

The YDS60-C24 is a three-phase Smart Power Sensor commonly used in solar PV systems (like Huawei FusionSolar) and industrial energy management. It provides real-time monitoring of electrical parameters such as voltage, current, power, and energy Below are the key technical specifications and wiring details for this model: Technical Specifications Feature Details Model YDS60-C24 Grid Type 3-Phase 3-Wire (3P3W) or 3-Phase 4-Wire (3P4W) Nominal Voltage 230 V AC / 400 V AC Input Voltage Range Phase: 176 V AC – 288 V AC / Line: 304 V AC – 500 V AC Current Range 0 – 250 A (measured via CT) CT Secondary 50 mA Accuracy Class 1 (Voltage/Current: ±0.5%, Power/Energy: ±1%) Communication RS485 (Modbus-RTU) Mounting 35 mm DIN Rail Dimensions 100 mm x 72 mm x 66 mm Features of YDS60-C24 Smart Power Sensor: Real-time power monitoring High measurement accuracy Compact smart design Stable digital output Long service performance Specifications: Model: YDS60-C24 Input: Electrical parameter sensing Output: Digital signal Type: Smart power sensor Mounting: Panel/industrial use Uses: Energy tracking Industrial automation System monitoring Load management Package includes: 1x Smart Power Sensor
