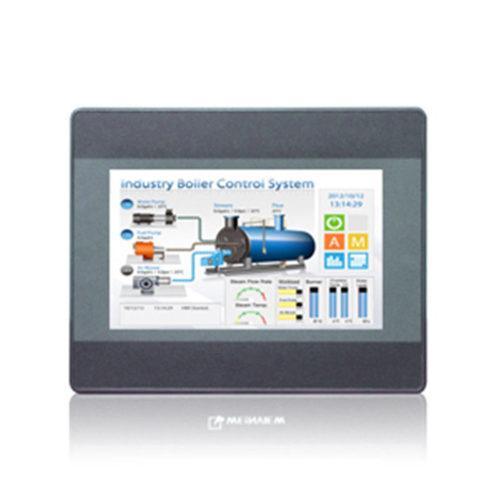

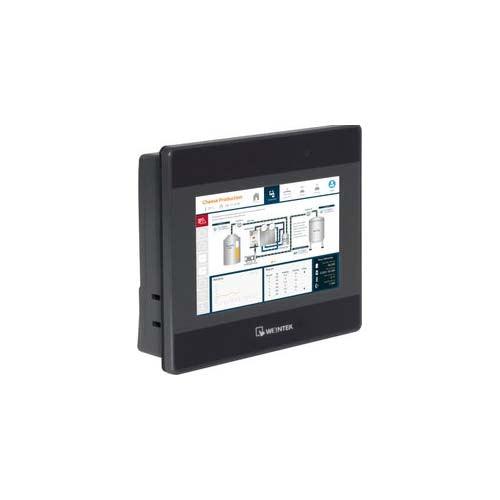

Weintek MT8051iP HMI panel with a screen size of 4.3" is designed for visualization of technological processes running on programmable logic controllers (PLC) .
Specification:
Product Type Human Machine Interface with 4.3" TFT LCD display
Model Number/Name MT8051iP
Brand Weintek
Screen Size 4.3"
Power 24+/-20% VDC
USB Host ports number, type USB 2.0 x 1
Flash Memory 128 MB
Protection Class Front, Rear NEMA4 / IP65 Compliant Front Panel
COM Port COM1 RS-232/RS-485 2W/4W COM3 RS-485 2W
RAM 128 MB
Product Weight Approx. 0.25 kg
Ethernet Interface 10/100 Base-T x 1
Product Certifications CE marked
Realtime Clock Built-in (CR2032 3V lithium battery.)
Package Includes:
1 x Weintek MT8051iP HMI
