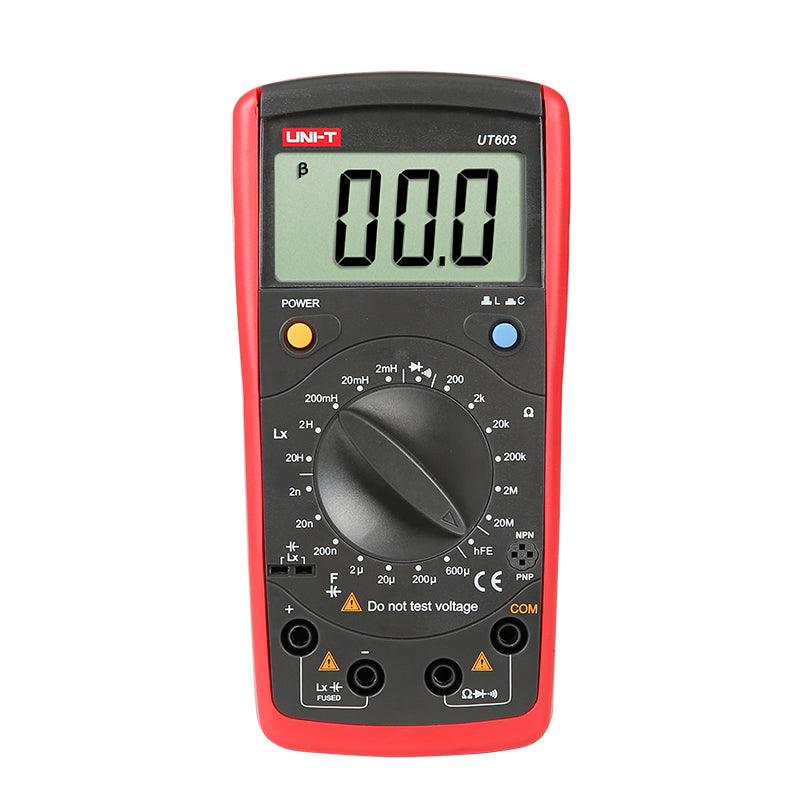

UT603 LCR Meter Inductance Capacitor Meter in Pakistan

An LCR meter is a type of electronic test equipment used to measure the inductance (L), capacitance (C), and resistance (R) of an electronic component . In the simpler versions of this instrument, the impedance was measured internally and converted for a display to the corresponding capacitance or inductance value. Specifications: Specifications Range UT603 Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+1) Capacitance (F) 2nF/20nF/200nF/2uF/20uF/200uF/600uF ±(1%+5) Inductance (H) 2mH/20mH/200mH/2H/20H ±(2%+8) Features Display count 2000 Manual range √ Diode √ Transistor √ Continuity buzzer √ Low battery indication √ General Characteristics Power 9V battery (6F22) Display 61mm x 32 mm Product color Red and grey Product net weight UT601/UT602: 310g, UT603: 312g Product size 172mm x 83mm x 38mm Standard accessories Battery, test leads with alligator clips, holster Standard individual packing Gift box, English manual Standard quantity per carton 20pcs Standard carton measurement 450mm x 330mm x 340mm (0.099CBM per standard carton) Standard carton gross weight 9.6kg Package Includes: 1 x UT603 LCR Meter Inductance Capacitor Meter
