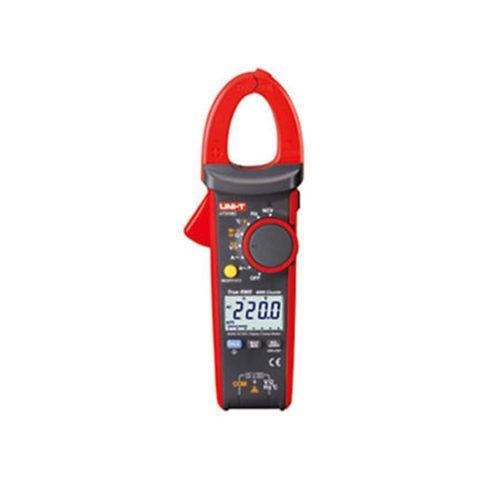

UT216C 600A True RMS Digital Clamp Meters in Pakistan BR1640 Description UT216 series true RMS digital clamp meter is a new-generation practical electro technical measurement meter which has the features of high reliability, high safety, automatic range and handheld type, has full-range overload protection and unique appearance design, is more excellent in performance, and is an ideal tool for detection, maintenance and repair of various universities and colleges, smelting, communication, manufacturing, petroleum, national defense, electrical, power and circuit equipment. Manufactured by UNI-T. Features: True RMS Auto range, 3/s sampling rate MAX/MIN/Relative modes K-type temperature probe Flashlight Data hold, LCD backlight, auto power off 400Hz measurement NCV, non-contact AC voltage testing VFC, low pass filter Zeroing function Inrush current Analog bar graph Specifications Range Best Accuracy Model UT216C AC Current (A) 60A/600A ±(2.5%+5) DC Current (A) 60A/600A ±(2.5%+5) AC Voltage (V) 6V/60V/600V/750V ±(1.2%+5) DC Voltage (V) 600mV/6V/60V/600V/1000V ±(0.8%+1) Resistance (?) 600?/6K?/60K?/600K?/6M?/60M? ±(1%+2) Capacitance (F) 60nF/600nF/6?F/60?F/600?F/6mF/60mF ±(4.0%+5) Frequency (Hz) 10Hz-1MHz ±(0.1%+4) Temperature (°C) -40 °C ? 1000°C ±(2.5%+3) Temperature (°F) -40 °F ? 1832°F ±(2.5%+4) Features Display Count 6000 Auto Range ? Jaw Capacity 30mm True RMS ? Diode Around 3.0V ? V.F.C. ? NCV ? Data Hold ? Zero Mode ? Relative Mode ? MAX/MIN ? Inrush Current ? LCD Backlight ? Analogue Bar Graph 61 Flashlight ? Auto Power Off Around 15 Minutes ? Continuity Buzzer ? Low Battery Indication ?3.6V ? Input Protection ? Input Impedance for DCV ?10M? ? Device Characteristics Power AAA 1.5V x 3 LCD Size 38mm x 24 mm Product Color Red and Grey Product Net Weight 231.7g Product Size 220mm x 75mm x 40mm Standard Accessories Batteries, Test Lead, Point Contact Temperature Probe Standard Individual Packing Gift Box, Carrying Bag, English Manual Standard Quantity Per Carton 40 PCs Standard Carton Measurement 485mm × 320mm × 385mm (0.060 CBM Per Standard Carton) Standard Carton Gross Weight 20Kg
