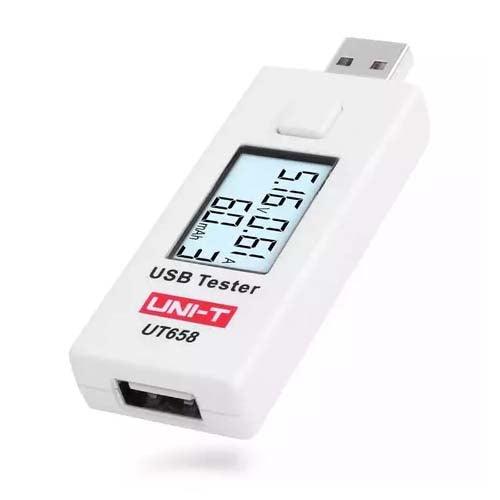

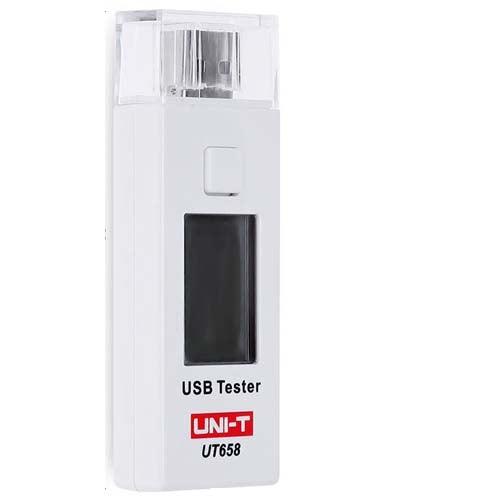

UNI-T UT658 USB tester – a tool to test the quality of charger/power bank. It can give a comprehensive detection for the charging equipment, such as output voltage, output current, output capacity, output voltage stability, etc.
You may use UNI-T UT658 to test charging current with different charging cables, allowing you to select the optimal charging cable to save the charging time.
Features:
Real-time detection: test voltage, current, and charging capacity.
DC3-9V voltage test range, 0-3A current range, ±1% accuracy
Voltage alarm function: when the voltage is higher than 5.3V(display "H") or lower than 4.7V(display "L").
LCD display with multiple data
Data storage: 10 groups of capacity data
Specifications:
Input voltage range 3 V - 9 V
Voltage resolution 0.01 V
Voltage monitoring accuracy ±1%
Current monitoring range 0 A - 3 A
Current resolution 0.01 A
Current monitoring accuracy ±(1%+2)
Energy (Capacity) 0-9999 mAh
Display LCD, 26 × 17 mm
Size 83 × 29 × 12 mm
Weight 28 g
Package includes:
1 x USB tester UNI-T UT658
