UNI T UT682 Wire Tracker in Pakistan

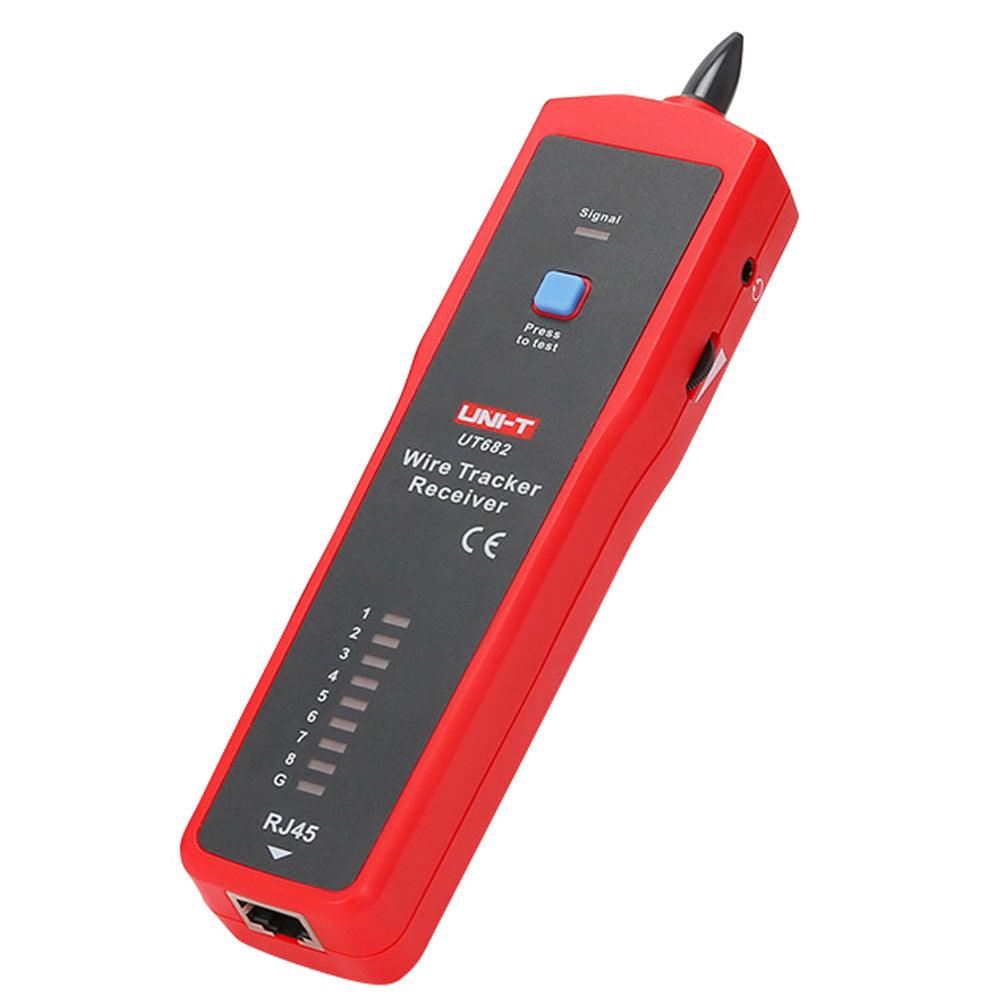

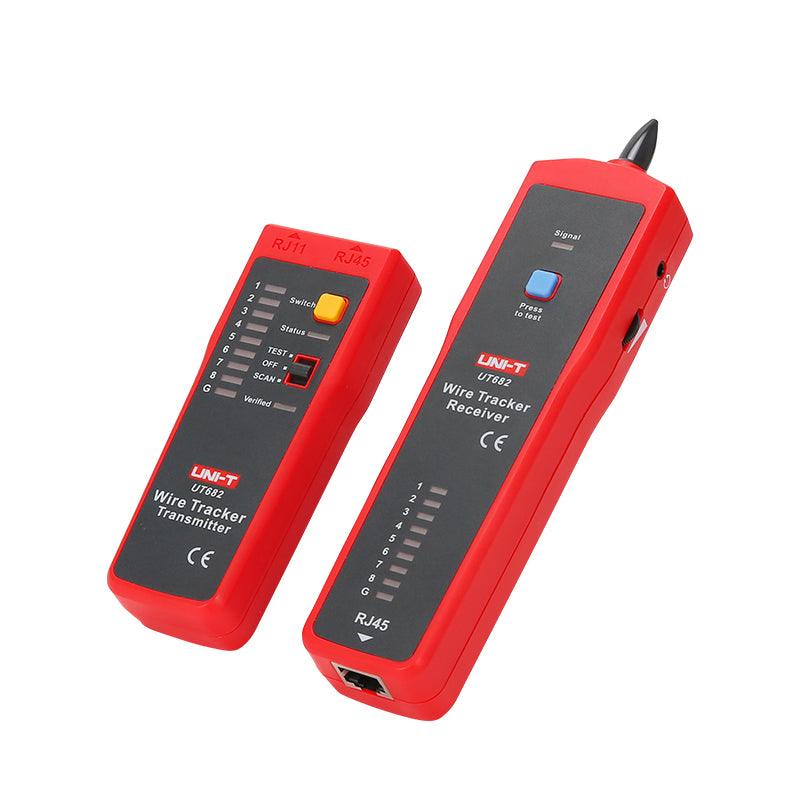

UT682 wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation. UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables. Specifications: Specifications Range UT682 Wire tracking features Wire types LAN cable\telephone line\coaxial cable\electric wire Indication light for signal strength √ Live switchboard wire tracing √ Switchboard wire tracing distance ≥100m Telephone lines tracking distance ≥3000m Unshielded cables tracking distance ≥320m Shielded cables tracking distance ≥320m Open and short circuit test √ Polarity indication for telephone lines DCV function, range: ±(5V~52V) √ Telephone lines and LAN cables distinction Jacks distinction √ Broken wire tracking √ Transmitter output voltage ≥12V peak-peak Transmitter low battery indication 6.6V±0.5V Transmitter power supply 9V battery √ Max transmitter working current 25mA Headphone jack for the receiver √ Receiver power supply 9V battery √ Max receiver standby current ~10mA √ Max receiver operating current <40mA (AC, RMS) √ Wire alignment Line sequence measurement 9 LEDs (LED1~LED8, LED_G) √ Line sequence measuring speed Fast and slow selectable √ LAN cable: shielded/unshielded indication √ Transmitter input voltage protection 　 52V DC Operating environment Operating temperature: 0~40℃; Storage temperature: -10~50℃ Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m General Characteristics Product color Red and grey Product net weight Transmitter-125g, receiver-153g Product size Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm Package Includes: 1 x UNI T UT682 Wire Tracker
