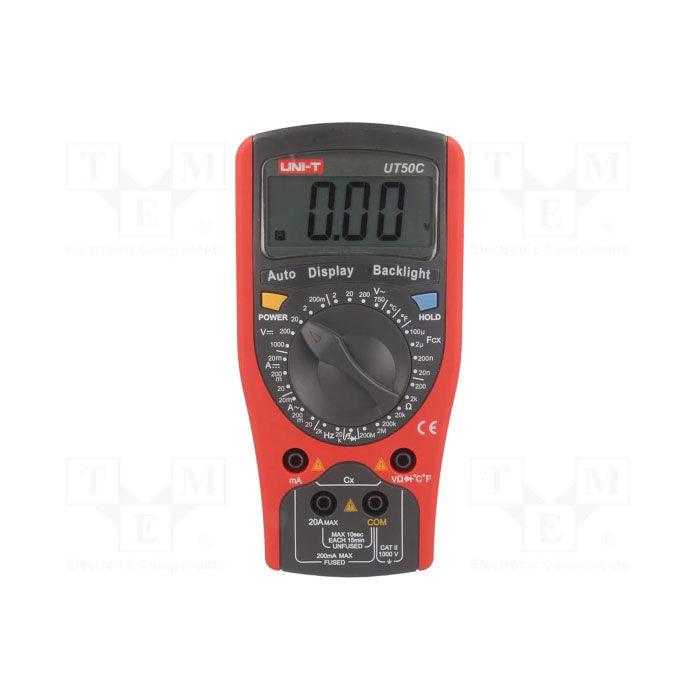

UNI-T UT 50-II SERIES Digital multimeter Series Present UT-50C with AC current measuring range of 20 mA/200mA/20A modern design with automatic backlight. Handheld DMM ut50c is an electronic measuring instrument that combines several measurement functions in one unit. A Pocket-size Multitester can measure voltage, current, and resistance. Analog multimeters use a microammeter with a moving pointer to display readings . Palm-size UNI-T digital Multimeter uses a large-scale integrated circuit with a double integrated A/D converter as its core and has full range overload protection. UNI T UT50C has Adopted an advanced "co-injection" technique in order to provide sufficient insulation and anti-shaking.
Features:
The Meter uses a large scale of integrated circuit with a double integrated A/D converter as its core and has full range overload protection.
Can measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Temperature, Frequency, Diodes, and Continuity
The Meter has a Sleep mode and a Low battery display
It Can Hold the Data and Has Continuity Buzzer
Adopted advanced "co-injection" technique in order to provide sufficient insulation and anti-shaking.
The automatic display backlight feature enables users to work in a dim condition
Specifications:
Power : 9V bat. (6F22)
Product Dimension: 165 x 80 x 38mm
DC Voltage:
Range: 200mV / 2V / 20V / 200V / 1000V
best accuracy: +/- (0.5%+1)
AC Voltage:
Range: 2V / 20V / 200V / 750V
Best accuracy: +/- (0.8%+3)
DC Current:
Rane:20mA / 200mA / 20A
Best accuracy: +/- (0.8%+1)
AC Current:
Range:20mA / 200mA / 20A
Best accuracy: +/- (1%+3)
Resistance:
Range: 200 Ohm / 2 kOhm / 20 kOhm / 2 MOhm / 200 MOhm
Best accuracy: +/- (0.8%+1)
Capacitance:
Range:20nF / 200nF / 2µF / 100µF
Best accuracy: +/- (4%+3)
Temperature:
Range:-40 až +1000°C, -40 až +1832°F
Best accuracy: +/- 1%+3 (°C), +/- 1%+4 (°F)
Frequency:
Range:2kHz / 20kHz
Best accuracy: +/- (1.5+5)
Package includes:
1x Digital Multimeters UNI-T UT50C
