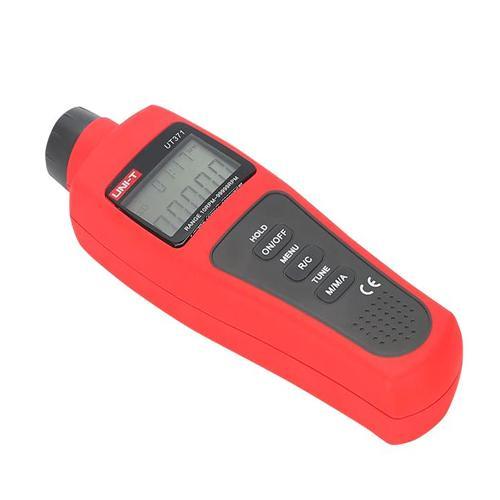

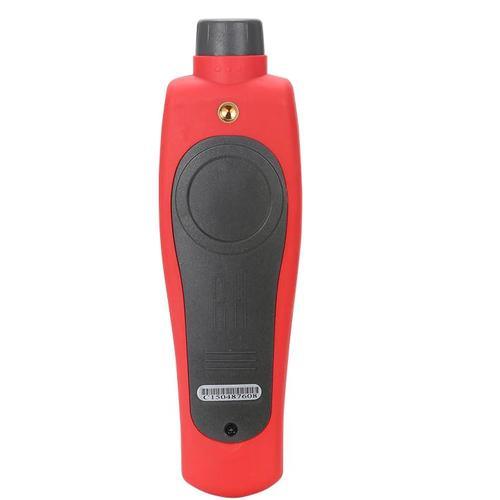

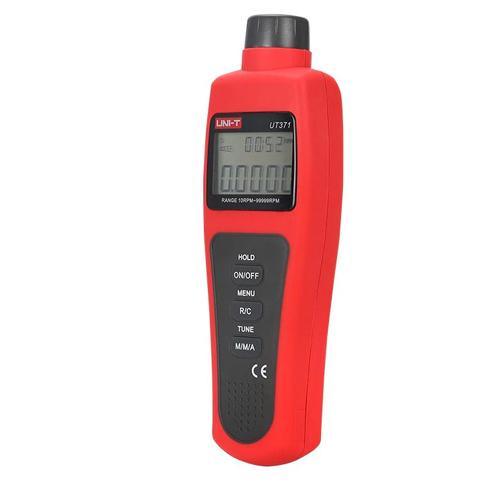

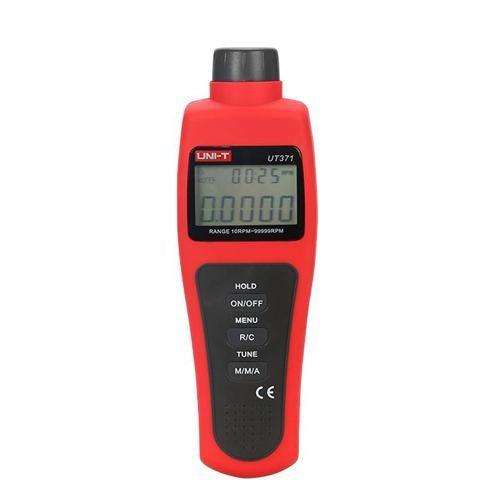

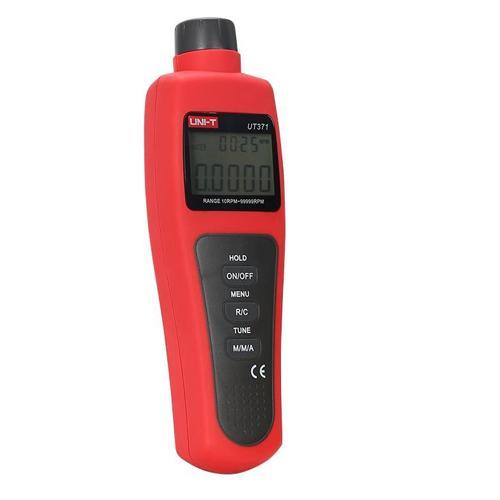

UT370 series photoelectric digital tachometer is of stable performance, safe and reliable. The device circuit design takes the single chip as the core. The photoelectric revolving speed sampling & processing and unique appearance design make the device become the tachometer with excellent performance. The tachometer can be used for revolving speed measurement and count.
Specifications:
Range : Best Accuracy
Mode l: UT371
RPM Range : 10RPM~99RPM ±(0.03%)
100RPM~999RPM ±(0.04%+2)
1000RPM~9999RPM ±(0.04%+2)
10000RPM~99999RPM ±(0.04%+2)
Counts : Range: 0~99999 √
: Max.Input Frequency : 10KHz, Bandwidth: 5%
Target Distance : 50mm~200mm √
Features:
Display Count : 99999
Data Hold : √
Auto Power Off : Around 15 minutes √
Low Battery Indication : ≤4.8V √
MAX Mode : √
MIN Mode : √
AVG Mode: √
General Characteristics:
Power: 1.5V Alkaline Batteries (LR6)X 4
LCD Size : 53mm X 41mm
Product Color: Red and Grey
Product Net Weight: 100g
Product Size : 184mm X 56mm X 34mm
