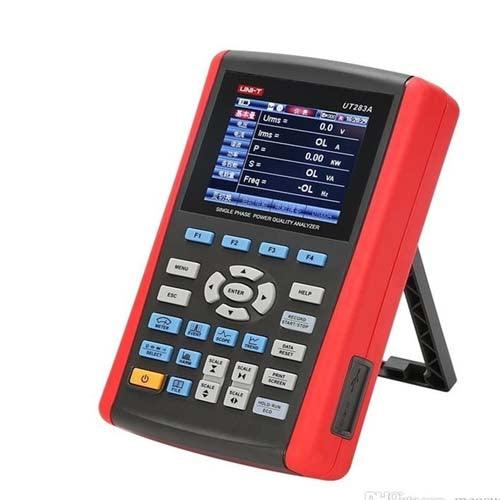

UNI T Single Phase Power Quality Analyzer UT283A in Pakistan BR9059 Description UNI-T UT283A power quality analyzer is a handheld multi-functional device designed to measure and analyze single-phase power systems. UT-283A energy analyzer meter is a portable S class device that can measure amplitude, phase, harmonics, current, voltage, and record results in an SD card for further analysis and export. This power quality meter is suitable for professionals working in electrical power, medical, transportation, telecommunication, and other industrial areas. UNI-T UT283A power harmonics analyzer is now also available in Pakistan . Features Of UNI-T UT-283A Power Quality Tester True RMS Measurement Data Recorder: Trend/event capture Harmonics/inrush current measurement File management through the USB interface Flick measure (PST/PLT values) User-friendly interface Multimeter functions Scope functions including waveform display 3.5 inches 64K color TFT LCD display THD (Total Harmonic Distortion) function Long-term monitoring Specifications Of UNI-T UT283A True RMS Single Phase Power Quality Analyzer Energy Meter: Voltage (V): 10V~1000V AC/DC   ±0.5%Udin AC current (A): 10A/100A/1000A    ±0.5%f.s. Frequency (Hz): 40~70Hz    ±50mHz Power (W): >15%S    ±1%S Power factor: 0~1    ±0.02 Energy (Wh): 0~9999MWh    ±1.5%rdg Crest factor: 1 to 10    ±5% Voltage harmonics or inter-harmonics: Um≥3%Unom (1~51th, step 0.5th)   ±5%Urms, Um＜3%Unom (1~51th, step 0.5th)   ±0.15%Unom Current harmonics or inter-harmonics: Im≥10%Inom (1~51th, step 0.5th)    ±5%Irms, Im＜10%Inom (1~51th, step 0.5th)    ±0.5%Inom Power harmonics: (1~51th, step 1st)    Calculated based on voltage and current amplitude and phase accuracy Transients: ±6000V Peak, Fsample=2MHz    ±5%rdg.±5%f.s Dip/swell/interrupt: 0~1000V AC    Udin±1 % AC inrush current (A): 10A/100A/1000A    ±1%f.s Resistance (Ω): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ   ±(1%+3) Capacitance (F): 60nF/600nF/6μF/60μF/600μF   ±(4%+20) True RMS: Yes Harmonic analysis: Up to 51th Flick measure: 10 minutes, PST and PLT values Voltage ratio: Yes Current ratio: Yes Event capture: Yes Trend capture: Yes Data logging: 8GB USB interface: Yes Backlight adjustment: Yes Low battery indication: Yes Input protection: Yes Power: Li-ion battery: 7.4V 3600mAh Display: 70mm x 52mm; 3.5 inches 64K color TFT LCD (320 x 240) Product color: Red and grey Product net weight: 808.4g Product size: 199mm x 118mm x 49mm
