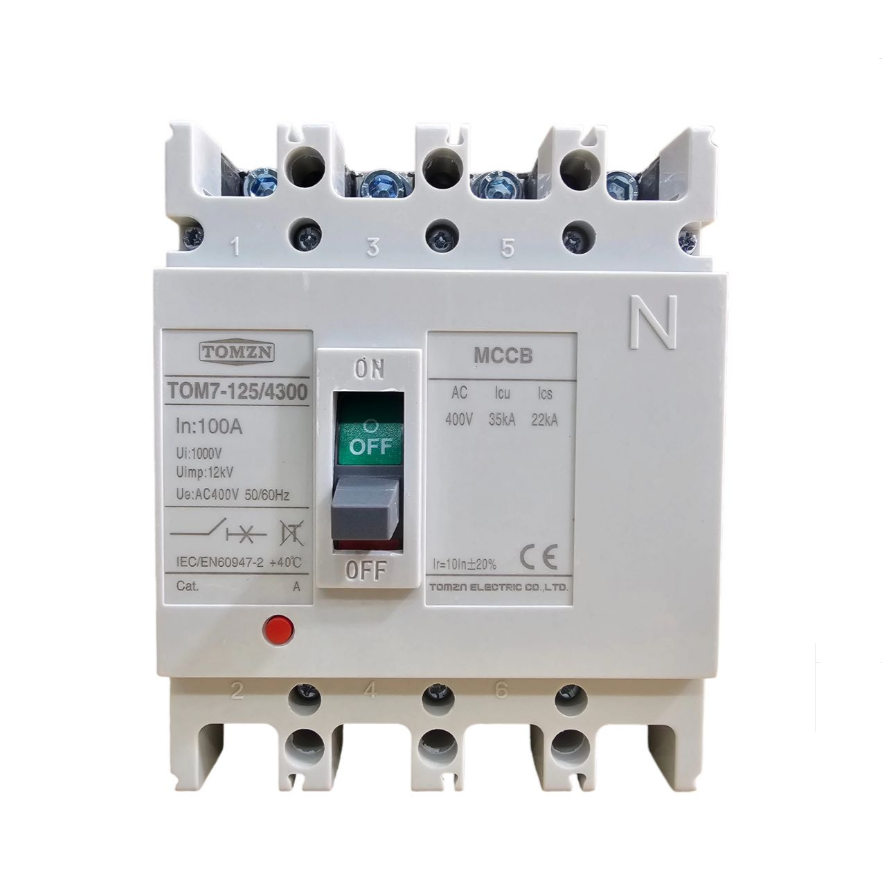

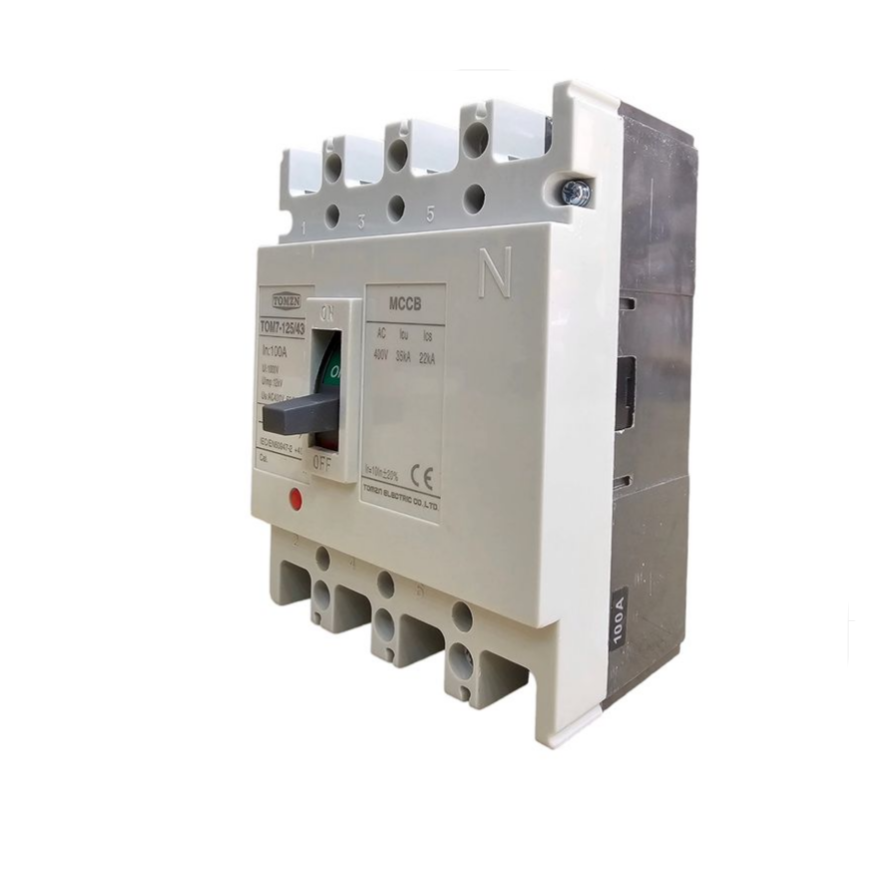

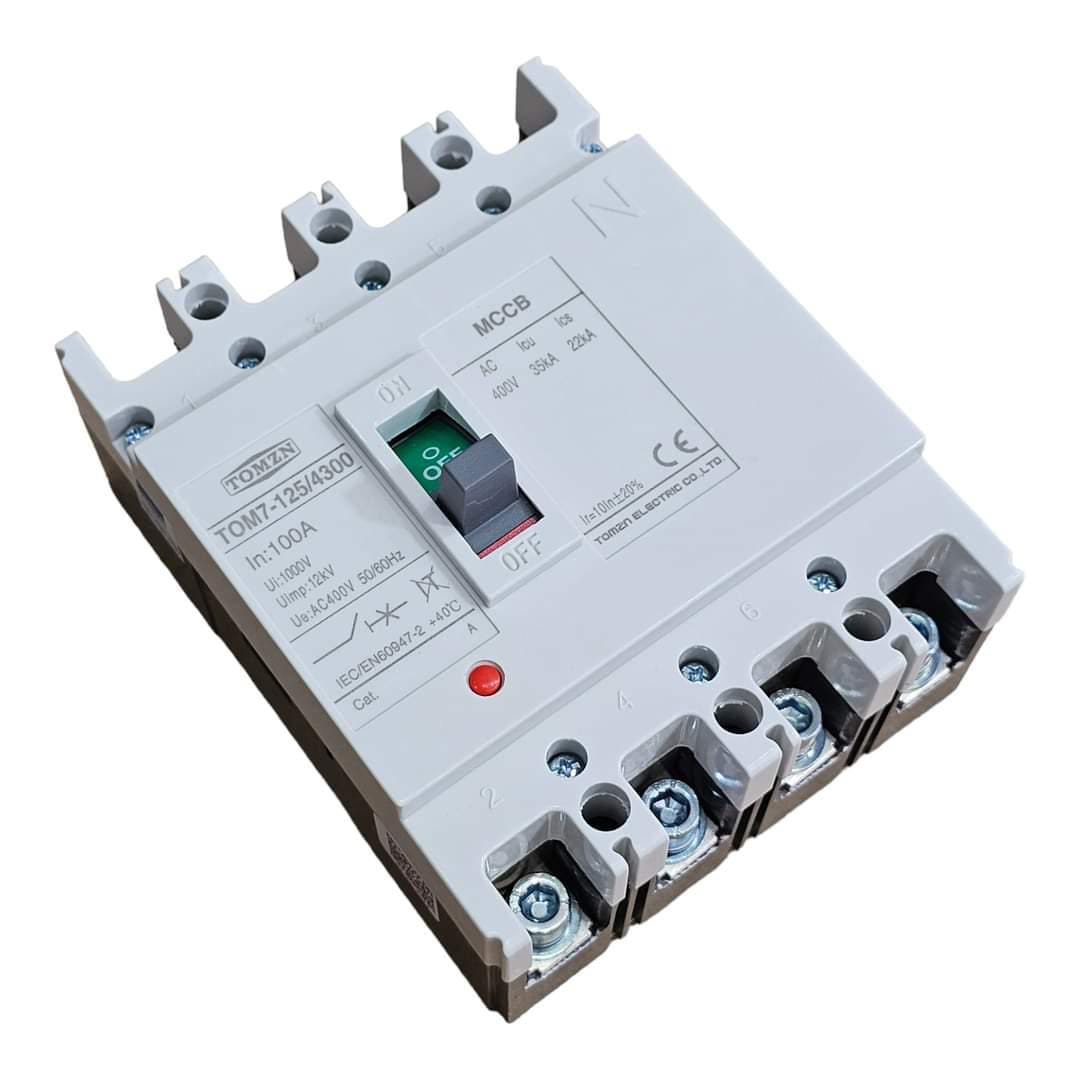

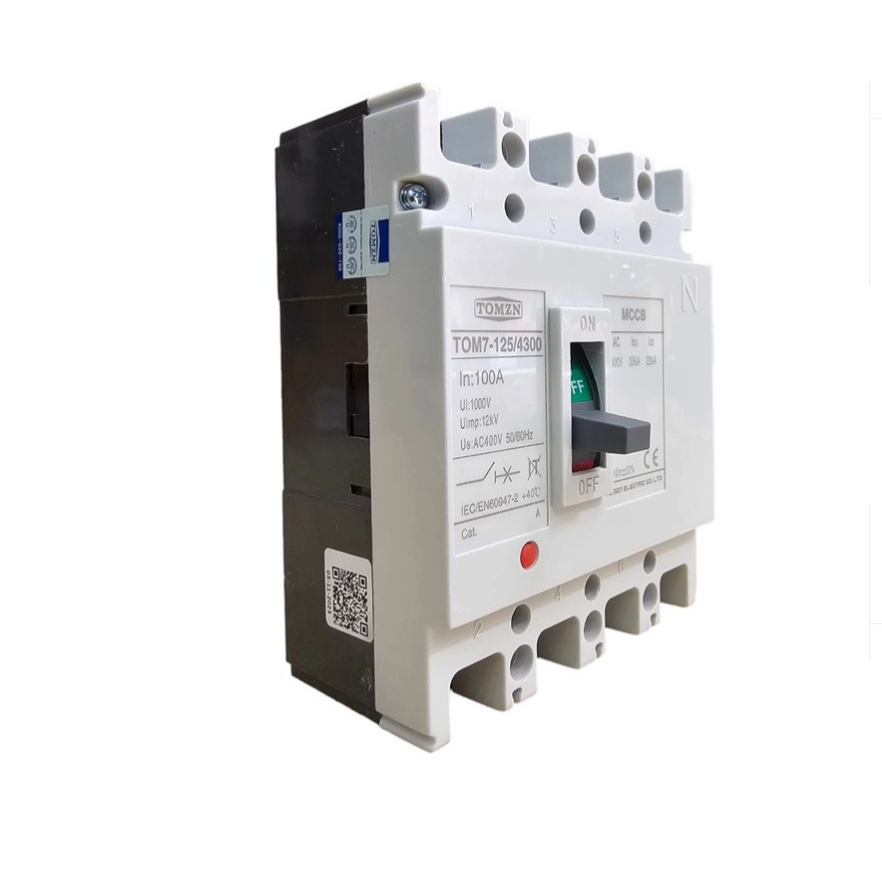

TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circut Breaker in Pakistan - 150A

The TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circuit Breaker is a high-quality electrical protection device designed to safeguard electrical circuits against overloads and short circuits. With a current rating of 100A and four poles, this MCCB (Molded Case Circuit Breaker) is suitable for a wide range of industrial and commercial applications. It offers reliable protection and interruption of electrical currents to prevent damage to equipment and ensure the safety of personnel. The TOMZN TOM7-125/4300 MCCB is an essential component for electricians, engineers, and industrial maintenance personnel, providing efficient and effective circuit protection in various electrical systems. Features: Trip rating: 100A Number of poles: 4 AC Rated Voltage: 400V Breaking Capacity: 35KA at 400VAC Short Circuit withstand: 22KA at 400VAC Thermal magnetic trip unit DIN rail mountable Compact size Flame retardant shell Finger-proof terminals Specifications: Model: TOMZN TOM7-125/4300 Rated Voltage: AC 400V 50/60Hz Standards: IEC/EN60947-2 Operating temperature: -5°C to +40°C Storage temperature: -25°C to +55°C Terminal size: AWG 14-6 Cu/Al Weight: Approx. 2.2kg Dimensions: Height: 90mm Width: 87mm Depth: 75.5mm Uses: Protecting electrical circuits from overload and short circuits in industrial, commercial, and residential applications. Suitable for use in motor circuits, generator circuits, solar power systems, wind power systems, and more. Benefits: Reliable and safe circuit protection Compact size for easy installation in crowded panels High breaking capacity for protection against large fault currents Finger-proof terminals for added safety Competitively priced Package Includes: 1 X TOMZN TOM7-125/4300 MCCB 100A 4 Pole Circuit Breaker
