Tense XJ3-G phase sequence relay in Pakistan

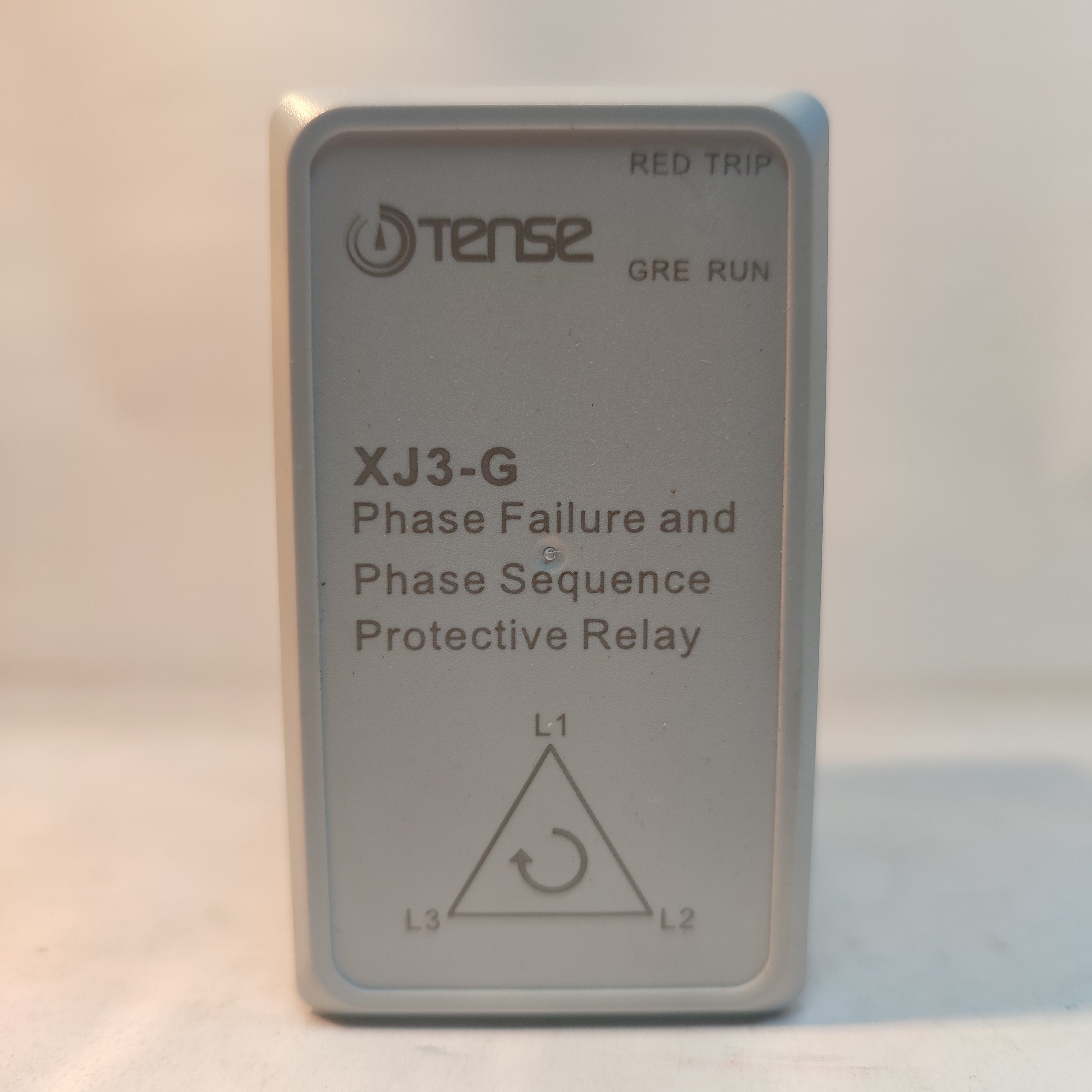

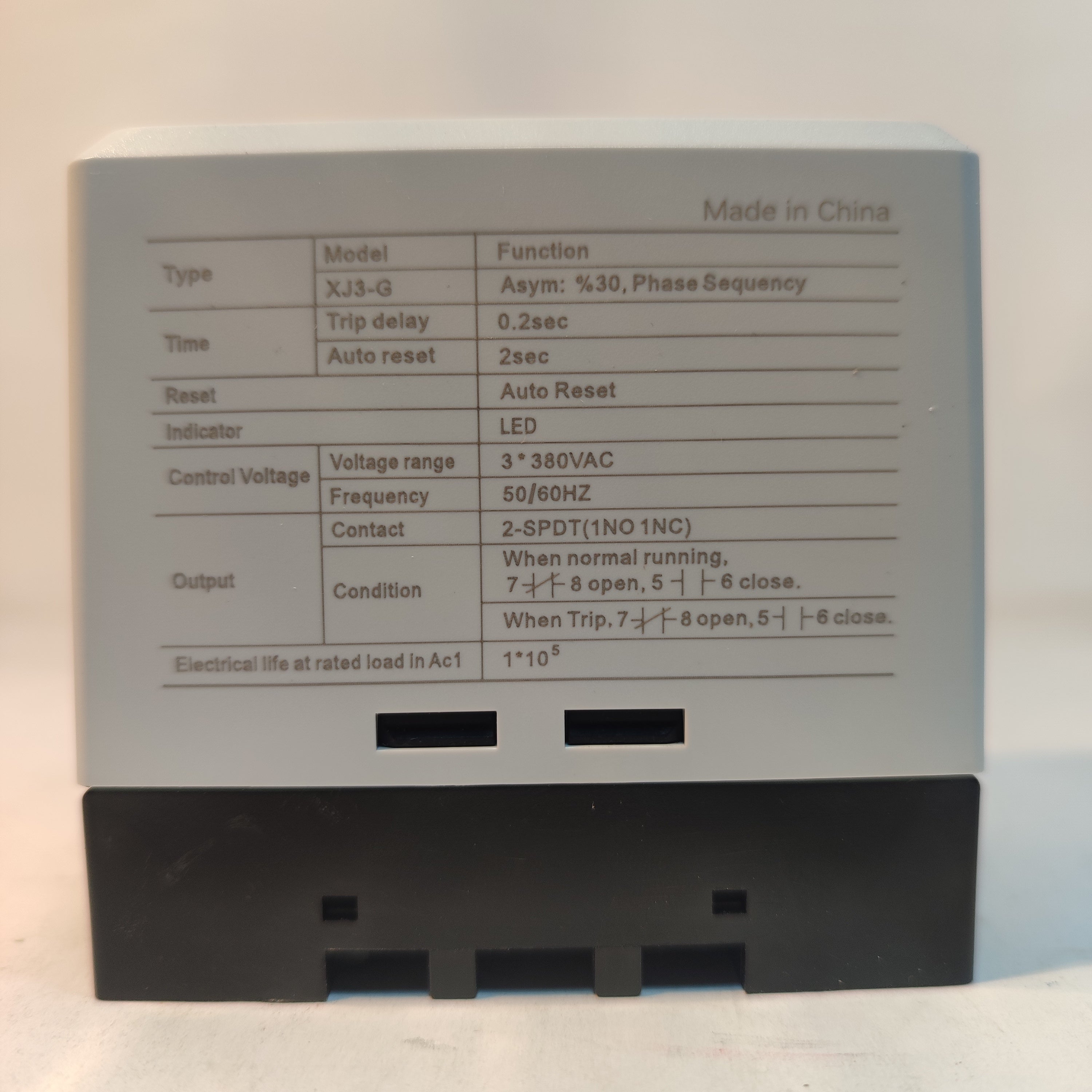

Tense XJ3-G Phase Sequence Relay Pakistan Protect your three-phase motors from wiring mistakes and bad grid conditions with the Tense XJ3-G phase sequence relay.  Simple design makes setup quick for electricians and panel builders in Pakistan today. XJ3-G is self-powered from the measured lines and fits standard 35 mm DIN rail. An adjustable delay filters brief dips at startup. Clear LEDs show status and faults at a glance. A robust SPDT output contact interlocks your control circuit for pumps, compressors, fans, and conveyors. Features of Tense XJ3-G Phase Sequence Relay Pakistan: Detects phase sequence, loss, reversal and unbalance Adjustable trip/restart delay to prevent nuisance tripping SPDT relay output for easy control interlocking LED status indicators; quick fault diagnosis Compact 35 mm DIN‑rail mounting Specifications: Model: Tense XJ3‑G (Phase Monitoring Relay) Supply/Measure: 3×380–415 V AC, 50/60 Hz (self‑powered) Output Contact: 1× SPDT relay, 5A at 250 V AC (typ.) Settings: adjustable delay and unbalance sensitivity Mounting/Terminals: DIN‑rail 35 mm, screw terminals, LED status Uses: Protecting pumps, fans and blowers Compressors and HVAC chillers Elevators/hoists and conveyors CNC/industrial control panels General three‑phase motor protection
