Temperature control is a process in which change of temperature of a space (and objects collectively there within), or of a substance, is measured or otherwise detected, and the passage of heat energy into or out of the space or substance is adjusted to achieve the desired temperature.
Main Features:
Temperature measuring and controlling
Cooling and heating
Compressor time delay
Temperature calibration
Specification:
Mounting size : 71(L)X 29(W)mm
Product size : 83.5(L)X 40.5(W)X 63(D)mm
Technical Parameters:
Power supply: 220VAC-240VAC,50Hz~60Hz
Relay output capacity: Compressor 10A/220VAC; Rated resistant loading 8A
Temperature measuring range: -50 °C ~ +70 °C
Resolution: 1 °C
Accuracy:±1 °C ±0.5 digit
Operating temperature: -10 °C ~ + 60 °C
Package Includes:

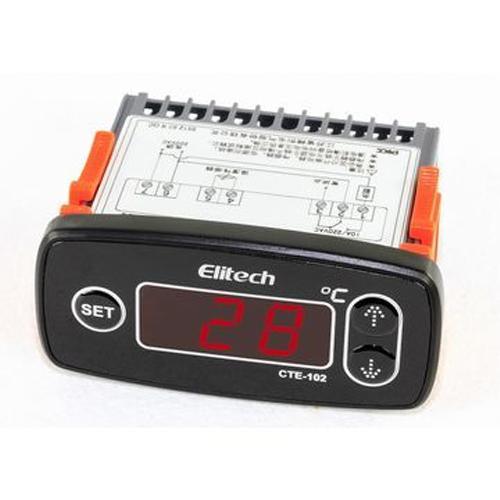

1 x CTE-102 Digital Temperature Controller
