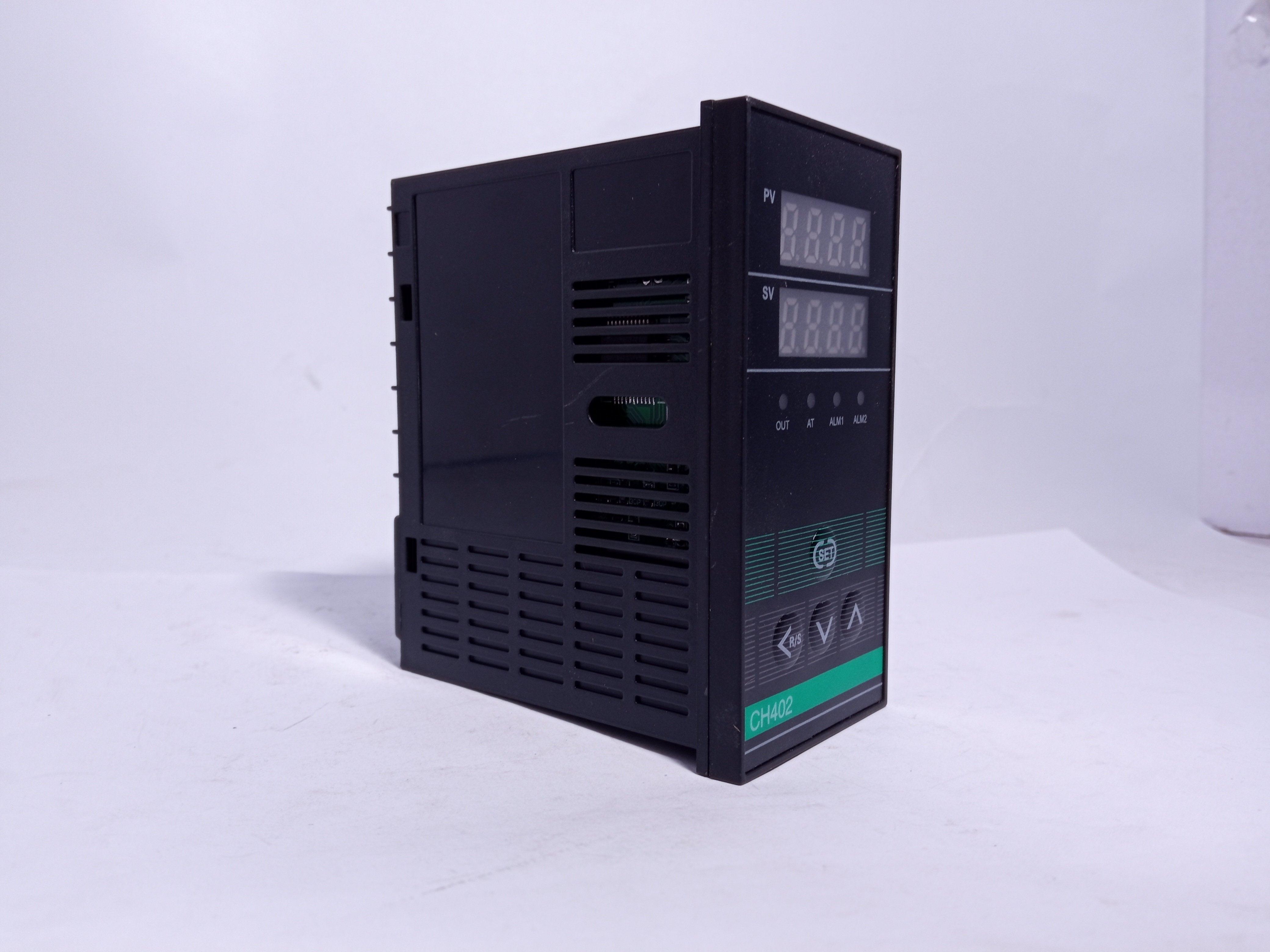

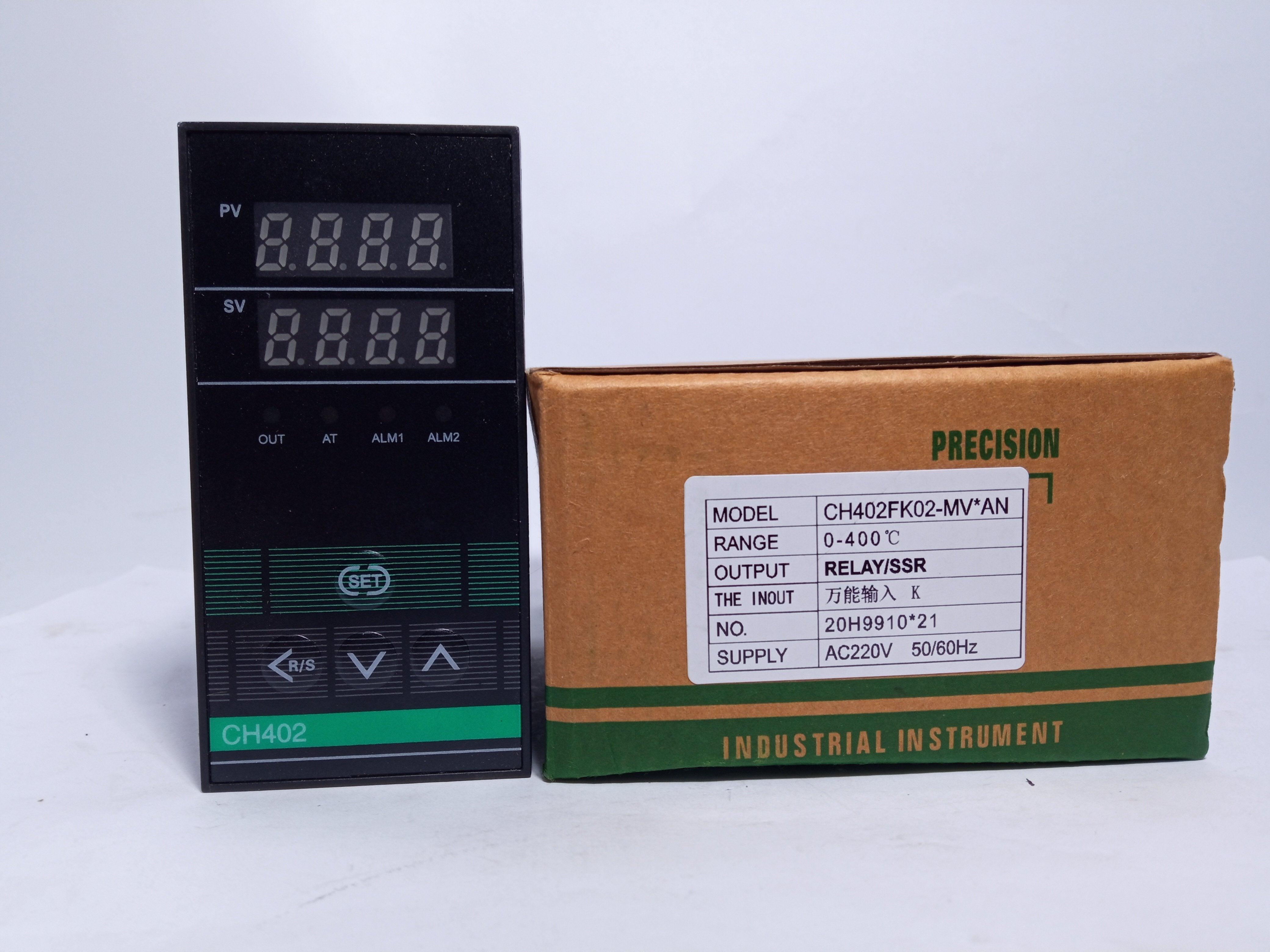

Temperature Controller CH402 FKo2 in Pakistan

A temperature controller is a device used to hold the desired temperature at a specified value. ... If it falls below the set temperature , it sends a signal to activate the heater to raise the temperature back to the setpoint. Thermostats are also used in refrigerators. Features: Selectable input from panel(TC,RTD, Analog) PID, Initial power-up overshoot suppression function Super large and bright LED Display High Measuring accuracy, 0.2%F.S Wide range of power supply 85~265VAC SSR drive/Relay/4-20mA/Triac output Dual Line 4 digits display RS-485, 4-20mA Re-Transmission optional Decimal points for all input signals C or F display selected at the user’s discretion Alarm standby function integrated Output graphic bar indication Soft-start function(analog output only) Specifications: Place of Origin : China Model Number : CH-402FK02-MV*AN Usage: Industrial Theory : Temperature Controller Accuracy :0.3%F.S Temperature range :-200~1300 Size : 48mm*48mm, 48mm*96mm, 72mm*72mm, 96mm*96mm I nput : Universal input Output : SSR Drive,4-20mA, Realy,0-10Vdc Alarm : Maximum 2 alarms Communication: RS-485 communication Re-transmission : PV Re-transmission Housing : Black ABS, fire retarded Certs : CE certs Control mode: PID, ON/OFF Display : LED, C, or F selectable Package Includes: 1 x Temperature Controller CH402 FKo2 Facebook Instagram Pinterest
