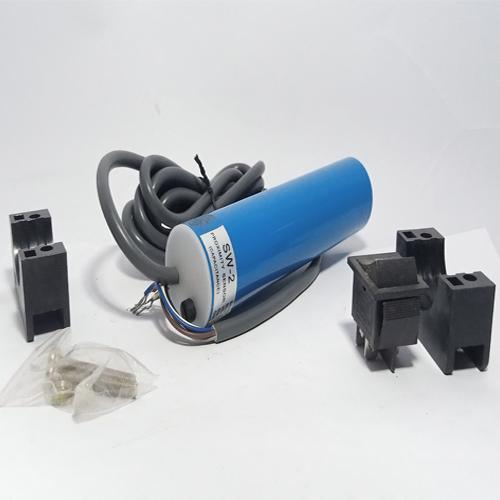

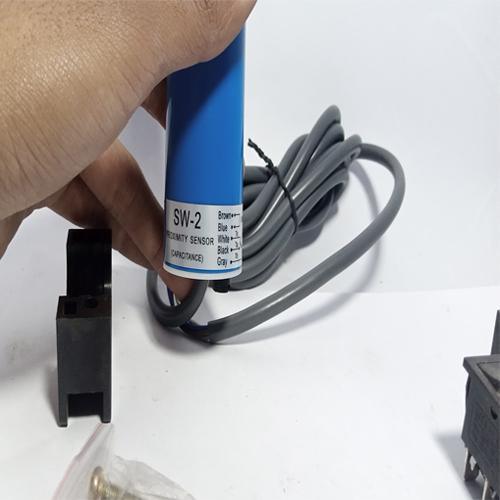

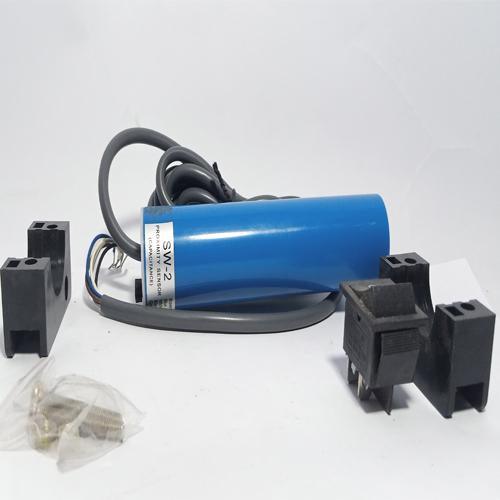

SW-2 Capacitive Proximity Sensor in Pakistan

The SW-2 proximity sensor is an electronically controlled switch activated by most materials. The use of electronic rather than mechanical switches ensures reliability, particularly as the electronics are completely sealed, which gives maximum protection against humidity, dust, and the like. Features: The SW2 feed sensor can replace any mechanical feed micro switch in the hopper, silo, and last feeder. The SW2 feed sensor microprocessor gives the unit unparalleled performance in sensitivity, time delay accuracy, ease of setup, and a wide range of working temperatures. Two colored led indicator lights display the current status. Specifications: New Proximity Switch SW-2 feeding Sensor for broiling feeding line Power: 90VAC-240VAC Frequency: 45-65Hz Consumption : 1VA Maximum voltage relay switch : 220/240 VAC Relay maximum power : 5A at cos phi = 1 2A at cos phi = 0.8 0.35A at cos phi = 0.4 Activate distance: According to raw material 0-15mm Delay time : 0-2 hours Protection grade: IP67 Operating temperature of the surrounding: -20 - 75 centigrade The storage temperature of the surrounding : -30 - 85 centigrade Weight: 280g Relay output Package Includes: 1 x SW-2 Capacitive Proximity Sensor Facebook Instagram Pinterest
