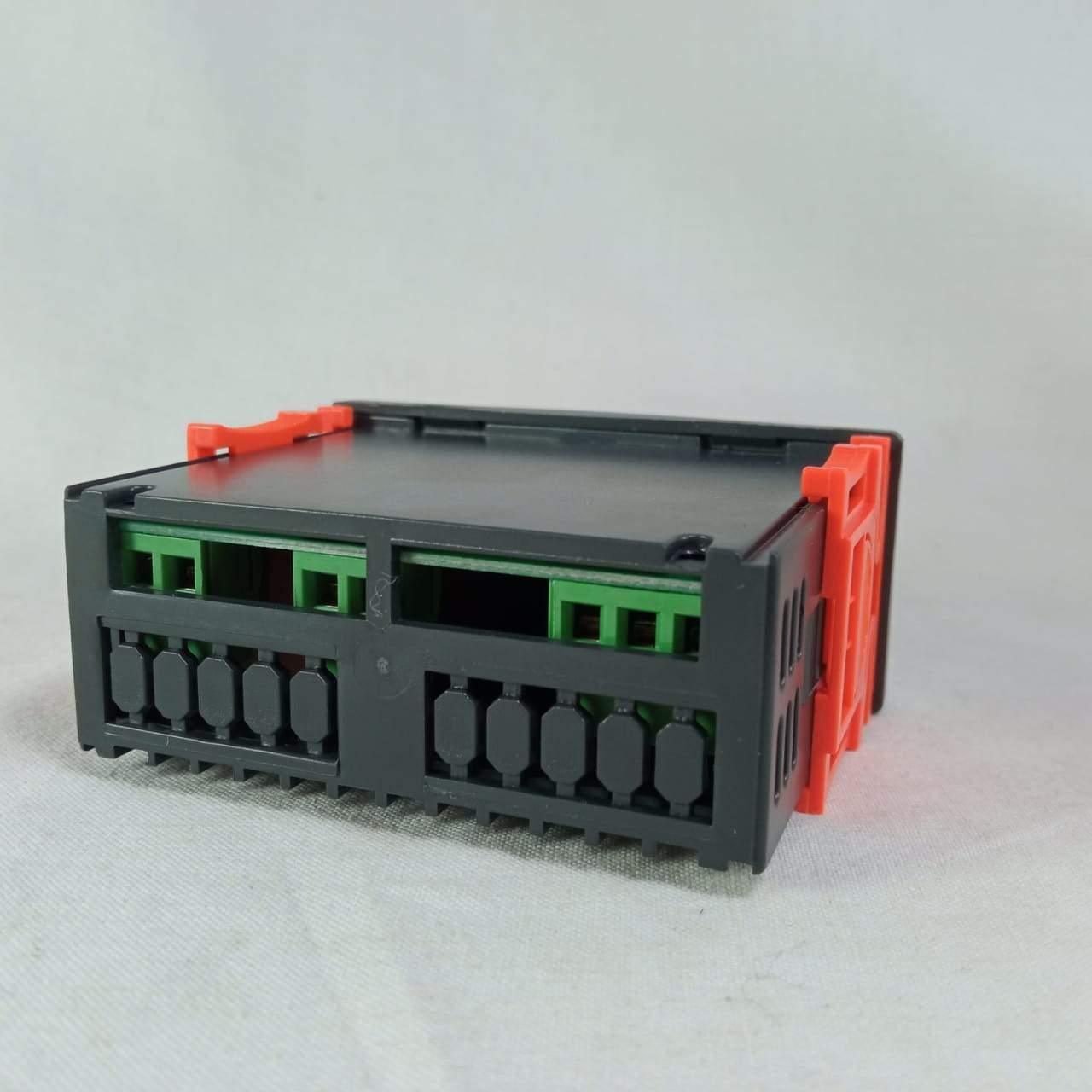

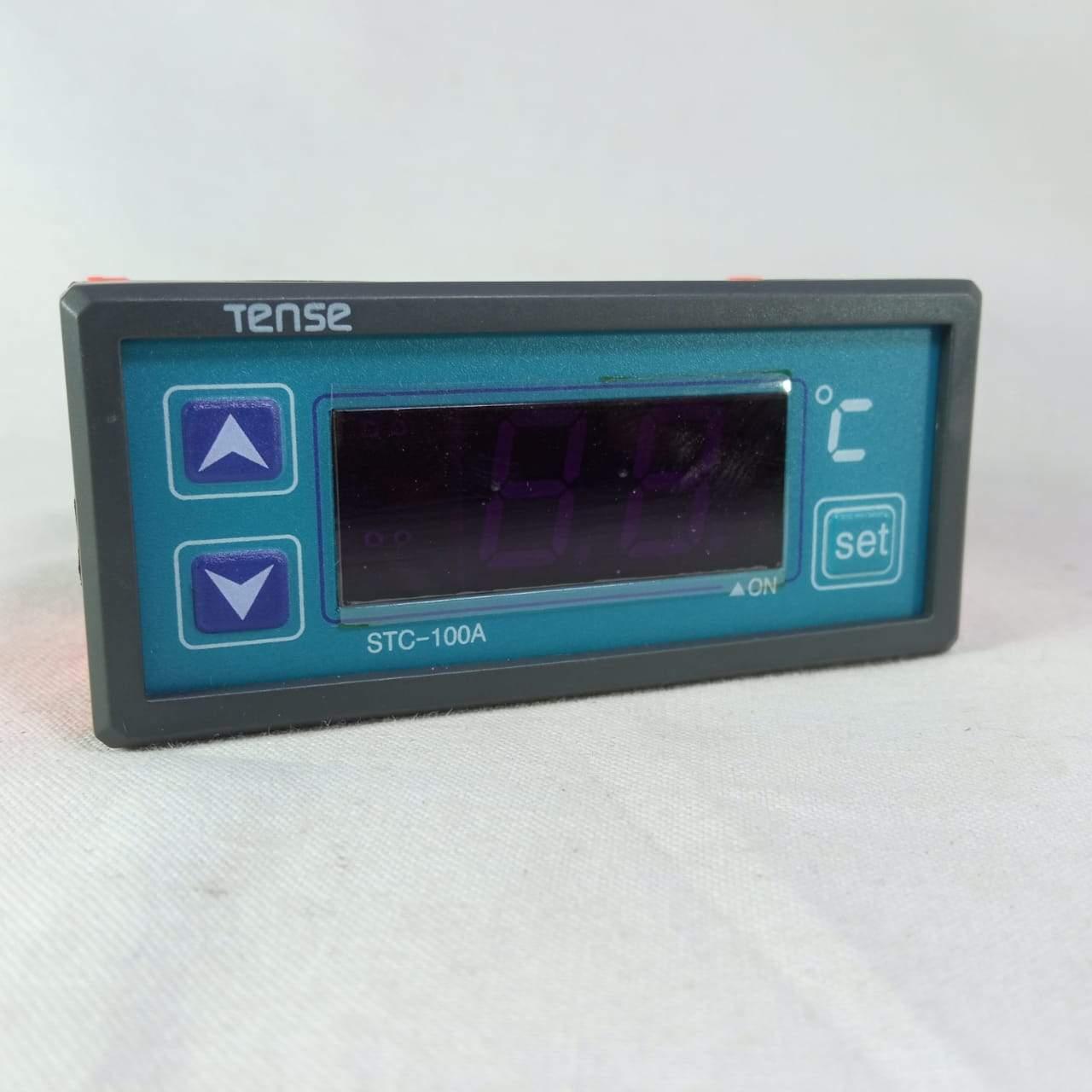

The TENSE STC-100A / Digital Electronic Thermostat and Temperature Controller Firstly , it enables precise temperature management. Consequently , it suits both heating and cooling applications. Moreover , it features easy-to-read LED display. Therefore , monitoring is clear and simple. Furthermore , it offers high-accuracy sensing. In addition , it includes temperature calibration functionality. Yet , it is highly affordable and compact. Hence , it fits diverse installations easily. Similarly , it uses a standard NTC sensor.
Features:
Cold, hot output mode is optional. Can be used in the chiller.
Show changes in to control temperature.
Temperature high and low limits set.
Compressor delay protection.
Suitable for all kinds of cold storage, refrigerator, water chiller, seafood machine, small heating equipment, etc.
Specification:
Model : STC-100A
Color :Grey
Relay capacity: 10A (0.5HP) / 220VAC
Temperature measuring range: -40 ~ 99 ° C
Temperature control range : -40 ~ 99 ° C
Resolution : 1 ° C
Accuracy: ± 1 ° c ± 0.5 digits
Ambient requirements : temperature: 0-60 ° c humidity: 20% -85% (no condensate)
Consumption : ≤ 3W

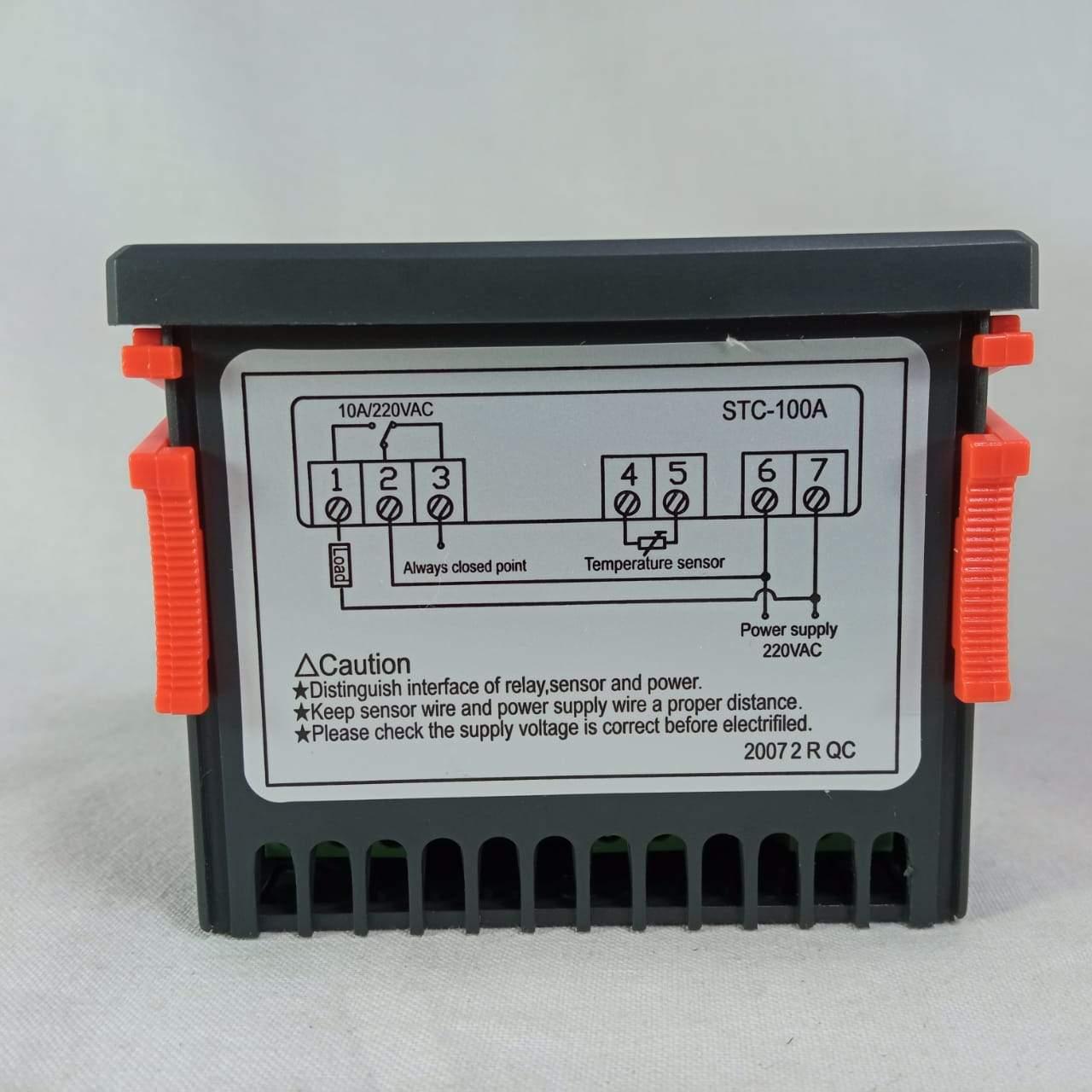

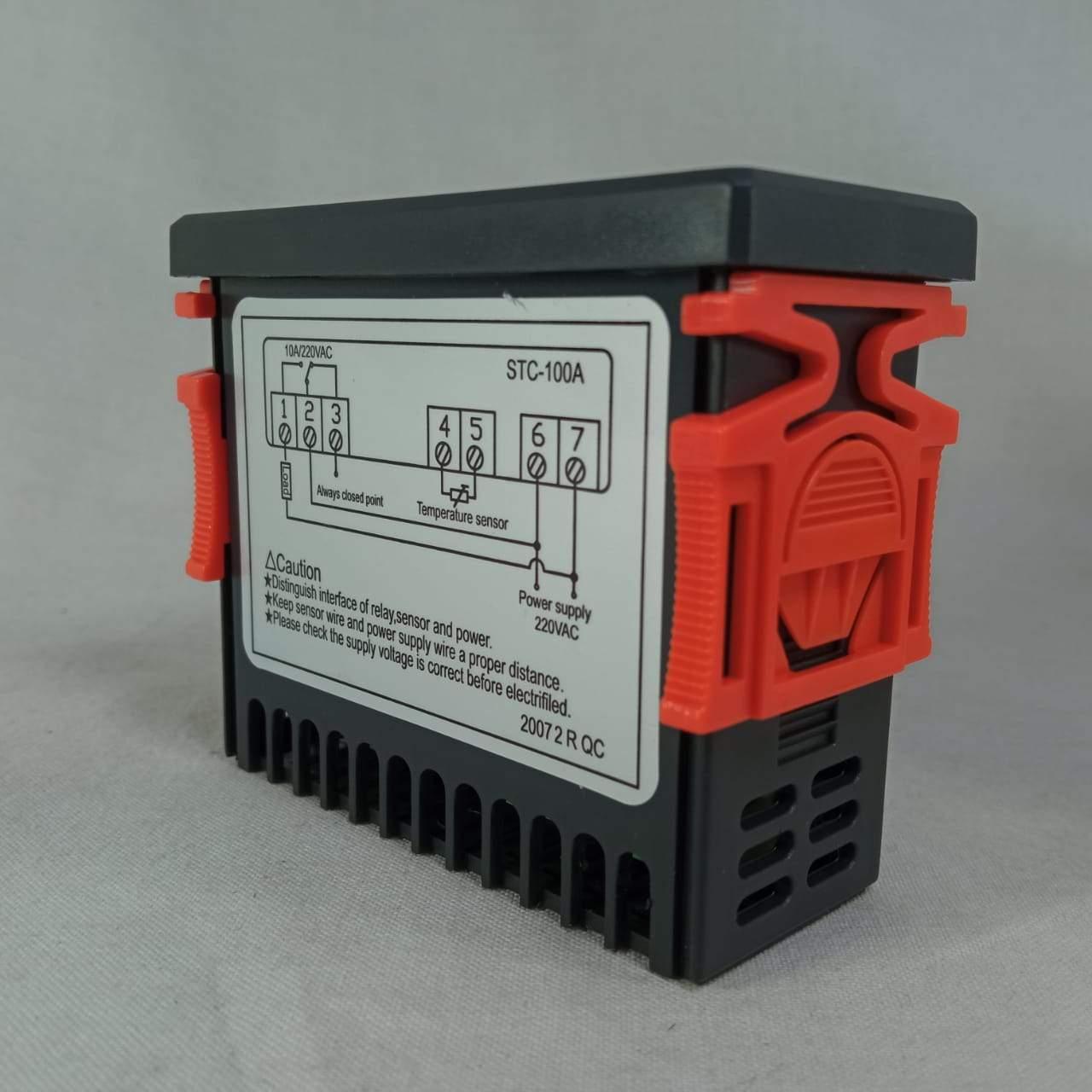

Input: 1 NTC sensor
Sensor length: 2M (include the probe)
Delay time in case of sensor error : 1 min
Front panel security level : IP54
Storage temperature: -30 ° c-75 ° c
Front panel size : 77 (L) x34.5 (W) mm / 3x1.35in
Installation hole size : 71 (L) x29 (W) mm
Item size : 77 (L) x34.5 (W) x62mm (D) /3x1.35x2.42in
Package Include:
1 x Electronic Thermostat STC-100A, Temperature Controller
