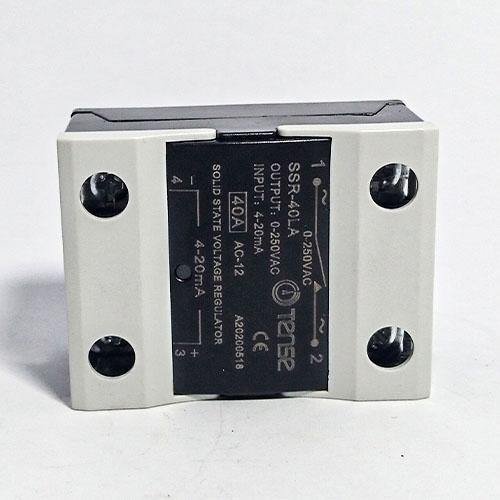

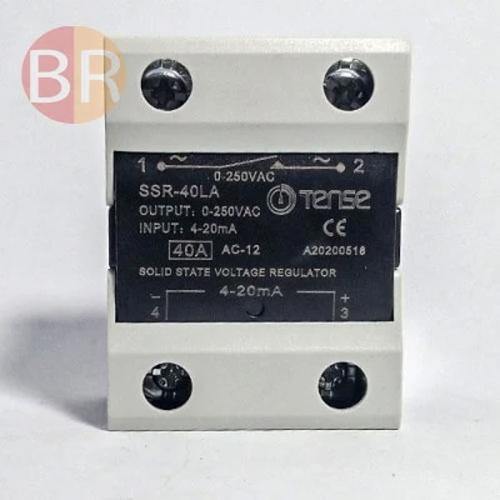

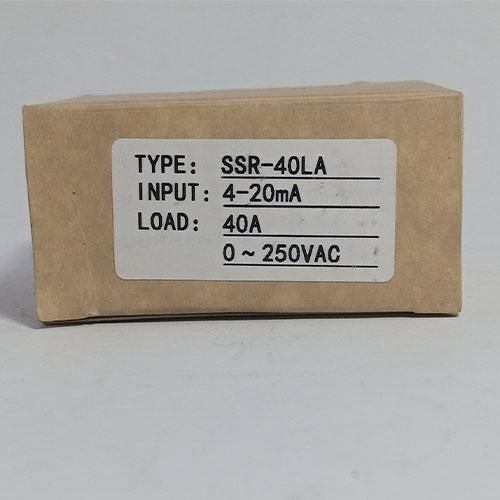

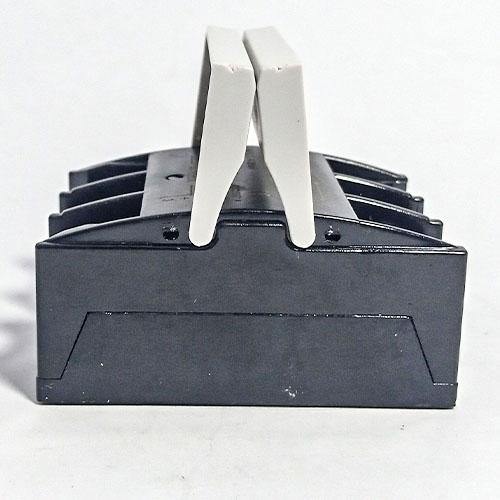

Solid State Relay Voltage Regulator SSR-40LA 4 to 20mA ssr Tense in pakistan - SSR-80LA

SSR solid state relay uses inflaming retarding engineering plastic shell, epoxy resin encapsulation, and screw terminal connection. This series of solid-state relays have high structural strength, impact resistance, and strong resistance to viability. The low input drives current makes it convenient to connect with a computer terminal and various digital programmable interface circuits. https://youtube.com/shorts/WmdY0t-lYm8? Features: Reliable SMT technology High ultra insulation resistance over 50M?/500V DC High dielectric over 2.5KV Low EMI/EFI & surge by zero cross-trigger method High surge current over 410A/one cycle (60Hz) High surge voltage duration by the snubber circuit Specification: Model: SSR-40 DA Control Mode: DC-AC Load Voltage: 24-380VAC Load Current: 40A Control Voltage: 3-32VDC Control Current: DC3-25mA Working voltage: 250V On voltage: ?1V One-off Time: ?10ms Off leakage Current: ?2mA Installation Method: Bolt Fixed Working Indication: LED Solid State Relay Fotek SSR-40 DA Package Includes: 1 x Solid State Relay Voltage Regulator SSR-40LA (Tense)
