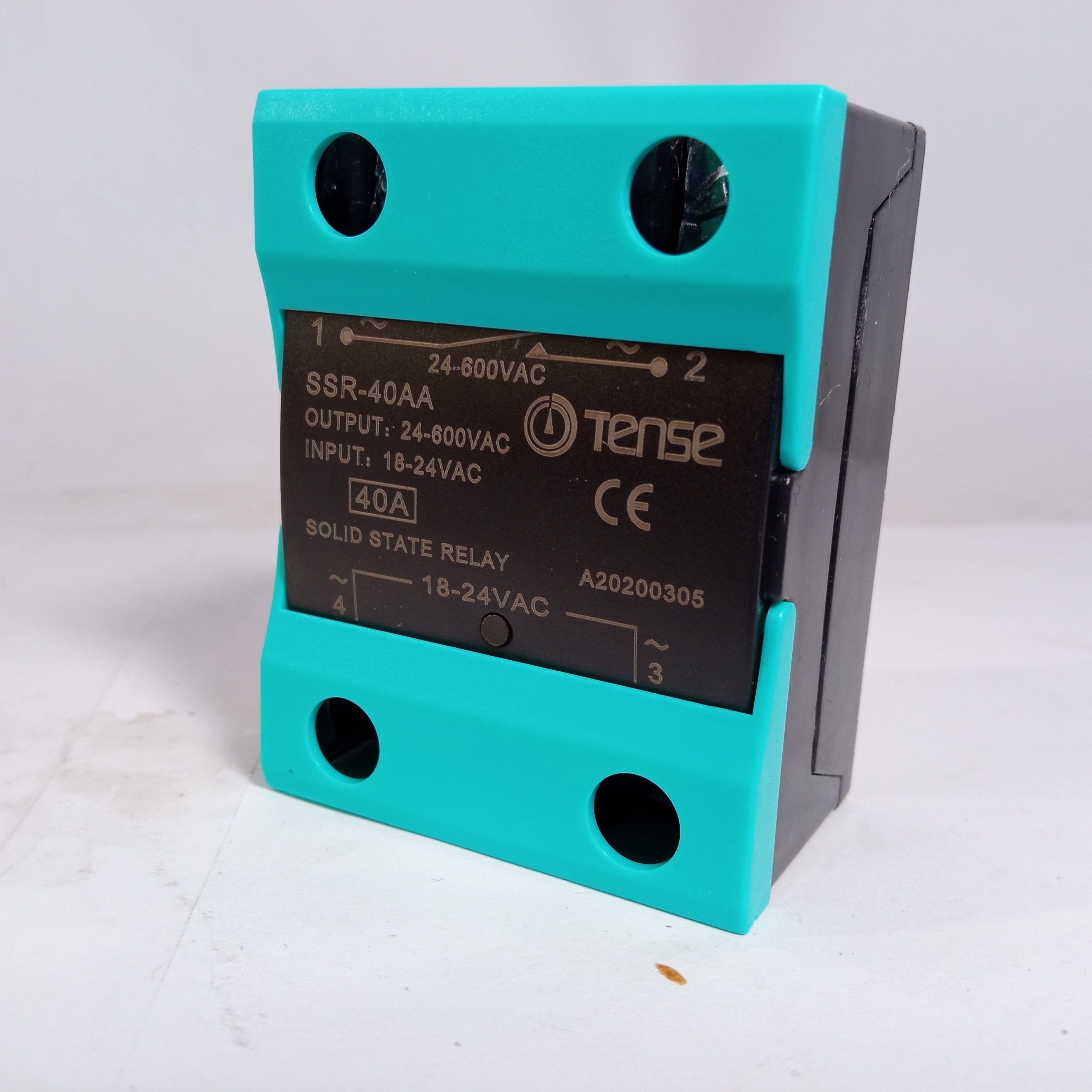

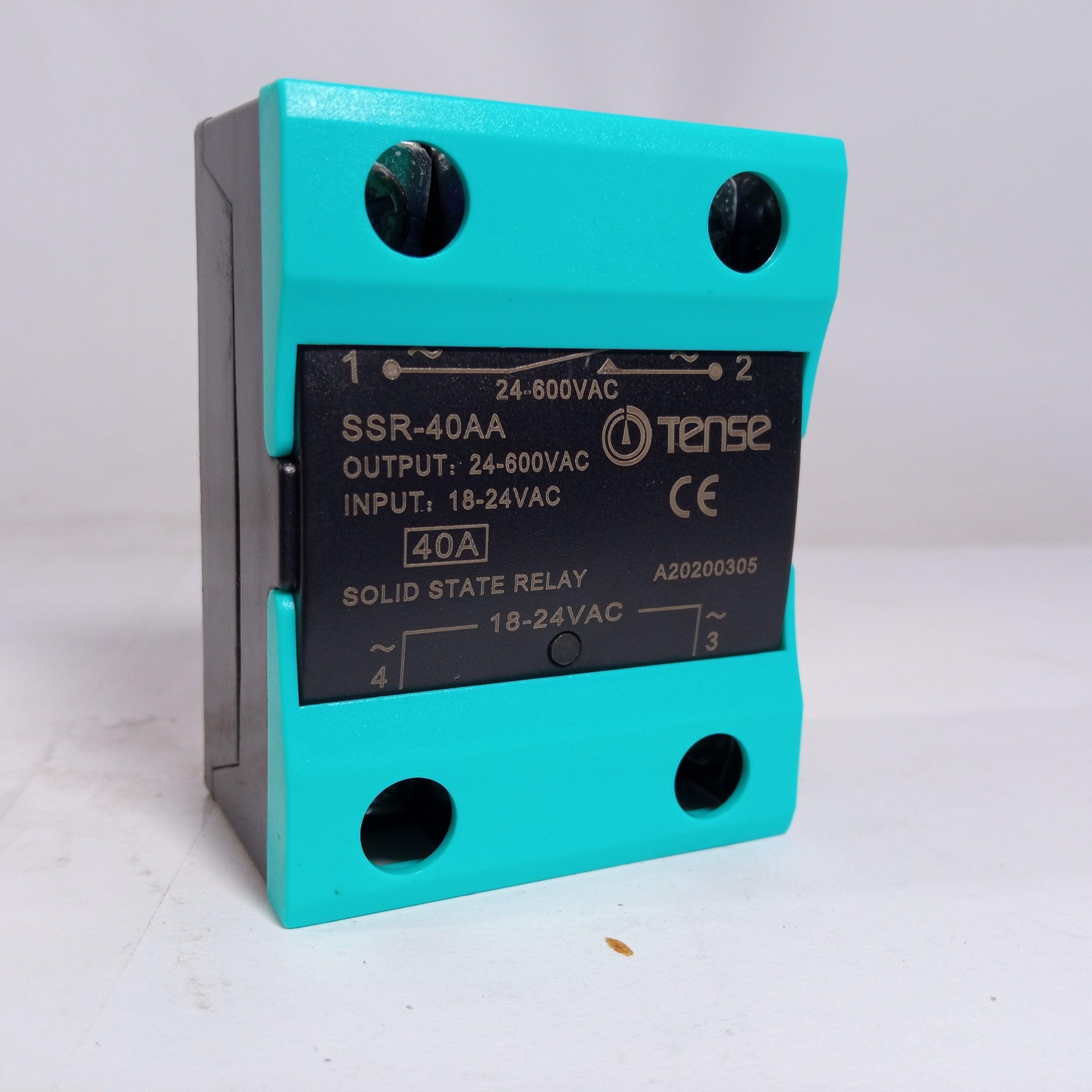

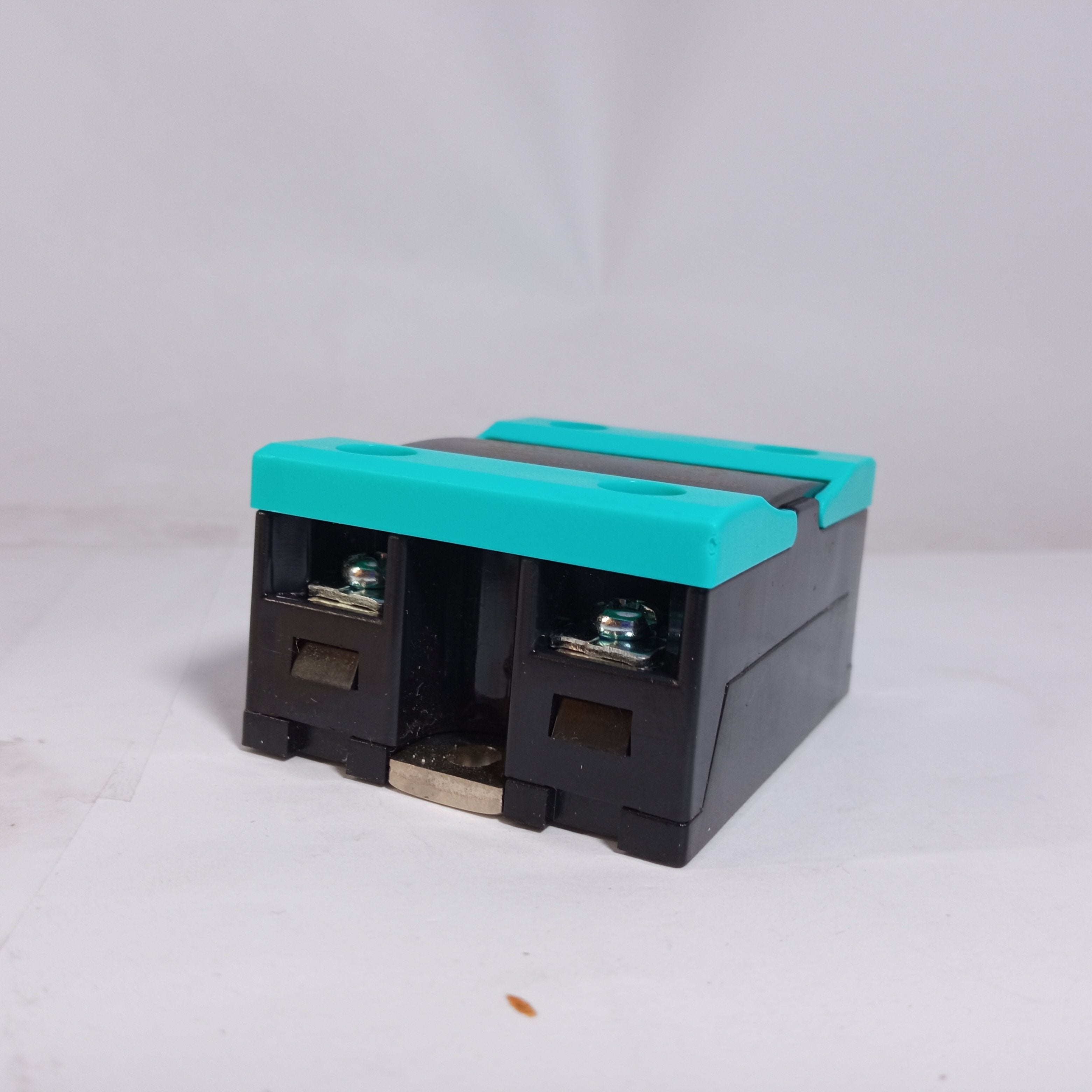

Solid State Relay SSR-40AA AC in AC out Tense in Pakistan - SSR-150AA

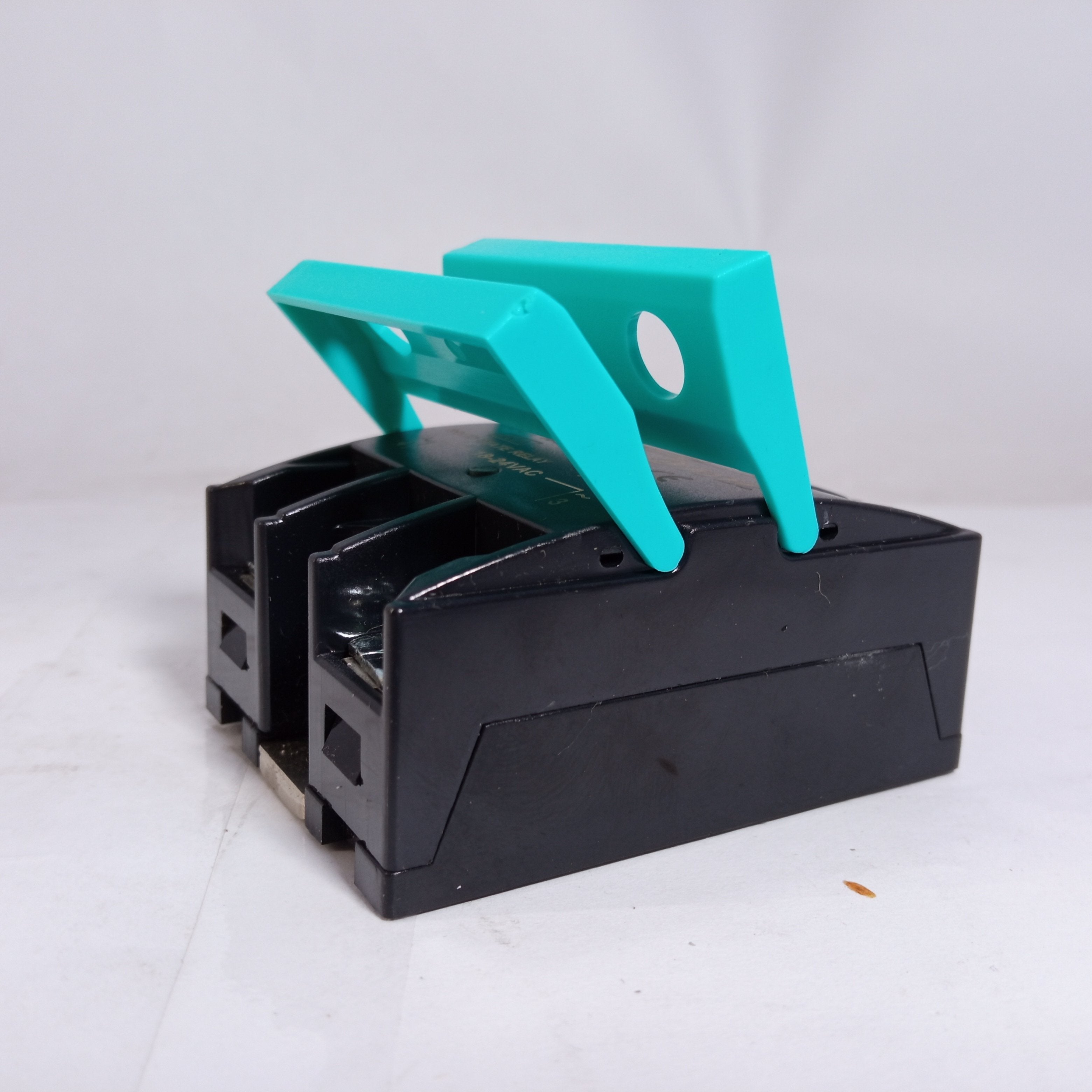

40A solid state relay (SSR) with 18 to 24VAC input features high structural strength, good impact resistance, and strong shock resistance. The SSR offers a reliable switching of the commercial and industrial loads, such as computer peripheral interface devices, printing machines, molding machines, food machines, packaging machines, and so on. Features: Built-in RC absorption Photoelectric isolation SCR output LED indicator for operation status Removable protective cover for safety Panel mount Zero-crossing switch type Specification: Input Control voltage range 18 to 24VAC Max. input current 15mA Must operate voltage 70V AC Must release voltage 50V AC Output Load voltage range 24-800V AC Peak voltage 800V AC Load current 40A to 150A Maximum off-state leakage current 2mA Maximum off-state time 10mS Maximum on-state voltage drop 1.5V General Type AC to AC, single phase Dimension L – W – H (mm) 57.4х44.8х28 Weight 135g Dielectric strength (input to output) 4000V Dielectric strength (input, output to the base) 2500V Operating temperature -20℃~ 80℃ Mount Panel Certification CE Package Includes: 1 x Solid State Relay SSR-40AA 18 to 24VAC (Tense)
