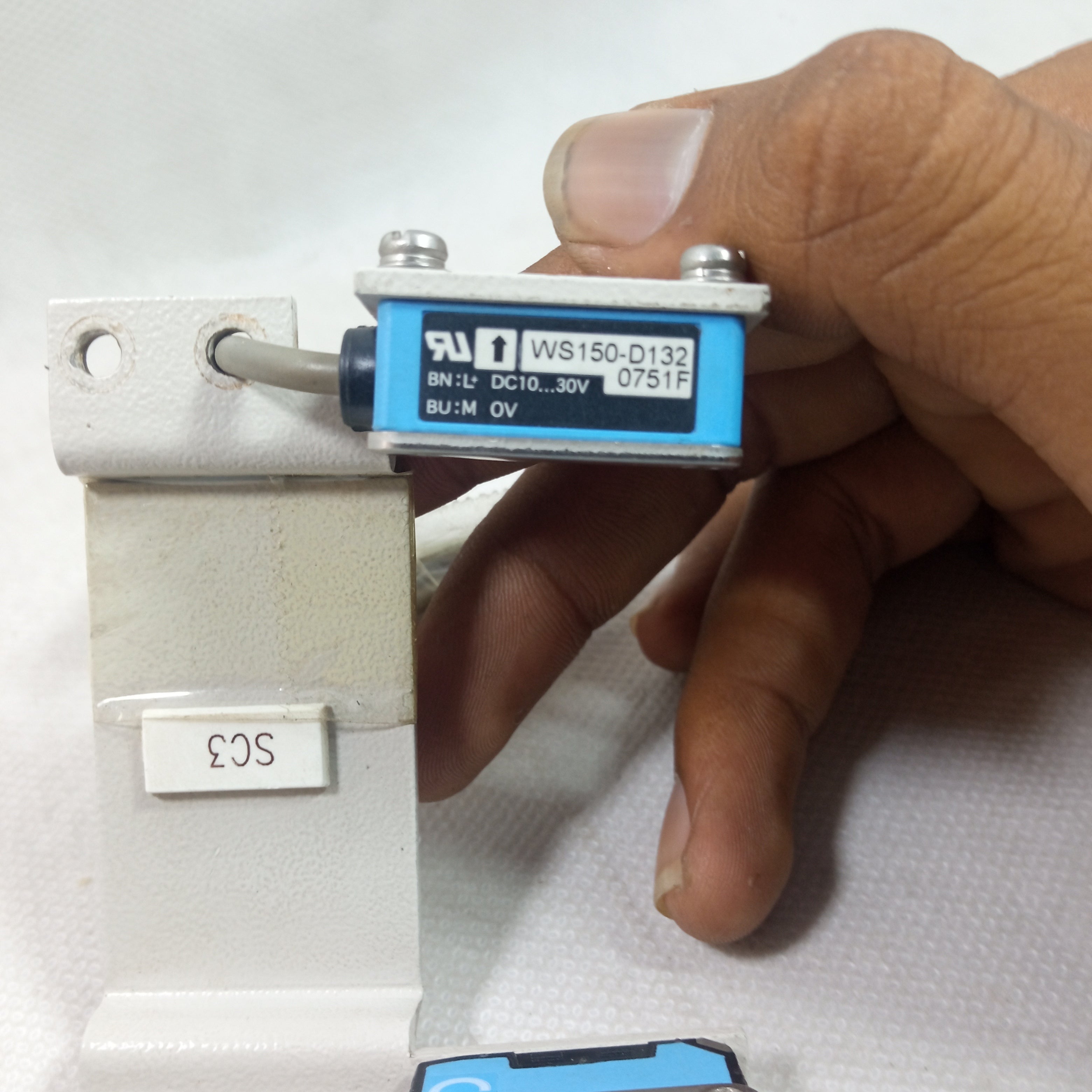

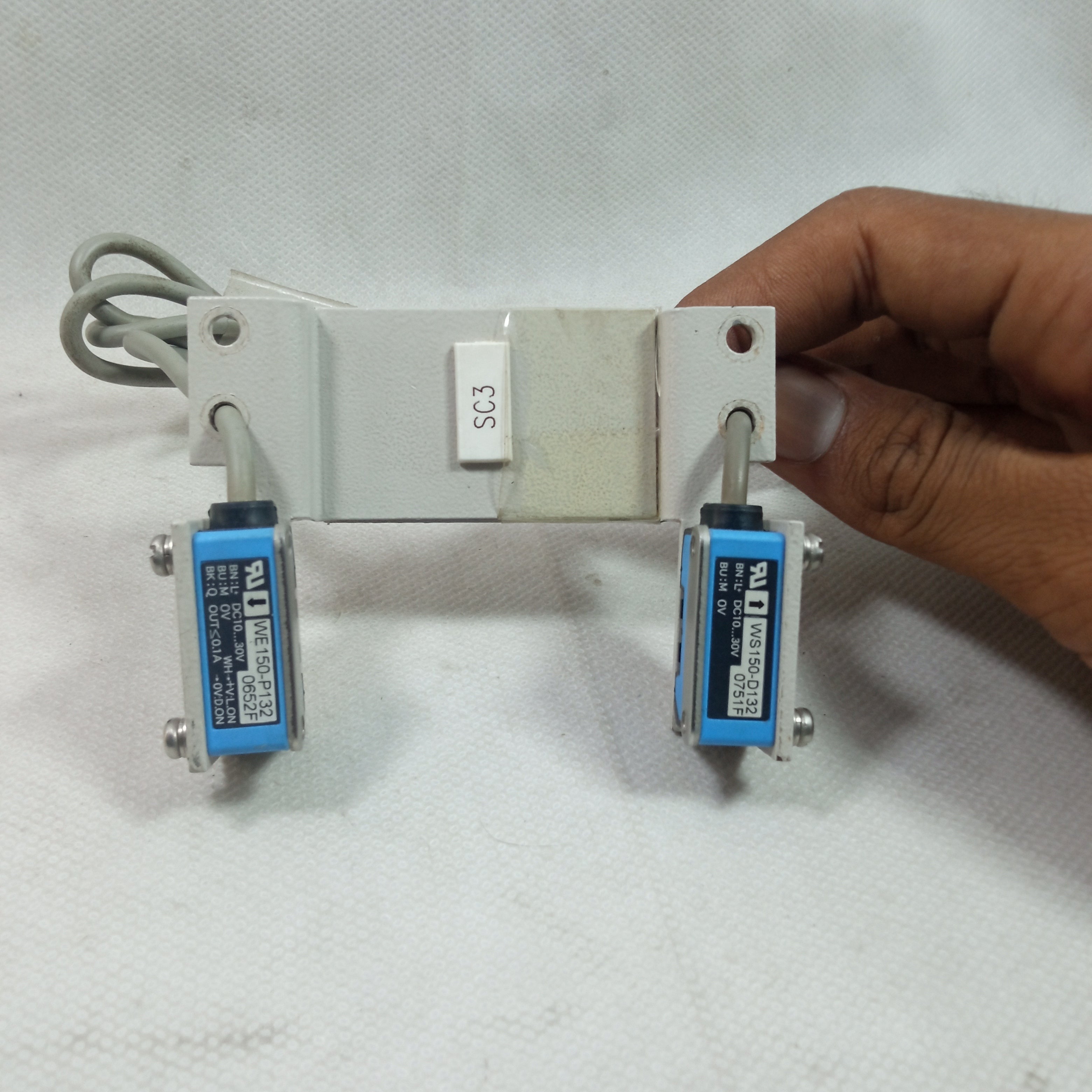

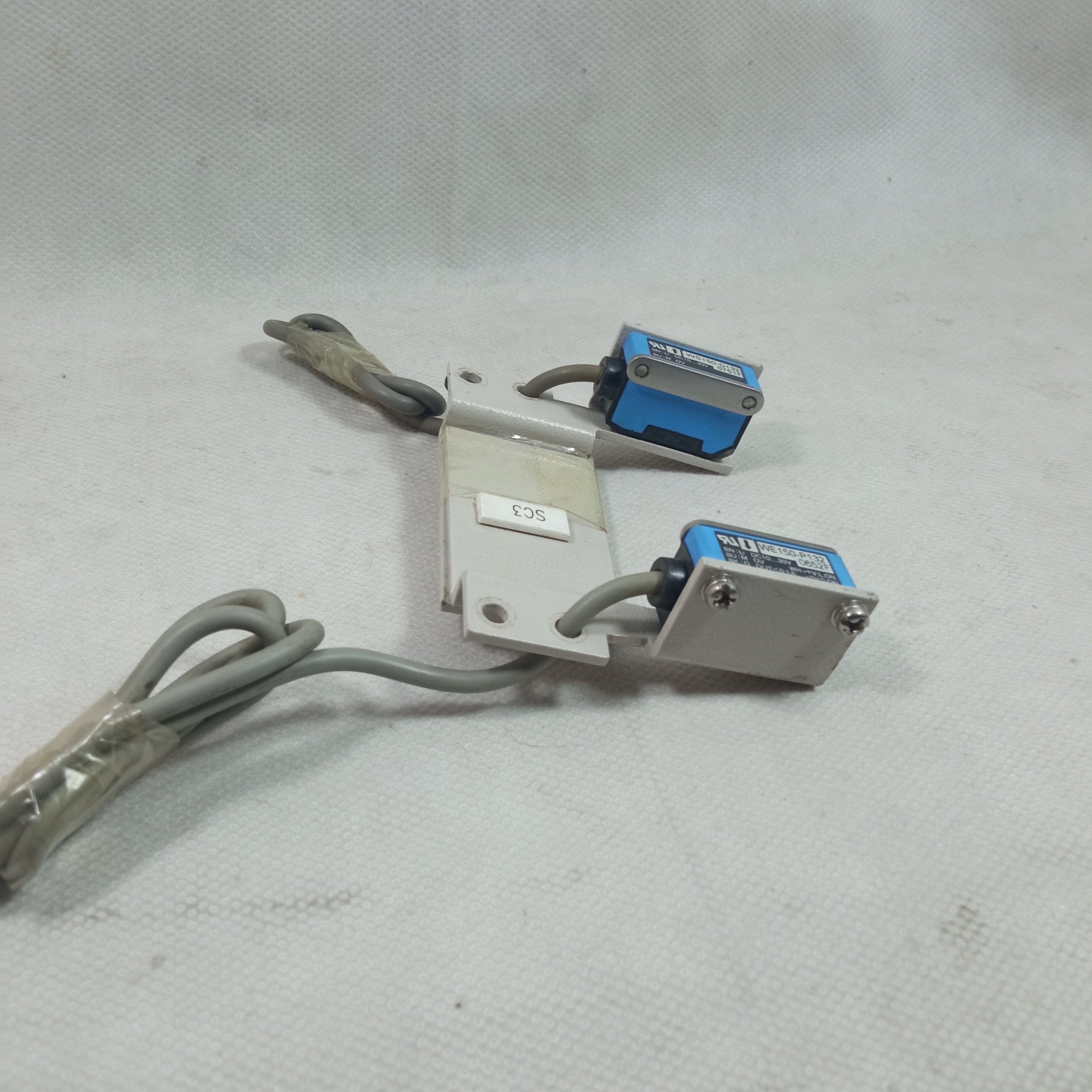

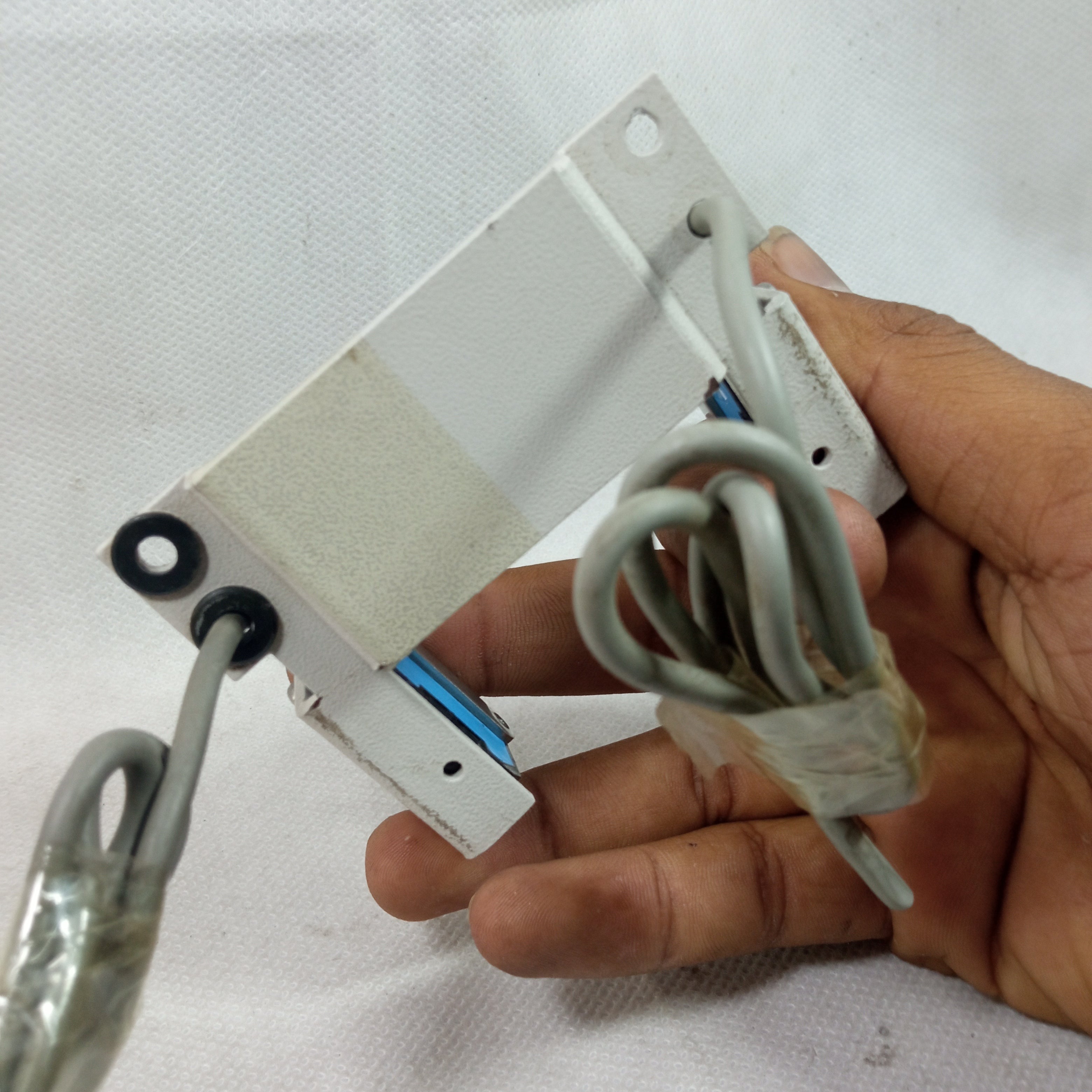

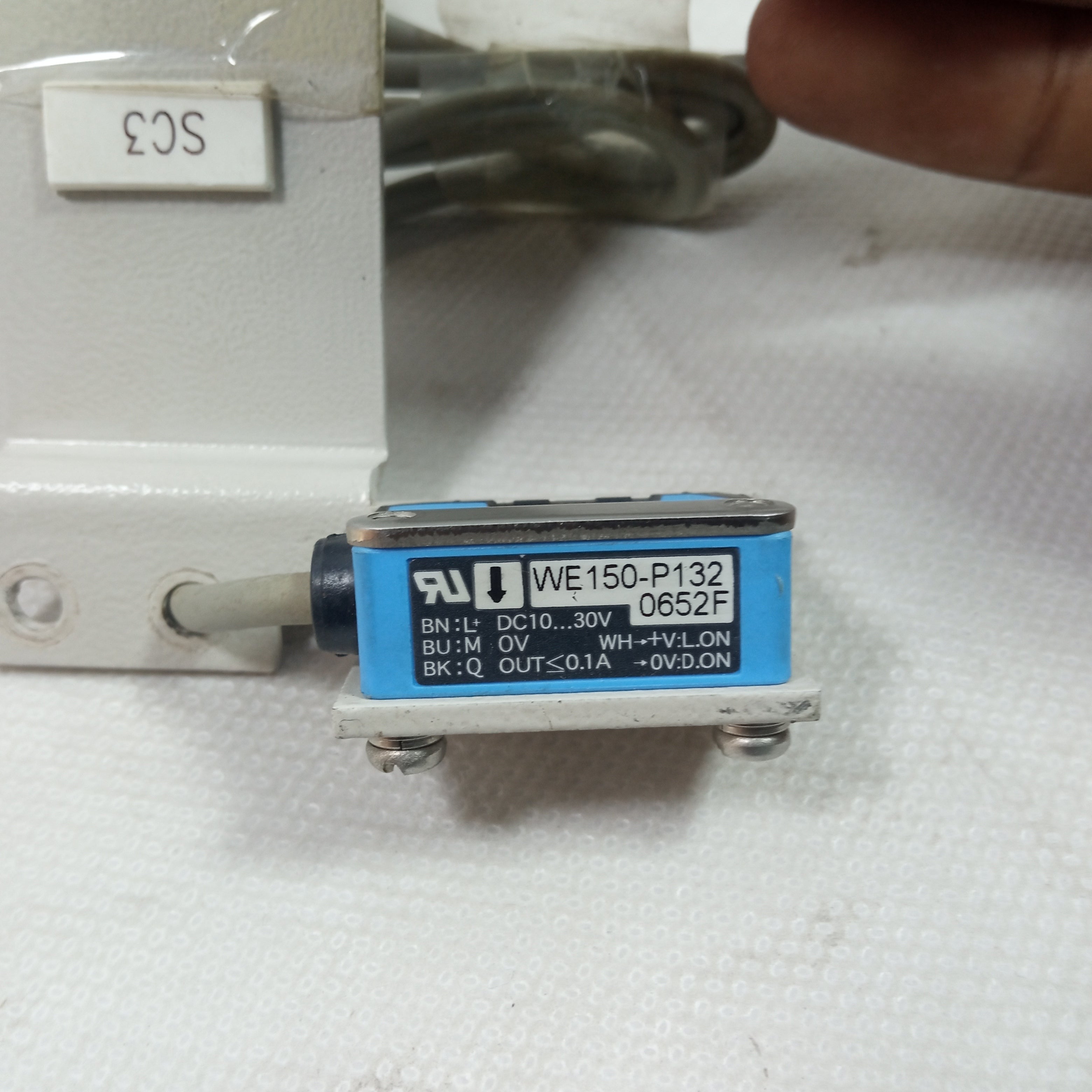

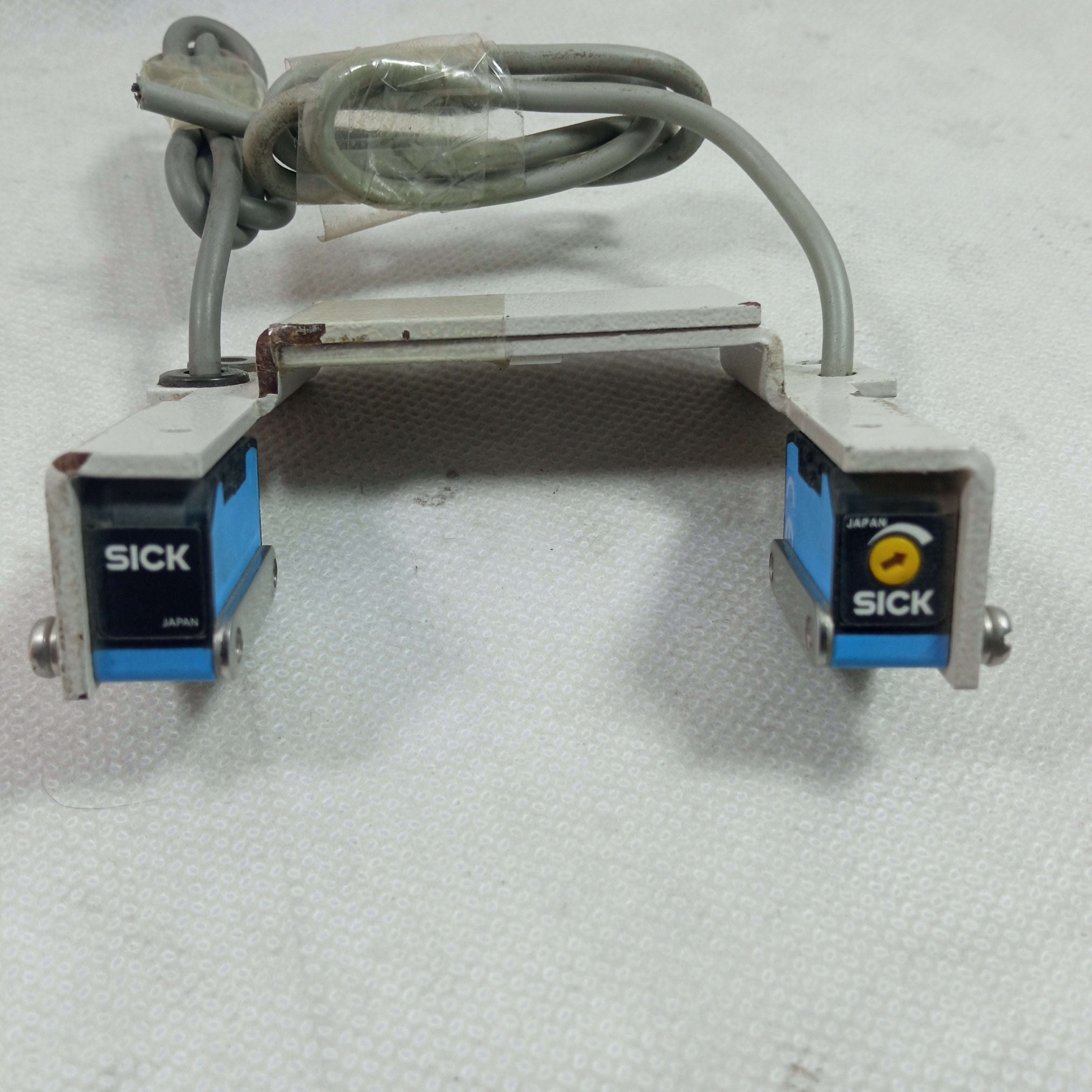

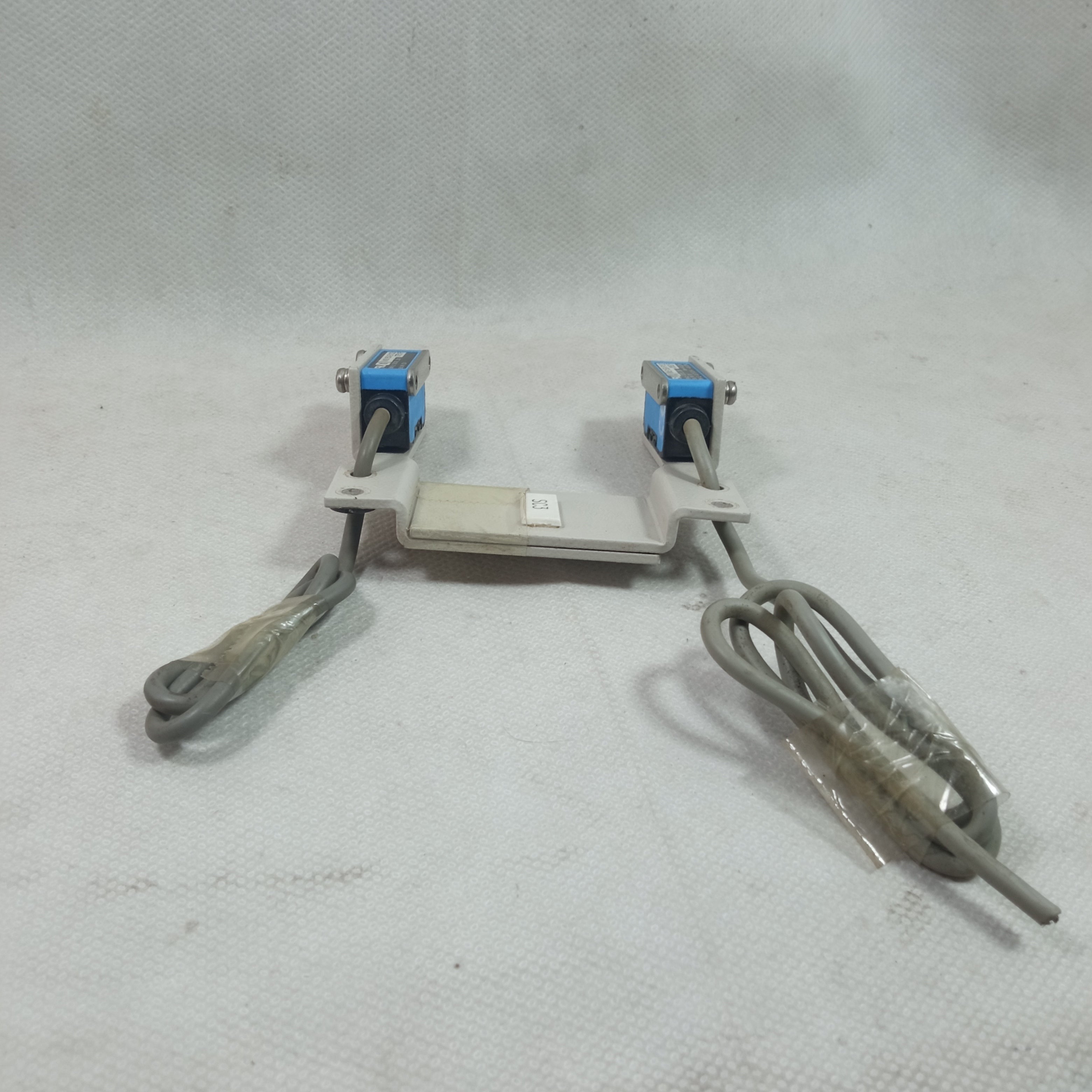

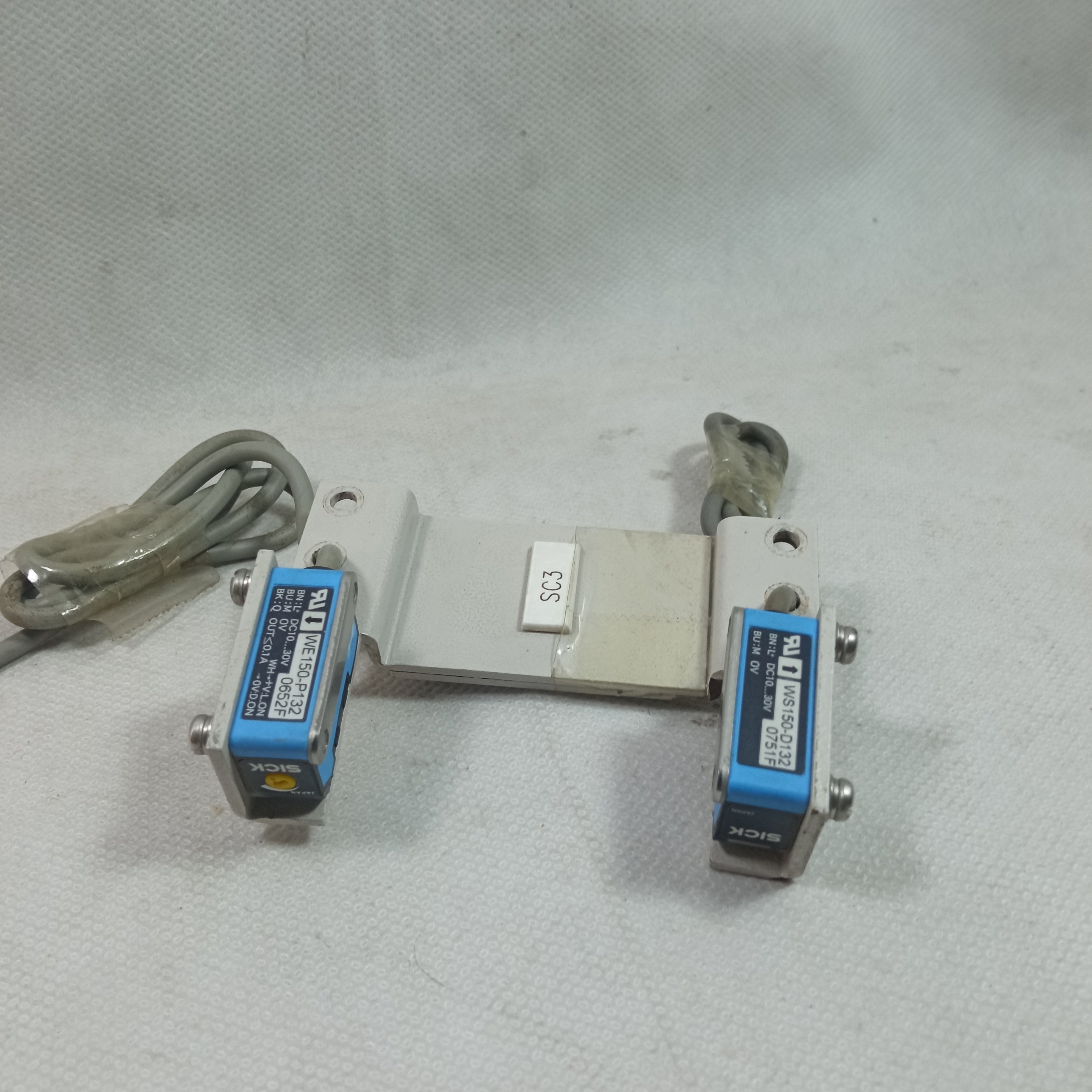

SICK WS 150-D132 WE 150-P132 THROUGH-BEAM PHOTOELECTRIC SENSOR used in Pakistan

The WS 150-D132 is a through-beam photoelectric sensor manufactured by SICK. SICK WS 150-D132 Through-Beam Photoelectric Sensor . The WS 150-D132 is a through-beam photoelectric sensor manufactured by SICK. Features: Manufacturer: SICK Type: THROUGH-BEAM PHOTOELECTRIC SENSOR Model: WS/WE150-P132 Set. Part No.: 6011030 Receiver model: WE150-P132 Sender model: WS150-D132 Specifications: Supply voltage: 10 … 30 V DC Power Consumption, sender (without load): 15 mA Power Consumption, receiver (without load): 20 mA Output current max.: ≤ 100 mA Ripple: ± 10 % Switching output: PNP Switching mode: Light/dark switching Switching mode selector: Selectable via L/D control cable Switching frequency : 1,000 Hz Angle of dispersion: 6° Angle of reception: 15° Sensing range max.: 0 … 4.4 m Response time (with resistive load): ≤ 0.5 ms Light source, type: Led, Visible red light Adjustment: Potentiometer, 270° Dimensions (W X H X D): 10 X 28 X 17.5 mm Weight: 44 g Connection type, Length: Cable, 4-wire, 2 m Ambient operating temperature: -25 … +55 °C Enclosure rating: IP67 Items supplied: BEF-W150-A Mounting bracket Package Includes: 1 x SICK WS 150-D132  WE 150-P132 THROUGH-BEAM PHOTOELECTRIC SENSOR
