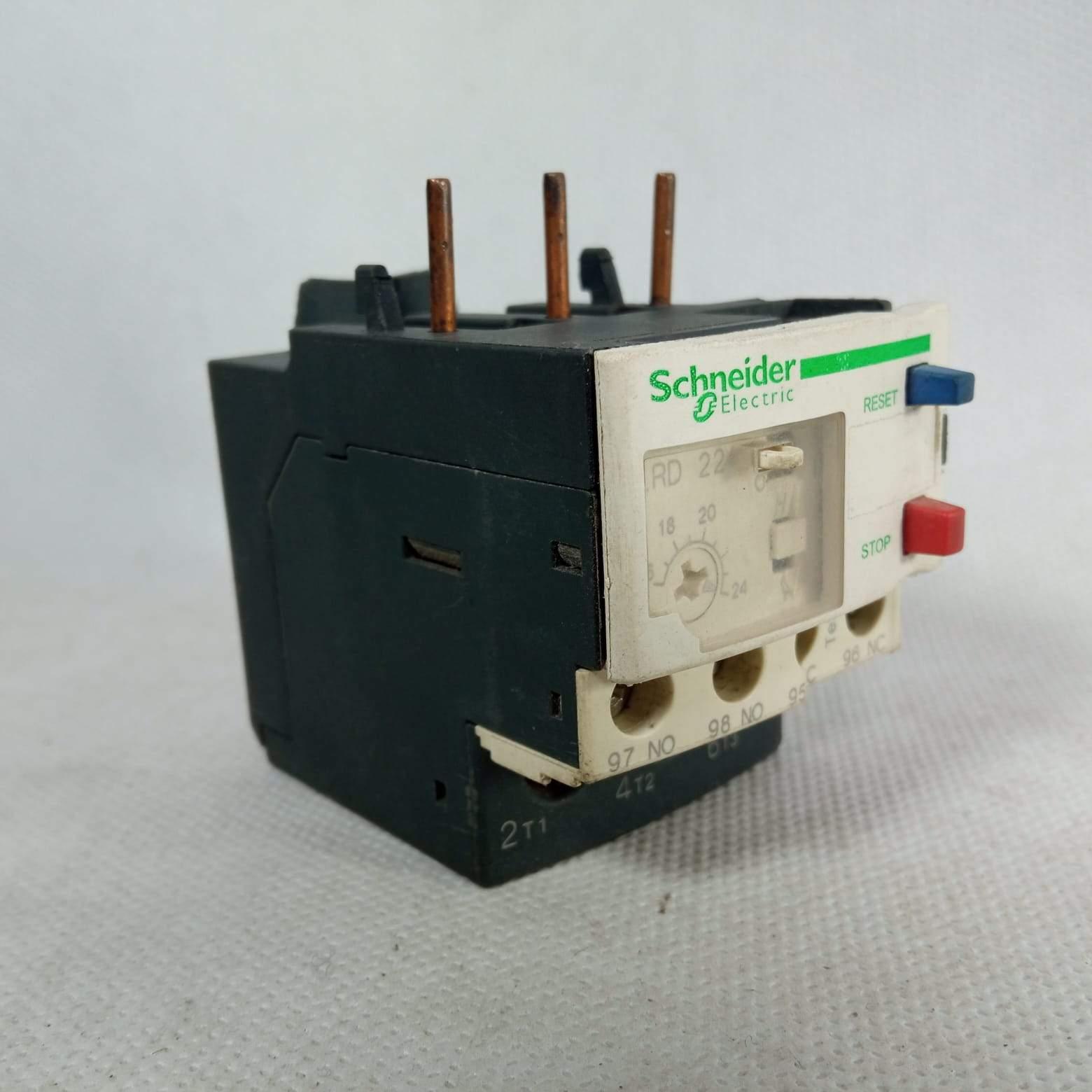

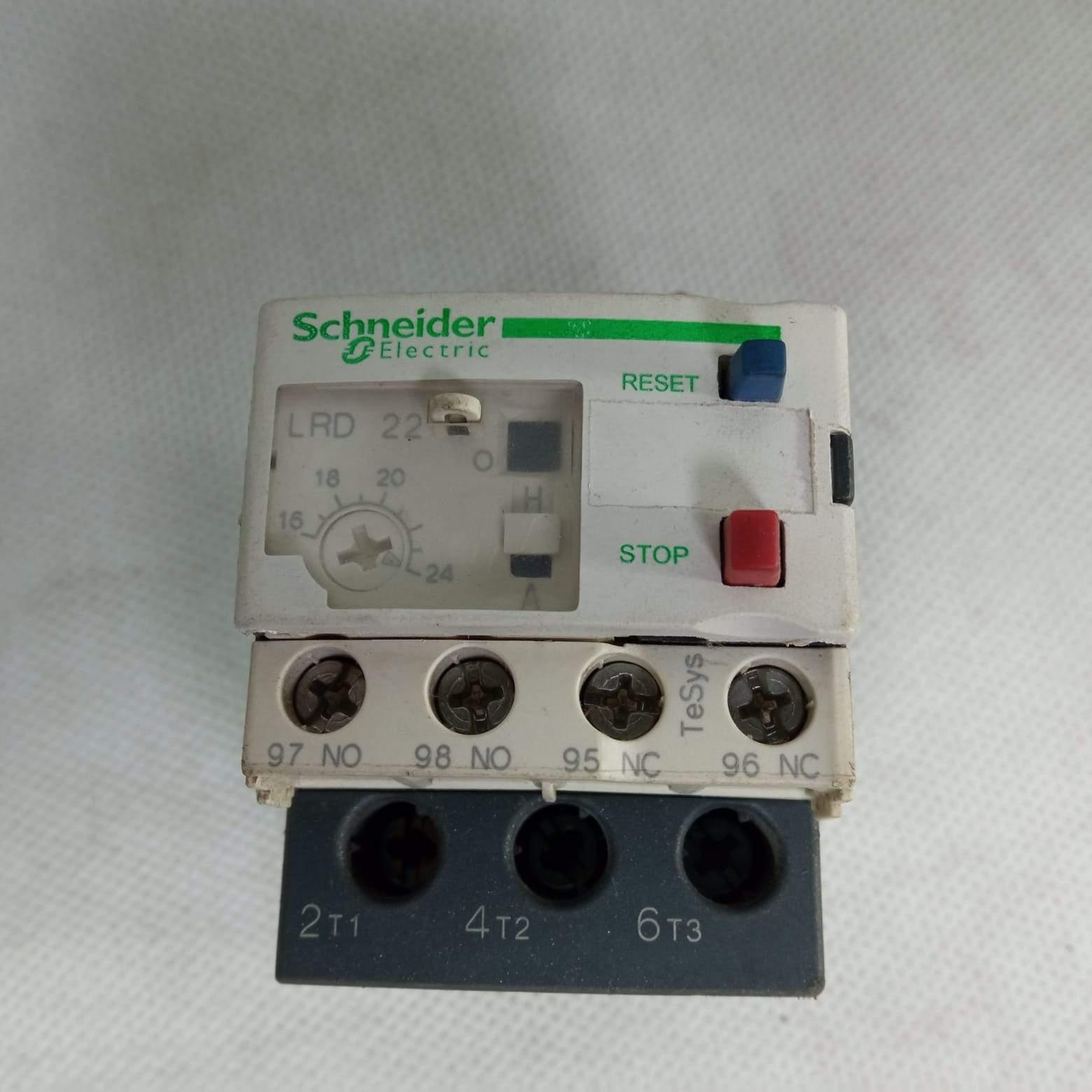

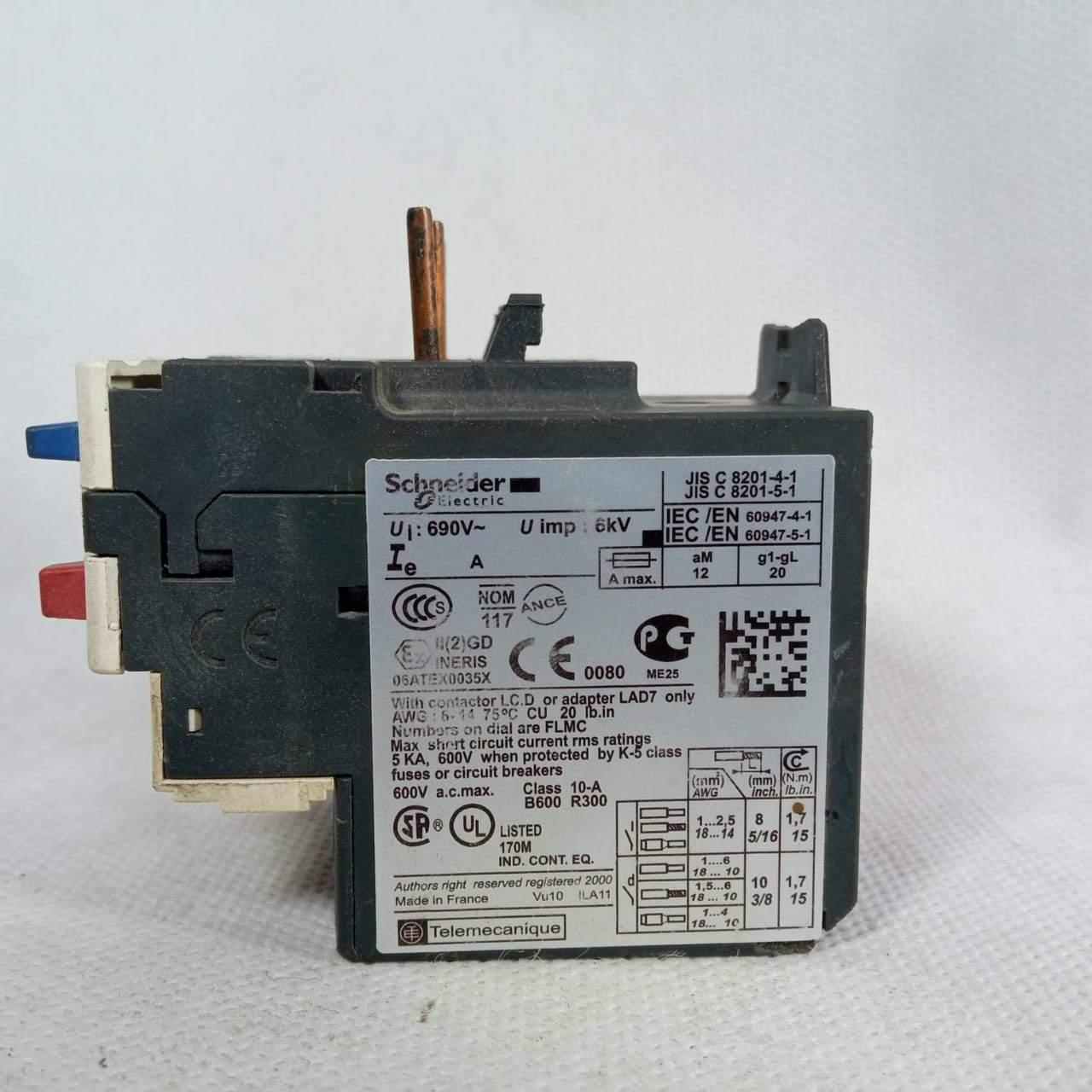

Schneider Electric Thermal Overload Relay LRD22 in Pakistan

The Schneider Electric LRD22 line of Class 10 bimetallic overload relays are available up to 140 A. They are bimetallic ambient compensated and are available with or without single-phase sensitivity for phase unbalance and phase loss protection. New solid-state overload relays are available for 90 to 150 A applications. Both bimetallic and solid-state overload relays include the following features: Features: Isolated N.C. trip contact and N.O. alarm contacts. Manual or Automatic reset function (bi-metallic versions only). The tamper-resistant window for FLA settings. Test trip button. Specifications: Installs directly onto LC1D contractors from the LC1D09 to the LC1D32 models Automatic or Manual reset Single-phase sensitivity - phase loss protection Class 10 trip characteristic Base mounted auxiliary contact Package Includes: 1 x Schneider Electric Thermal Overload Relay LRD22
