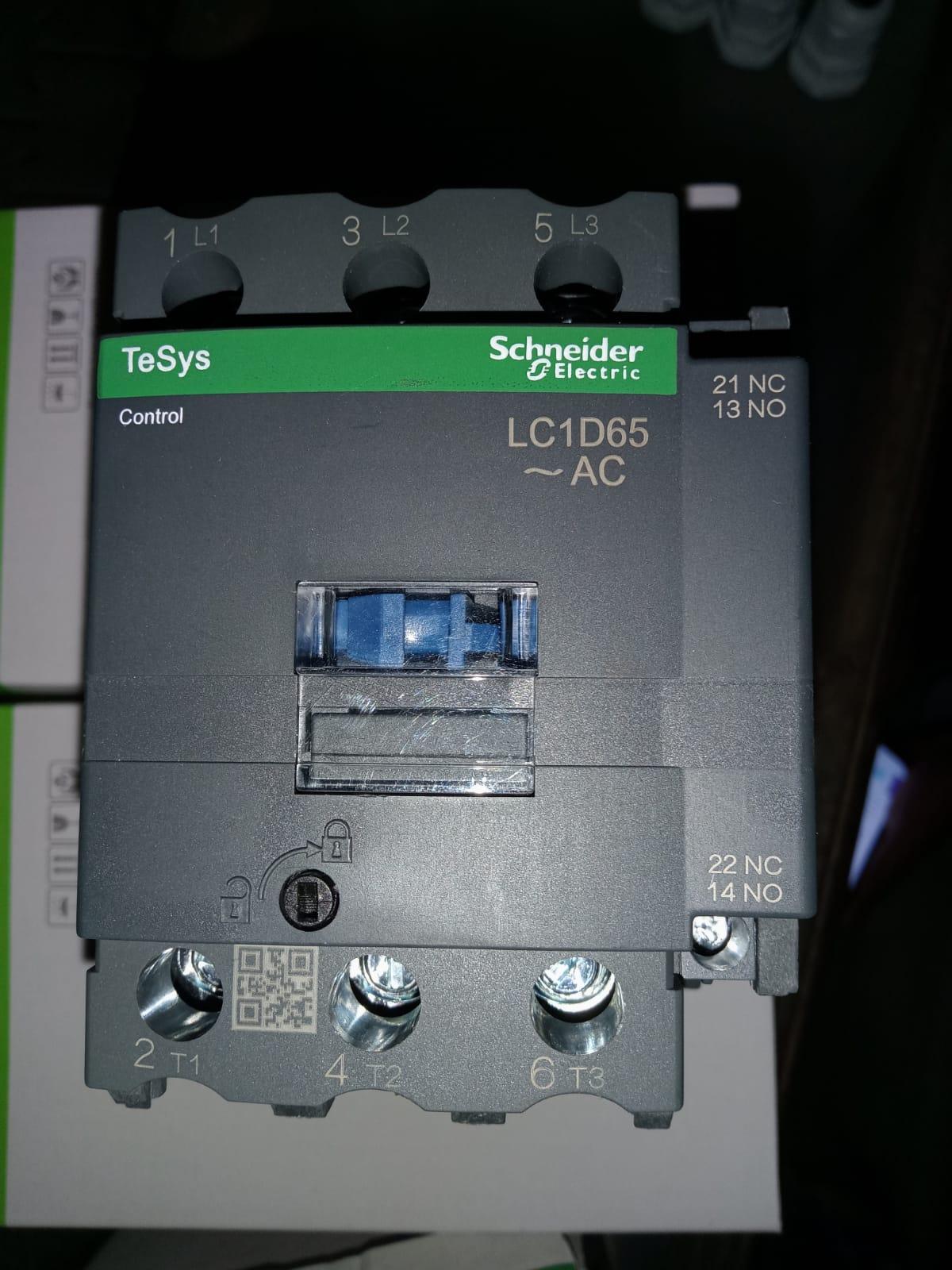

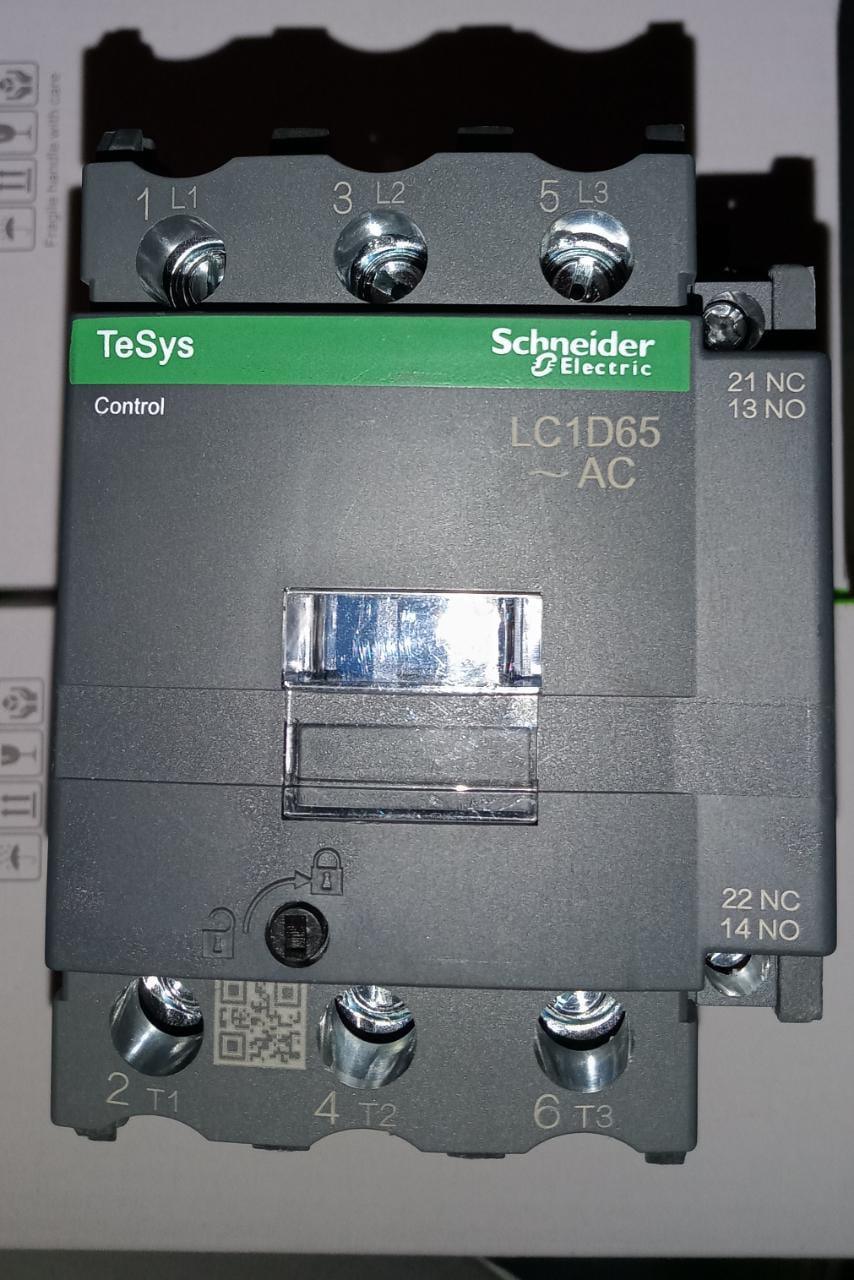

Schneider Electric Magnetic Contactor LC1D65 in Pakistan

LC1D65 Schneider Electric 65 AMP , 3 pole contactor with an AC rated coil (must specify voltage below). Rated 50 H.P. @ 460 volts 3-Phase and has 1 N.O. and 1 N.C. base mounted auxiliary contact - LRD 3 phase overload relays can be added along with top and side mounted auxiliaries for up to 6 additional poles. Specifications: Range : TeSys Range of product : TeSys Deca Product or component type : Contactor Device short name : LC1D Contactor application : Motor control, Resistive load utilization category : AC-1, AC-2, AC-4, AC-3e, AC-1 Poles description : 3P [Ue] rated operational voltage: Power circuit : <= 690 V AC 25...400 Hz [Ie] rated operational current: 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 65 A (at <60 °C) at <= 440 V AC AC-3e for power circuit 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit [Uc] control circuit voltage: 48 V AC 50/60 Hz Mechanical durability: 6000000 cycles Control circuit type : AC at 50/60 Hz Height: 127 mm Width: 75 mm :Depth: 119 mm Package Includes: 1 x Schneider Electric Magnetic Contactor LC1D65. Facebook Instagram Pinterest
