Push-button Switches are used as the circuit switching and push-buttons of the mechanical equipment in the control circuit with 50 or 60Hz. They are widely used in the fields such as machinery, textile, light industry, electricity, and so on. They are very easy to install because of their portable hole size of 22mm. There is a light in this button which make facilitate the user to watch the button.
Specification:
Product : Push-button switch with light
Model : LA38/203
Colour: green, red
Protection Level: IP65
Maximum Current: 10A
Material: Zinc alloy, Plastic
Ambient temperature: -25 C~ +55C
Type of contact: 1 NO 1 NC (DPST).
Contact resistance: ≤50mΩ
Operational Voltage: ≤660V
Function: Momentary
Auto-reset: yes
Package Includes:

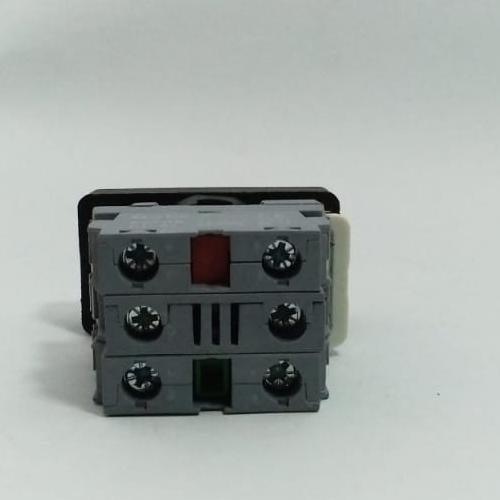

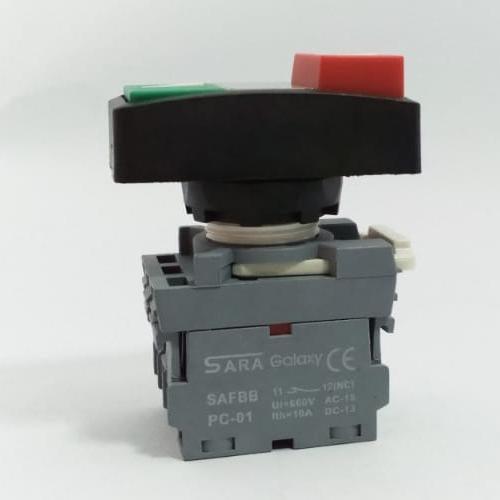

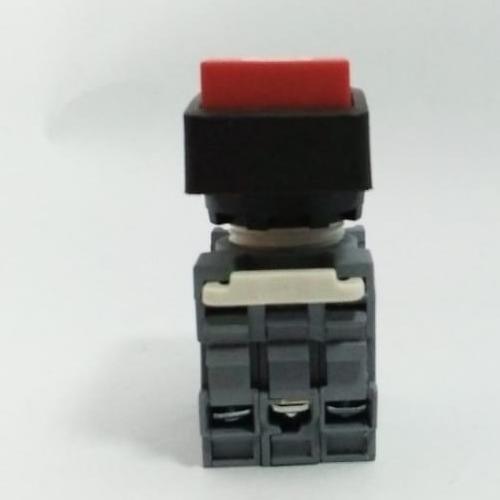

1 x Red Green Power ON OFF Start Stop Push Button
