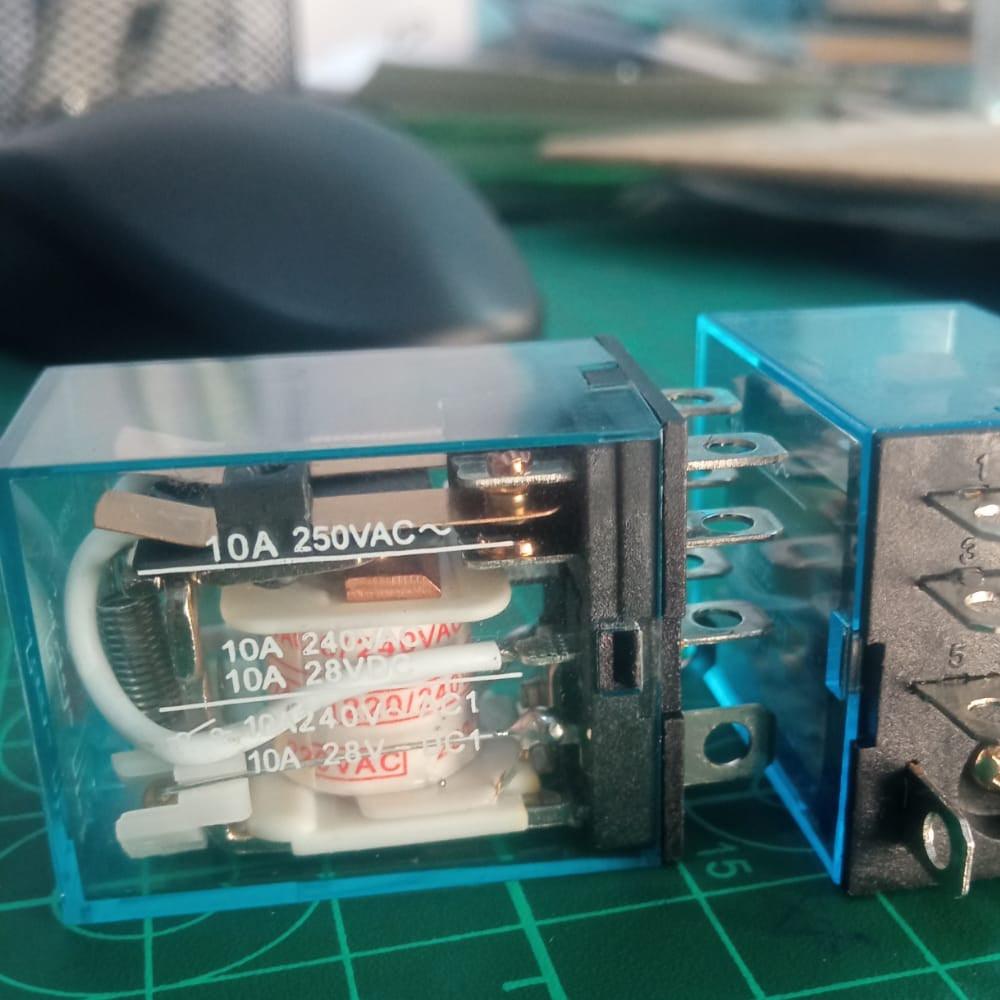

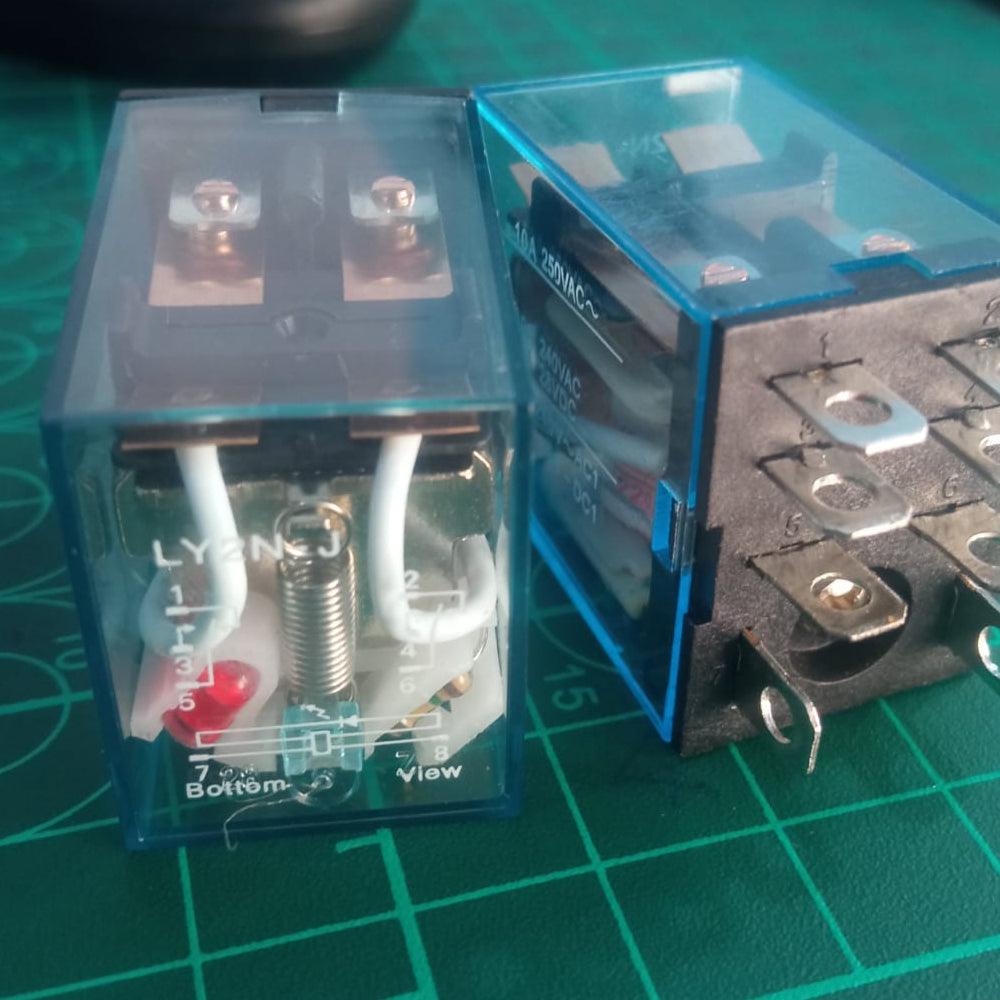

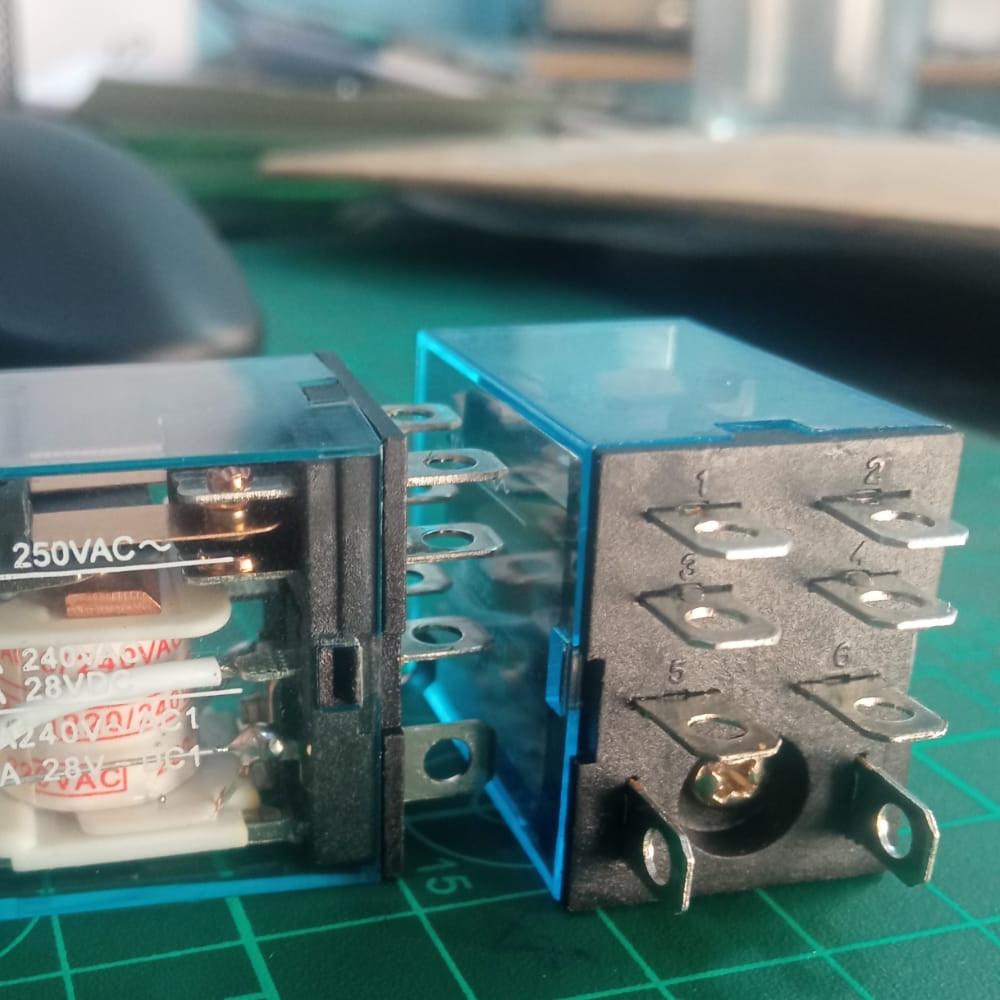

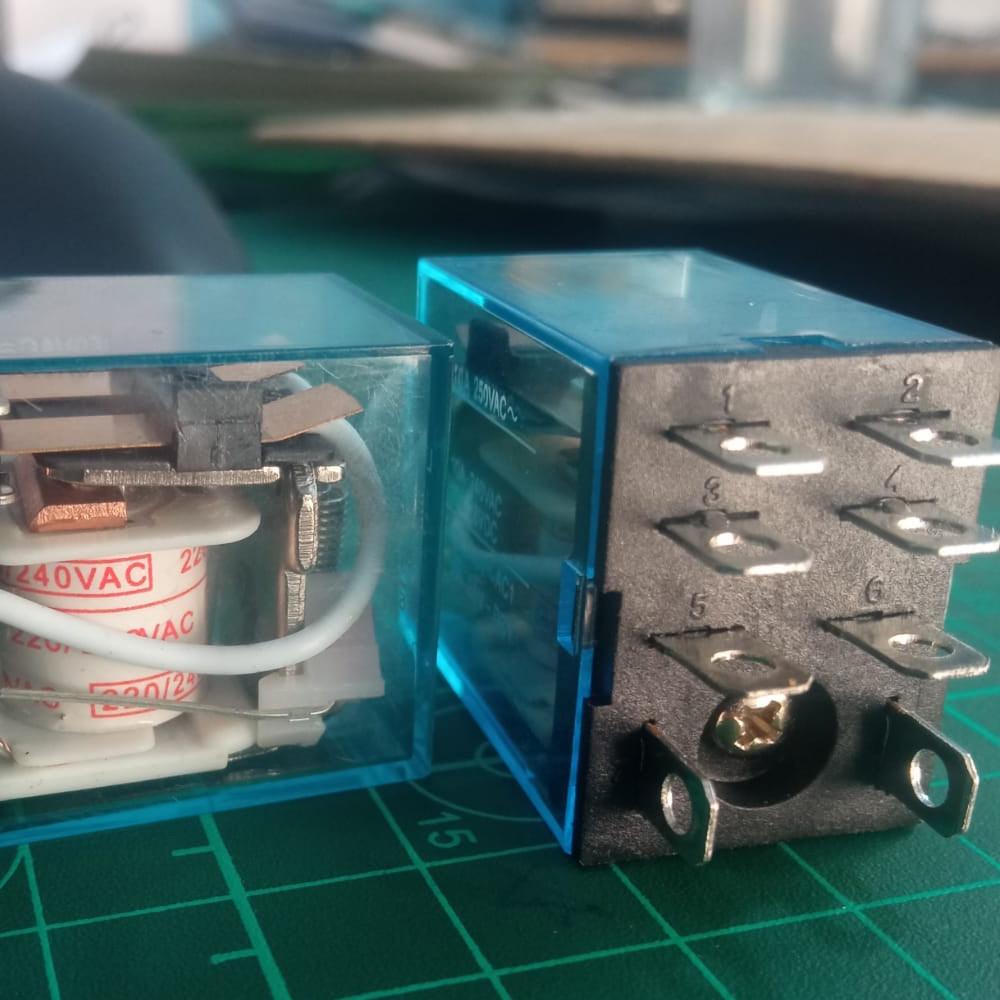

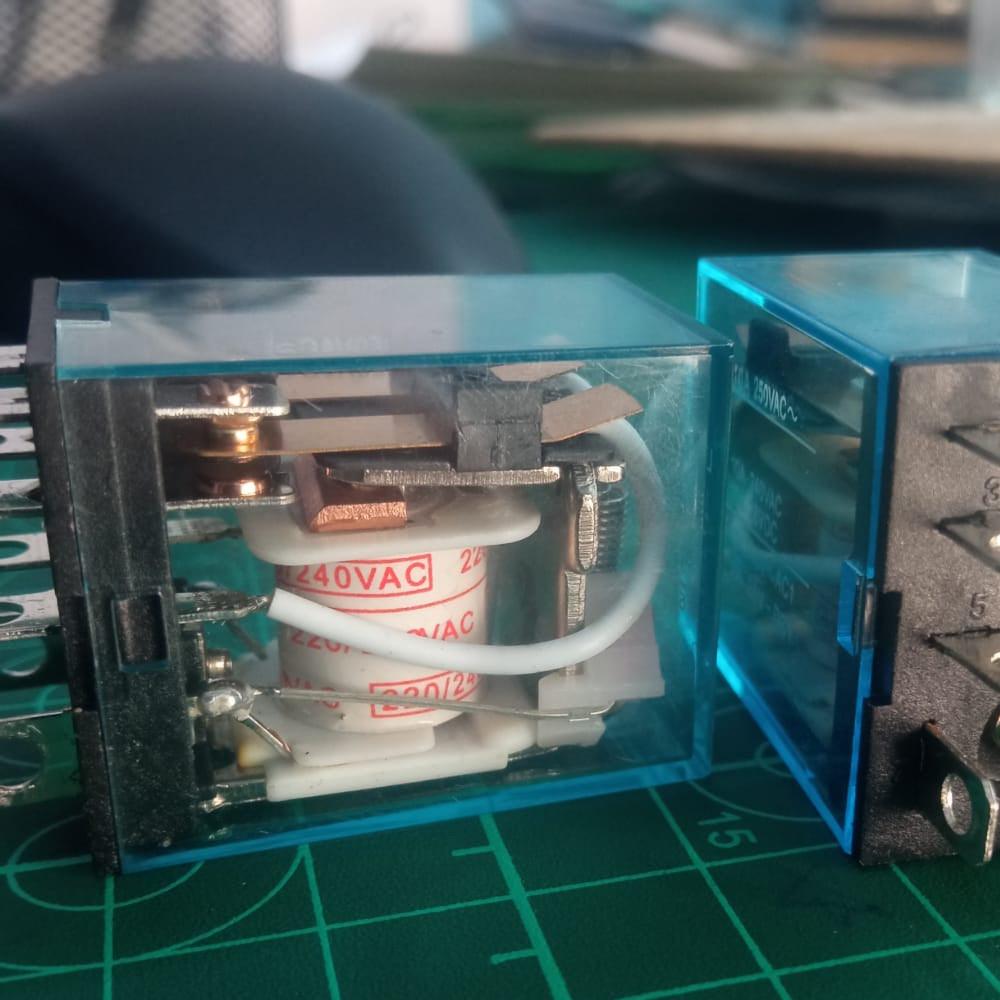

Power Relay LY2N-J in Pakistan

A power relay is a device that uses an electromagnet to open or close a circuit when the input (coil) is correctly excited . They provide a high level of isolation between the control signal (coil) and the output (contacts) – typically with a rated impulse voltage of 4 or 6kV. Specification: Item type: Power Relay Model: LY2NJ Coil voltage : DC12V Coil Power: DC (W): 0.9AC and less (VA): 1.2 and less Contact capacity: 10A 250VAC Pull-in voltage: 80% (V) and less Release voltage : DC: 10% (V) and more, AC:3 0% and more Contact resistance: 50 (mΩ) and less Insulation resistance: 100 (mΩ) and less Dimensions: 27.5 * 21 * 35.3mm Terminals form: Socket Action time: 20ms or less Reset Time: 20ms or less Operating frequency: Mechanical 18,000 cycles / hour Electrical 18,000 times / hour Package includes: 1 x Power Relay LY2N-J Facebook Instagram Pinterest
