OPKON Optic Rotary Incremental Encoder in Pakistan

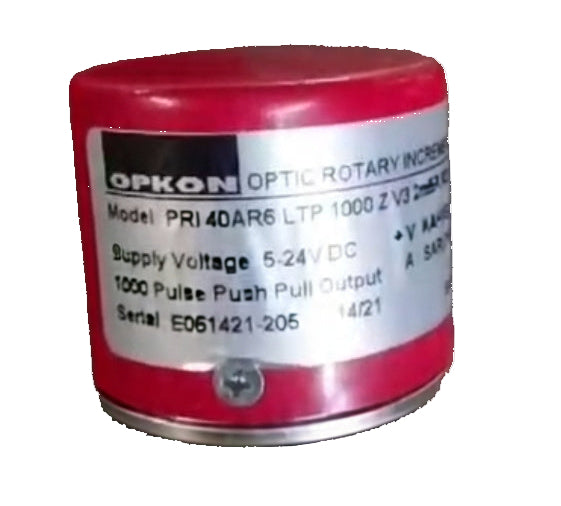

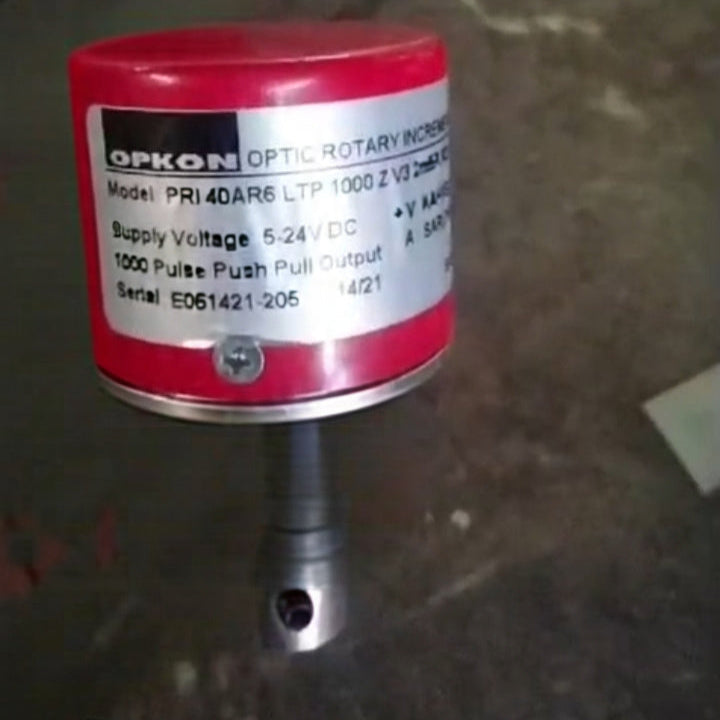

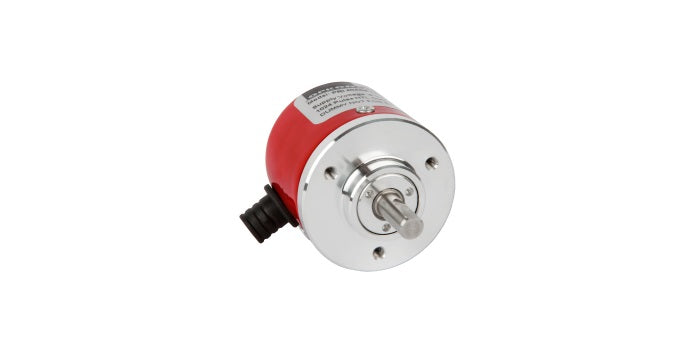

The OPKON PRI 40AR6 LTP 1000Z V3 2m5R RD-RF Optic Rotary Incremental Encoder is a device used in industrial settings to precisely measure the rotational movement of a shaft. It converts this mechanical rotation into electrical pulses using an optical sensor. Specifically, this model has a 40mm body with a 6mm solid shaft, generates 1000 pulses for every full rotation, and provides a "Push-Pull" type electrical output. Powered by a 5-24VDC supply, it helps systems like motors or machinery accurately track position, speed, and direction. Features of the OPKON Optic Rotary Incremental Encoder: High-resolution optical sensing: Provides accurate pulse generation. Incremental output: Tracks position, speed, and direction. Robust Push-Pull output: Connects to PLCs, includes a Z-channel. Solid shaft: For mechanical coupling. Durable construction: Built for industrial environments. Wide 5-24VDC compatibility: Flexible power supply. Specification of the OPKON Optic Rotary Incremental Encoder: Model: OPKON PRI 40AR6 LTP 1000Z V3 2m5R RD-RF Technology: Optic Incremental Case Diameter: 40mm Shaft Type: Solid Shaft (6mm) Pulses Per Revolution (PPR): 1000 (with Z-channel) Output Type: Push-Pull (LTP) Supply Voltage: 5-24VDC Cable Length: 2.5m radial cable Max. RPM: 3500 Operating Temperature: − 20° C to + 80° C
