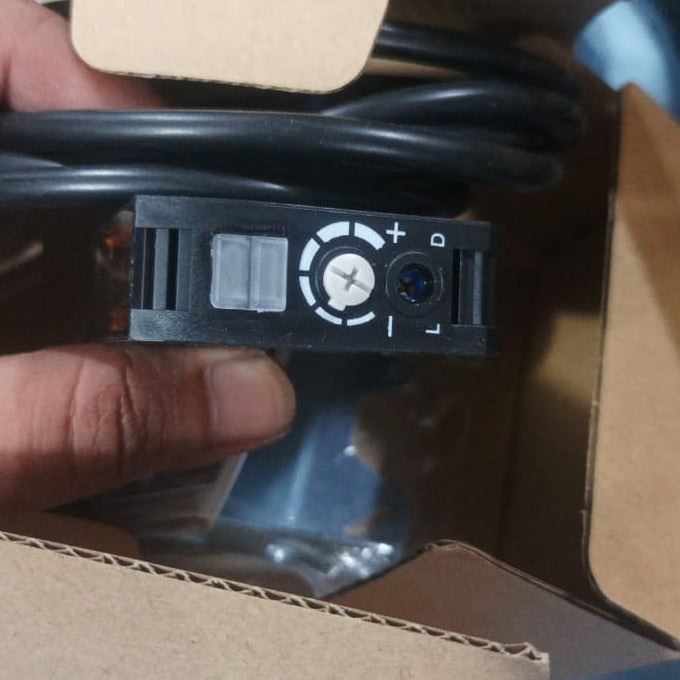

The Photo Electric Switch E3JK-DR12-C sensing up to 7feet in Pakistan is a reliable sensor for object detection and position sensing in automation systems. This photoelectric switch can detect targets at distances of up to 7 feet (around 2 meters) , making it suitable for conveyors, packaging machines, counting systems and many industrial applications.
E3JK-DR12-C is designed with a compact rectangular housing and an easy-to-see operation indicator LED. It uses infrared light to sense the presence or absence of objects without physical contact. This reduces mechanical wear and increases the life of your machine compared to traditional limit switches.
The sensor offers stable performance, good noise immunity and adjustable detection, depending on the reflector / installation. It can be used with PLC inputs, relays and control circuits through its output contacts. Mounting holes and simple wiring make it easy for technicians and electricians to install.
Features:
Diffused-reflective sensor
Detects objects up to 300 mm away
Easy to use 3-wire connection
Durable construction
Wide operating voltage range
Specifications:
Model: E3JK-DR12-C
Sensing Distance: 300 mm
Operating Voltage: 12-24VDC
Dimensions: 50 x 30 x 25mm
Dimension
Overall Length: 50mm
Width: 30mm
Height: 25mm
Use
The Omron Photo Electric Switch E3JK-DR12-C can be used for a variety of applications, including:
Counting objects
Detecting the presence of objects
Controlling machinery
Sequencing operations
Package Include
1 x Omron Photo Electric Switch E3JK-DR12-C
