2000PPR OMRON Incremental Rotary Encoder E6B2-CWZ6C in Pakistan

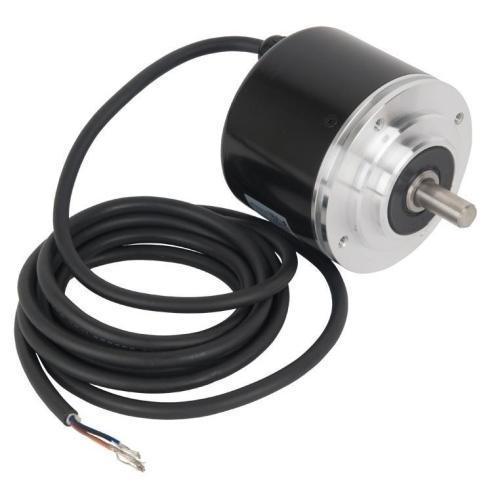

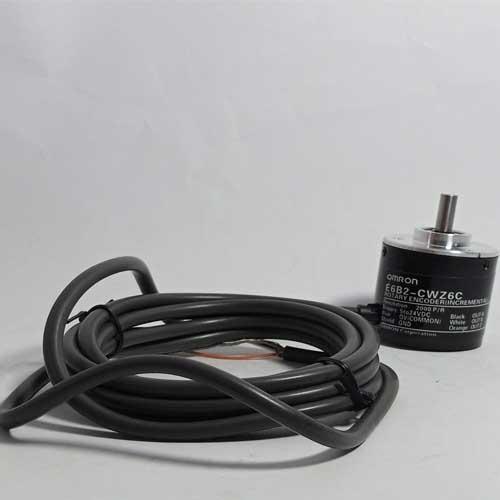

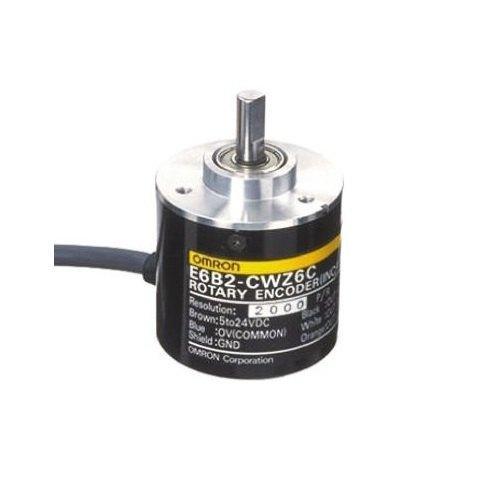

The Omron E6B2-CWZ6C is a high-precision 2000 PPR incremental rotary encoder designed for accurate speed and position feedback in industrial automation. Especially trusted by engineers, this encoder delivers stable quadrature A/B/Z outputs, making it ideal for CNC machines, conveyors, packaging lines, robotics, and printing systems. So, with a wide 5–24 VDC supply range and NPN open-collector output, it interfaces easily with PLCs, motion controllers, and drives. Built with a robust 40 mm housing and a 6 mm solid shaft, the E6B2-CWZ6C withstands tough environments while maintaining excellent signal integrity. Also its compact form factor allows easy mounting in tight spaces, and the pre-wired cable simplifies installation. So, the 2000 pulses-per-revolution resolution provides smooth control and high repeatability for precision applications. Features: 2000 PPR high-resolution quadrature (A, B, Z) Wide 5–24 VDC supply for flexible integration NPN open-collector output, PLC-friendly Robust 40 mm body, 6 mm shaft, durable build Pre-wired cable for easy, fast installation Specification: Resolution: 2000 pulses/rev (A/B/Z channels) Supply Voltage: 5–24 VDC Output Type: NPN open-collector, up to ~100 kHz Mechanics: 6 mm shaft, 40 mm dia housing, up to ~6000 rpm Cable/Rating: ~2 m cable, IP50, -10°C to +70°C operating Uses: CNC lathes, mills, and machine tools Conveyor and packaging line feedback Robotics and AGV positioning Printing and labeling machines Servo/stepper motor speed monitoring Packages Include: 1 x 2000PPR OMRON Incremental Rotary Encoder E6B2-CWZ6C
