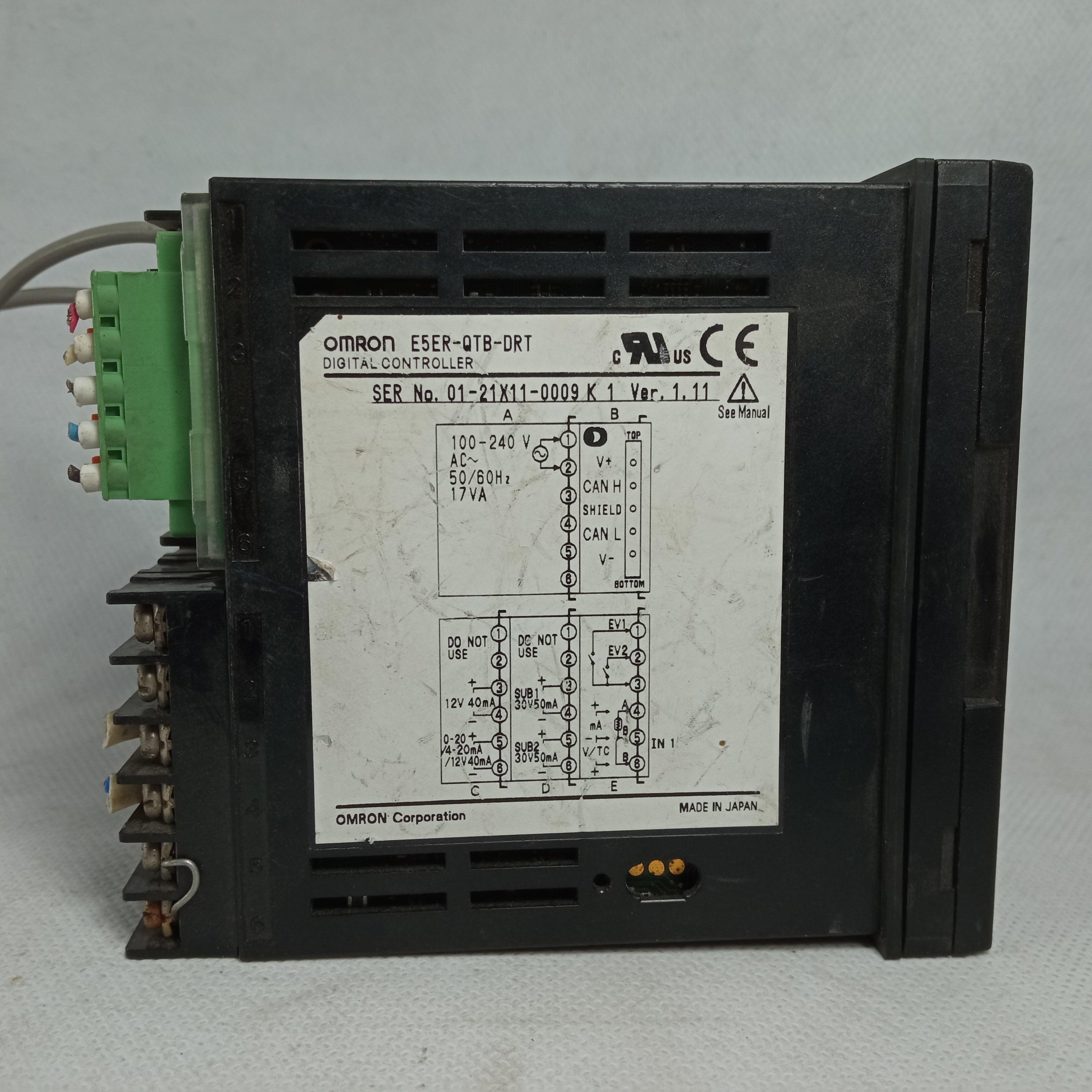

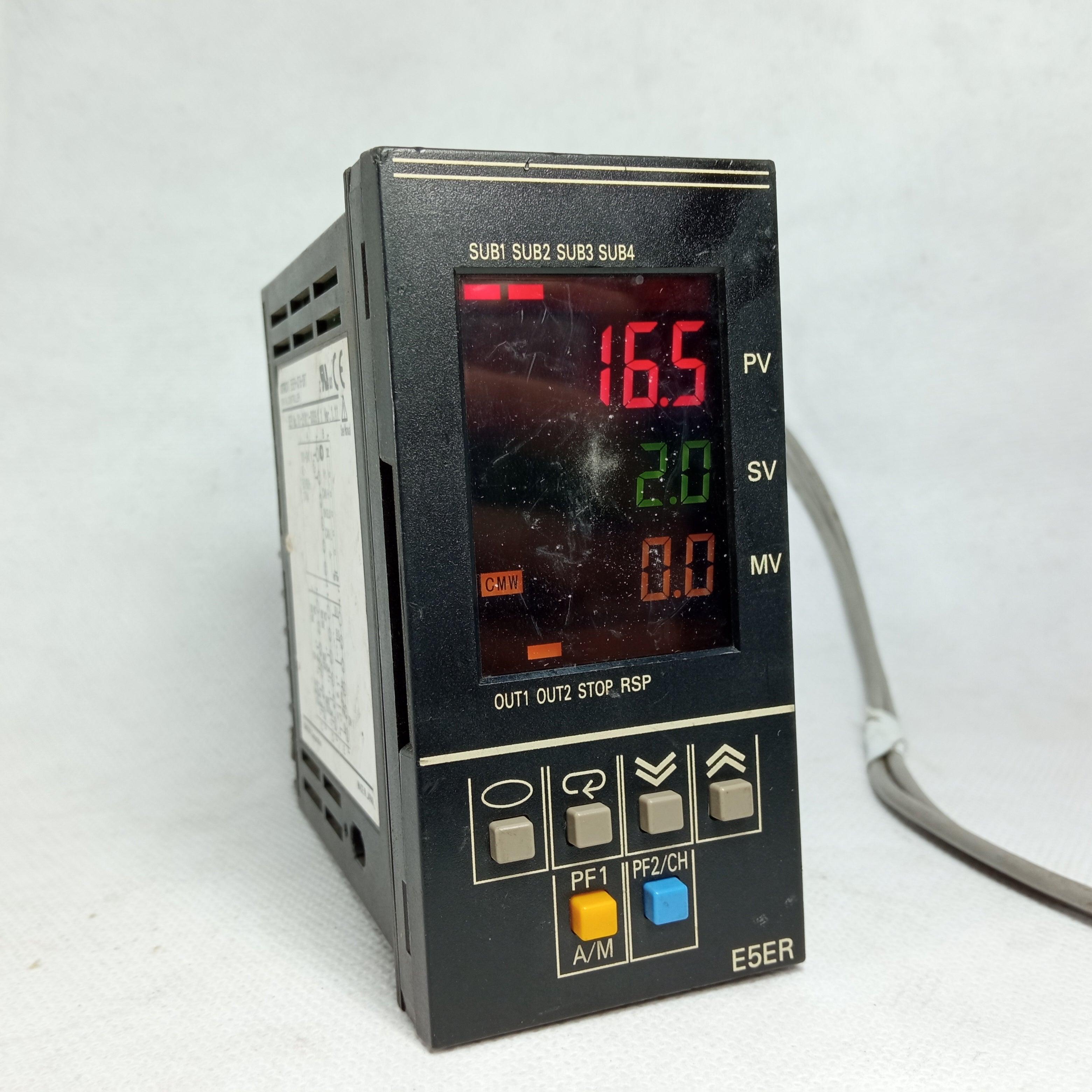

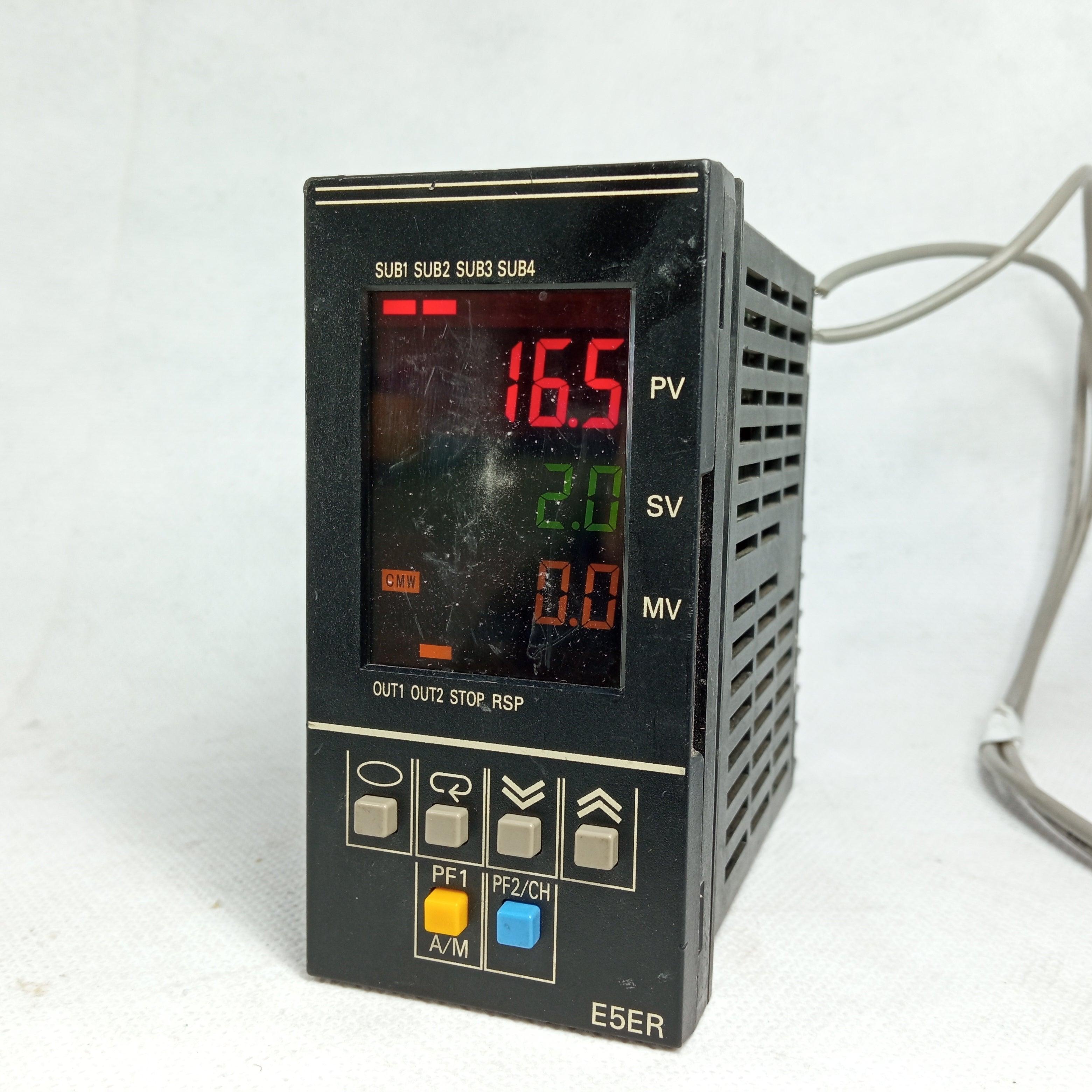

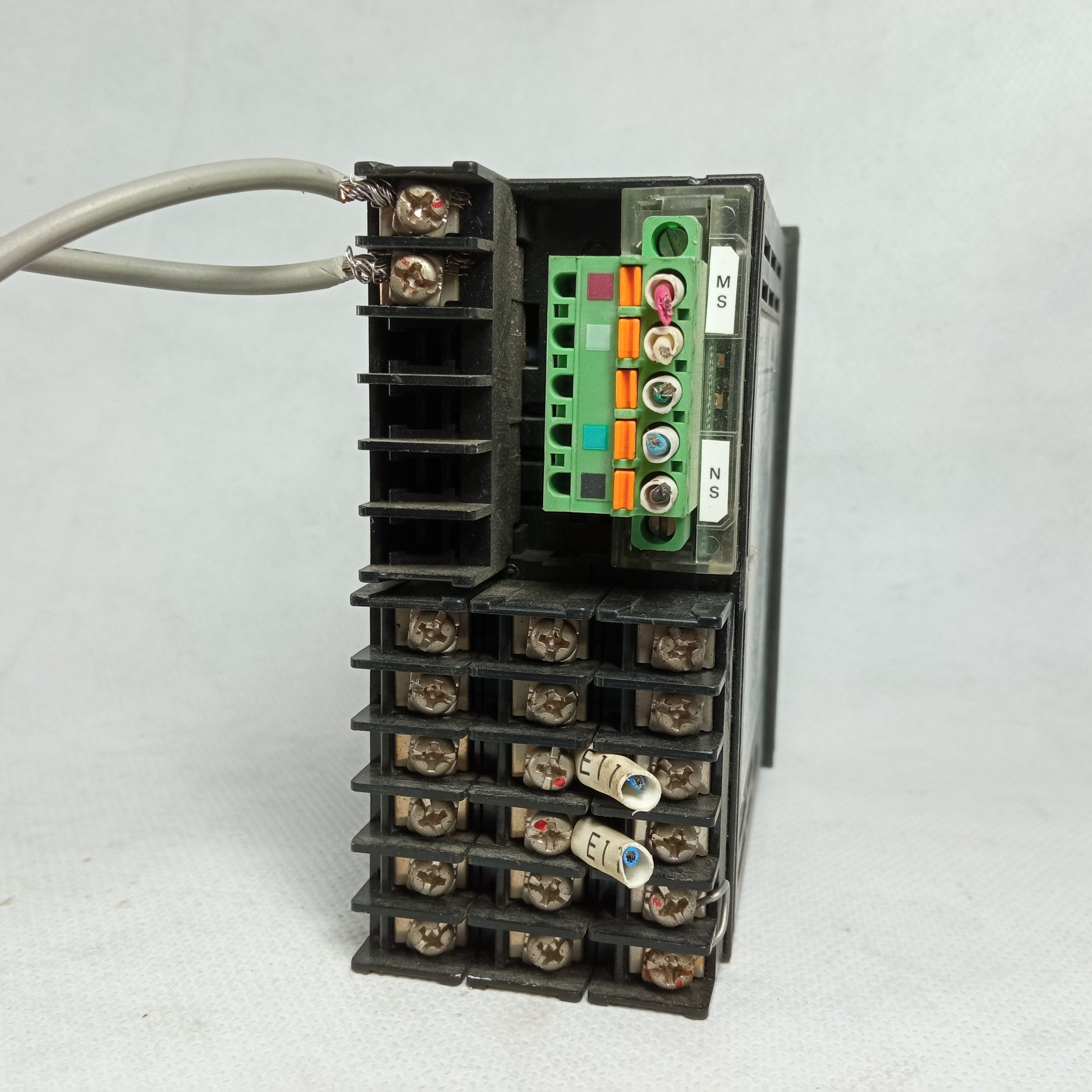

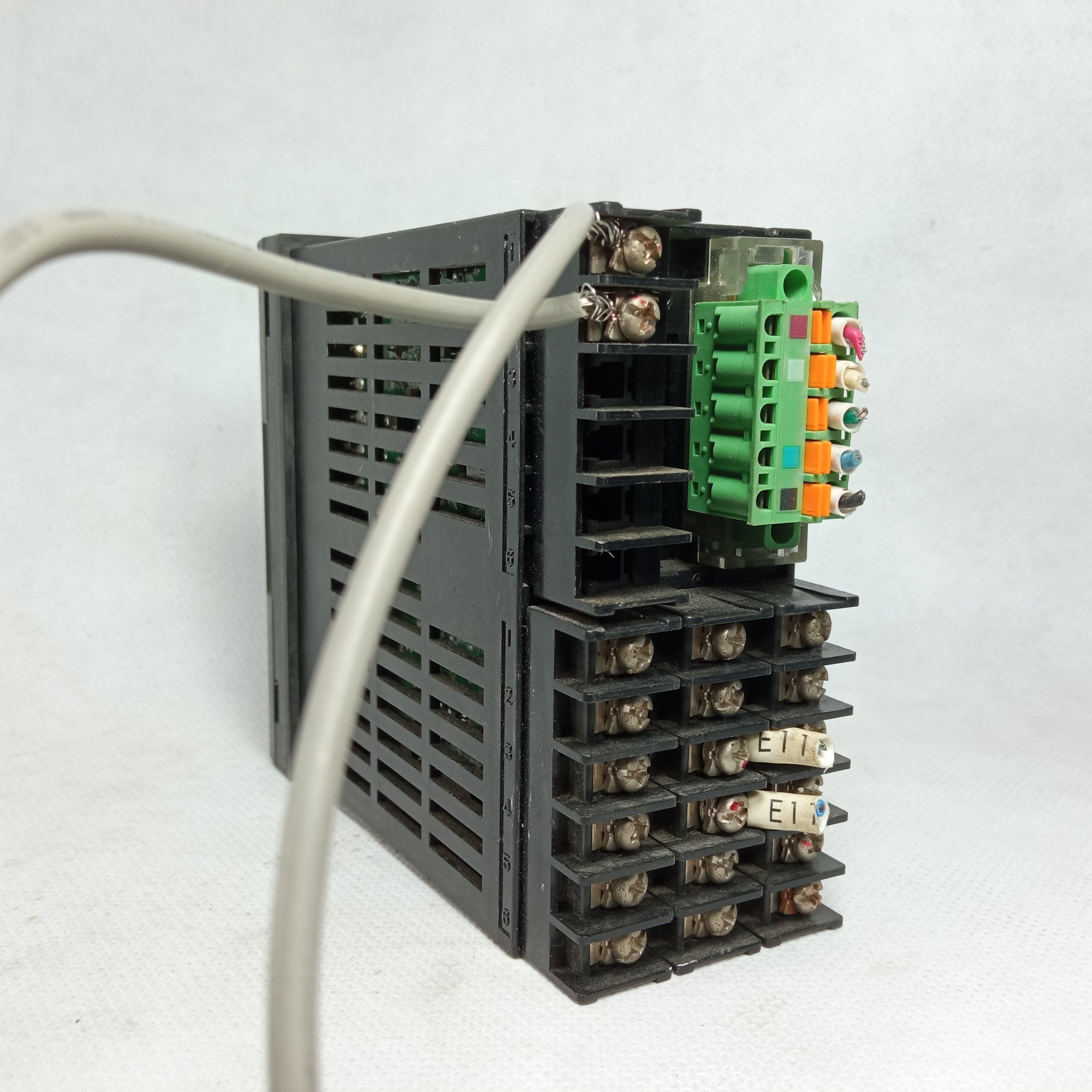

Omron E5ER Digital Controller A short sampling period of 50 ms enables use in applications requiring a high-speed response. PV, SP , and MV data are displayed simultaneously in a 3-row, negative LCD display with a backlight. Multipoint control, cascade control, and proportional control are possible with a single Controller. When using models with Compo Way/F communications, initial settings can be downloaded and settings can be masked using Support Software (CX-Thermo version 4.0 or higher) . Equipped with calculation functions as a standard (e.g., square root calculation and broken-line approximation). Device Net Communications Data setting and monitoring can be performed without any special programming. https://youtu.be/OstjMmUgkHQ Features: Temperature Control: The E5ER controller offers precise temperature control with support for various input types such as thermocouples, RTDs (Resistance Temperature Detectors), and analog voltage/current inputs. PID Control: It utilizes PID (Proportional-Integral-Derivative) control algorithm to ensure stable and accurate temperature control by continuously adjusting the output based on the difference between the desired temperature and the measured temperature. Compact Design: The E5ER controller has a compact and space-saving design, making it suitable for installation in limited space environments such as control panels. Multi-Range Input: It supports multiple input ranges to accommodate different temperature measurement requirements, allowing flexibility in temperature sensing. Dual Display: The controller features a dual display that shows both the current temperature reading and the set temperature, allowing operators to monitor the process easily. Alarm Functions: It includes configurable alarm functions to notify operators in case of temperature deviations or abnormal conditions, ensuring quick response to any process issues. Communication Capabilities: Some models of the E5ER controller support communication protocols such as Modbus or RS-485, enabling connectivity with PLCs (Programmable Logic Controllers) or other control systems for remote monitoring and control. Easy Programming: The controller offers user-friendly programming interfaces, such as front-panel keypads or software tools, making it easy to configure and set up the desired temperature control parameters. Auto-Tuning: The E5ER controller can perform auto-tuning to automatically determine optimal PID parameters based on the characteristics of the controlled process, simplifying the setup process. Robust and Reliable: Omron is known for manufacturing high-quality and reliable products, ensuring long-term performance and durability of the E5ER controller in demanding industrial environments. Specifications: Brand: Omron Model: No. E5ER Size : 48 x 96 mm Control Type: PID/On-Off Input Type: Thermocouple, RTD, Current (mA), Voltage (mV) Control output Type: Relay/SSR, Analog (mA/mV) Temperature Range: -10 to 50 Deg C Voltage: 90-270 VAC/DC Frequency: 50/60 Hz Package Include: 1 x Omron E5ER Digital Controller
