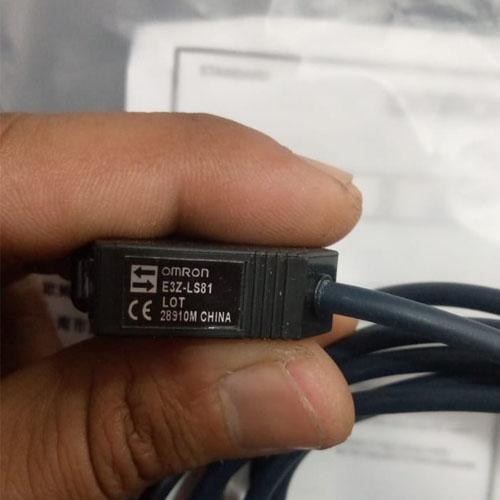

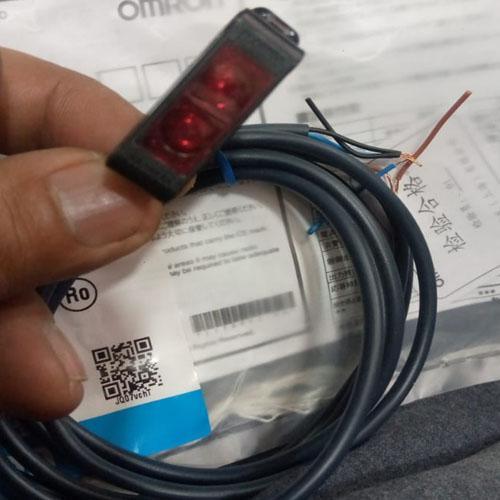

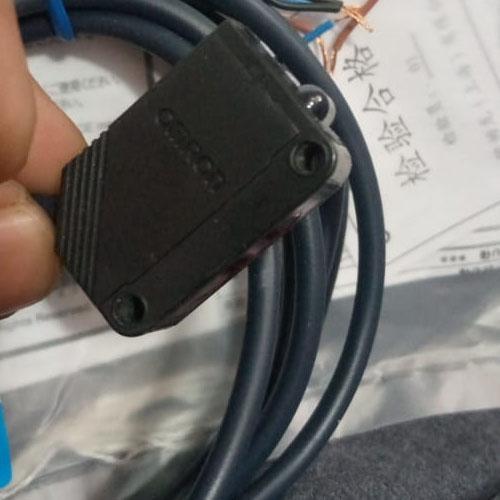

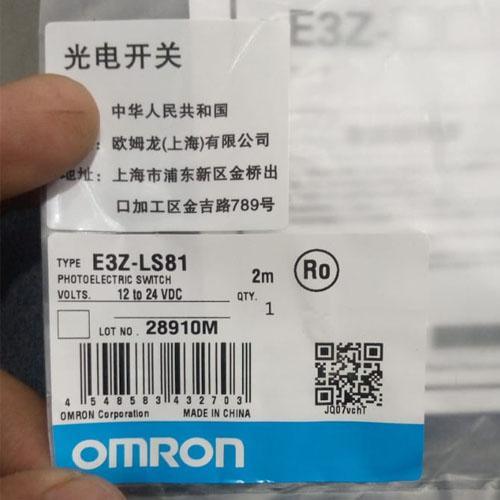

Omron E3Z-LS81 Distance-setting, Sensing distance 20 to 200 mm

Omron E3Z-LS81 Distance-setting, Sensing distance 20 to 200 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (670 nm) Shape Square type Sensing method Distance-setting Sensing distance 20 to 200 mm Setting range White paper 100 x 100 mm: 40 to 200 mm Black paper 100 x 100 mm: 40 to 160 mm Detection range BGS: 20 mm to Setting distance (White paper, Black paper 100 x 100 mm) FGS: Setting distance to 200 mm min. (White paper 100 x 100 mm), Setting distance to 160 mm min. (Black paper 100 x 100 mm) Differential distance 10% max. of setting distance Reflectivity characteristic (black-white error) 10% max. of setting distance Light source Red LED (670 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption 30 mA max. Control output PNP open collector 26.4 VDC max. 100 mA max. Residual voltage: 1 V max. Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting 5-turn endless adjustment Ambient illuminance Incandescent lamp: 3,000 lx max. Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85% (with no condensation) Ambient humidity range (Strage) 35 to 95% (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s 2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method Pre-wired models (Cable length 2 m) Indicator Operation indicator (orange), Stability indicator (green) Weight Package: Approx. 65 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT) Lens: Denatured Polyarylate
