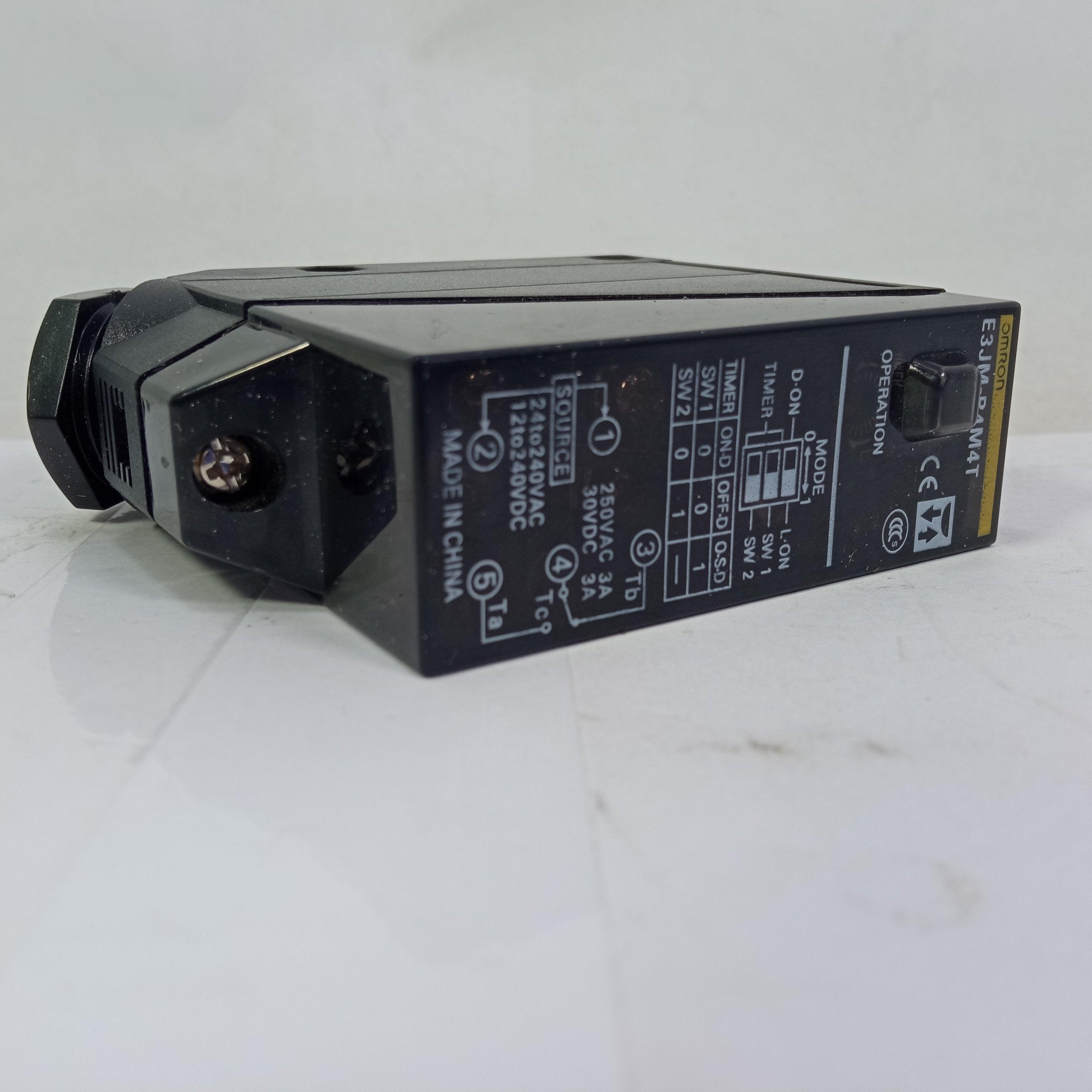

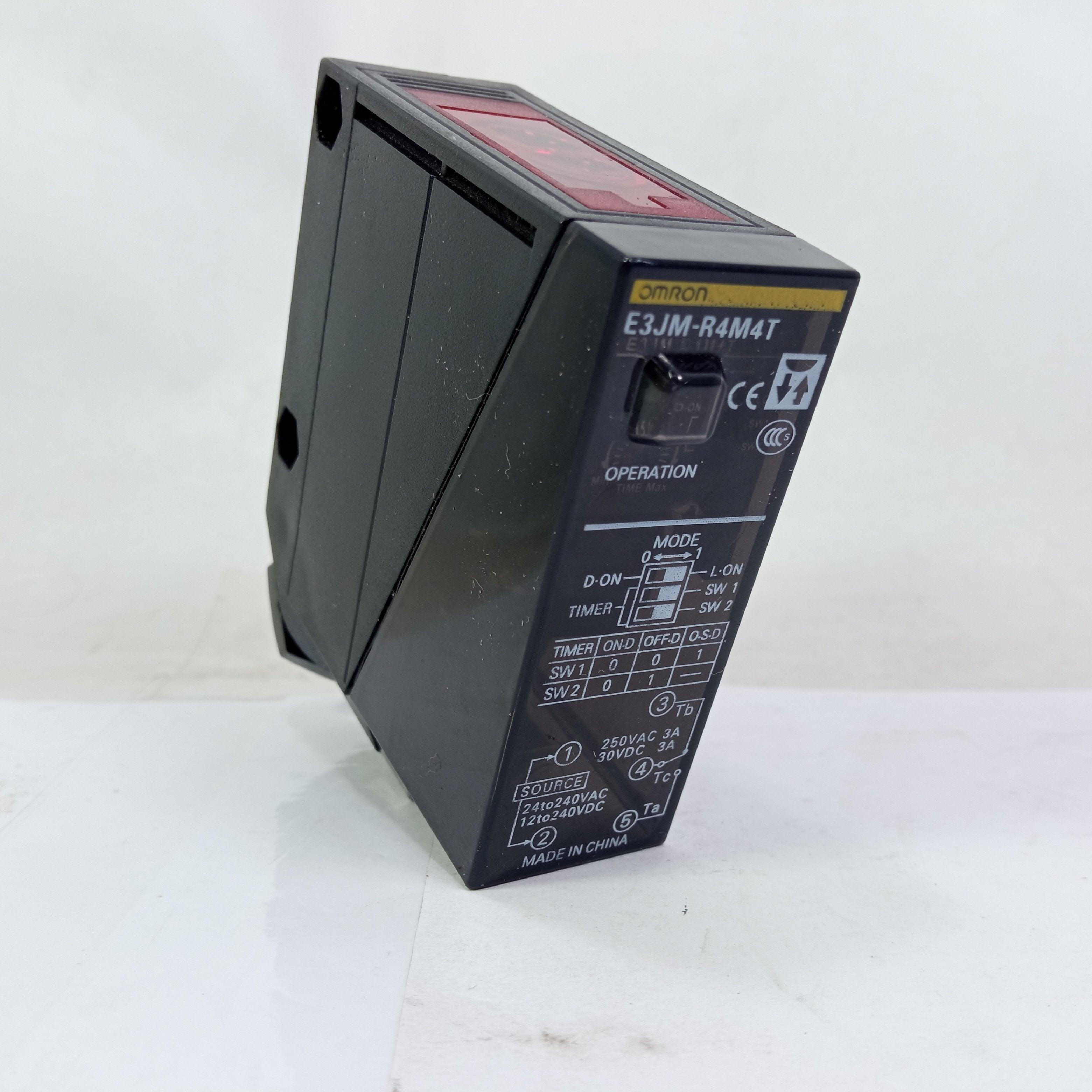

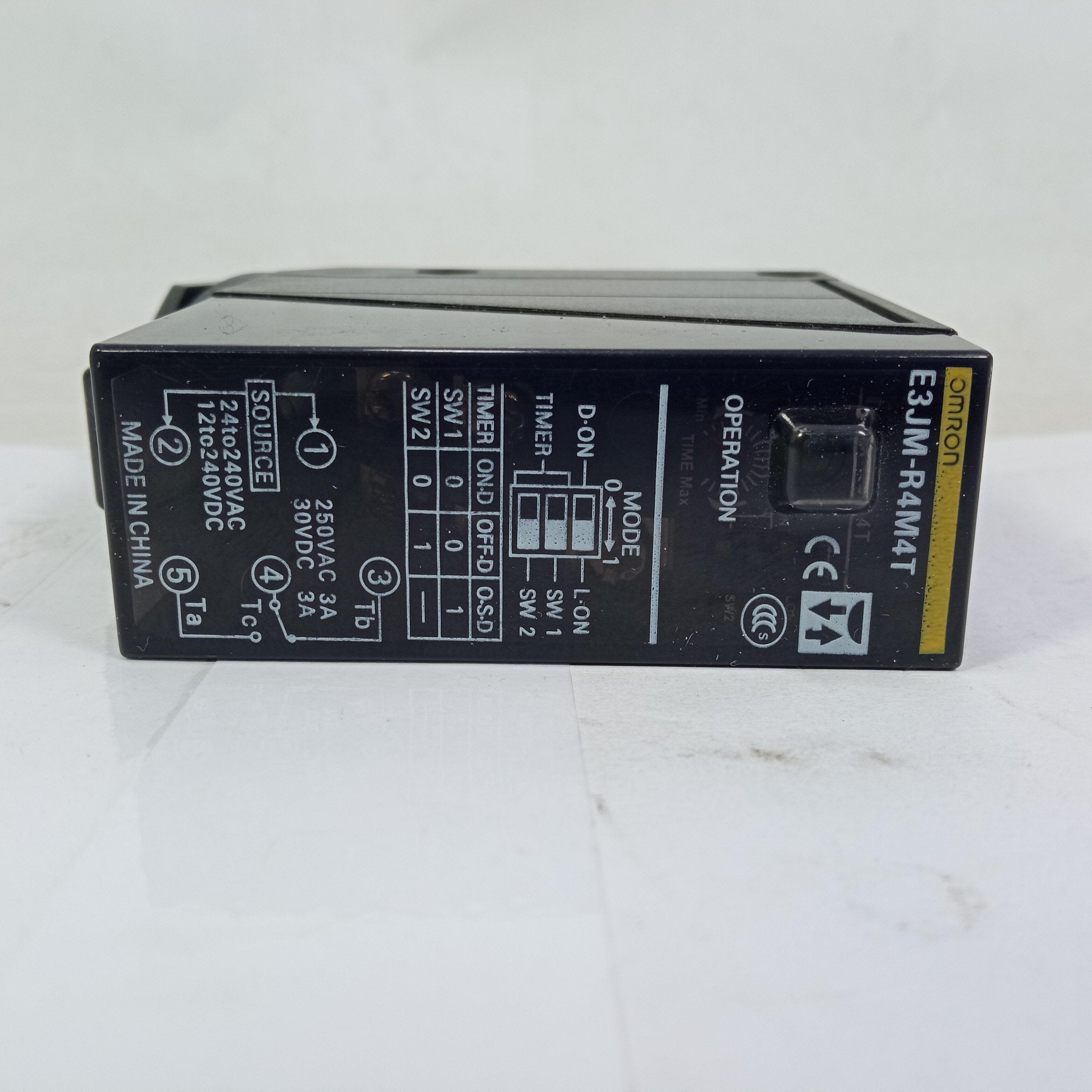

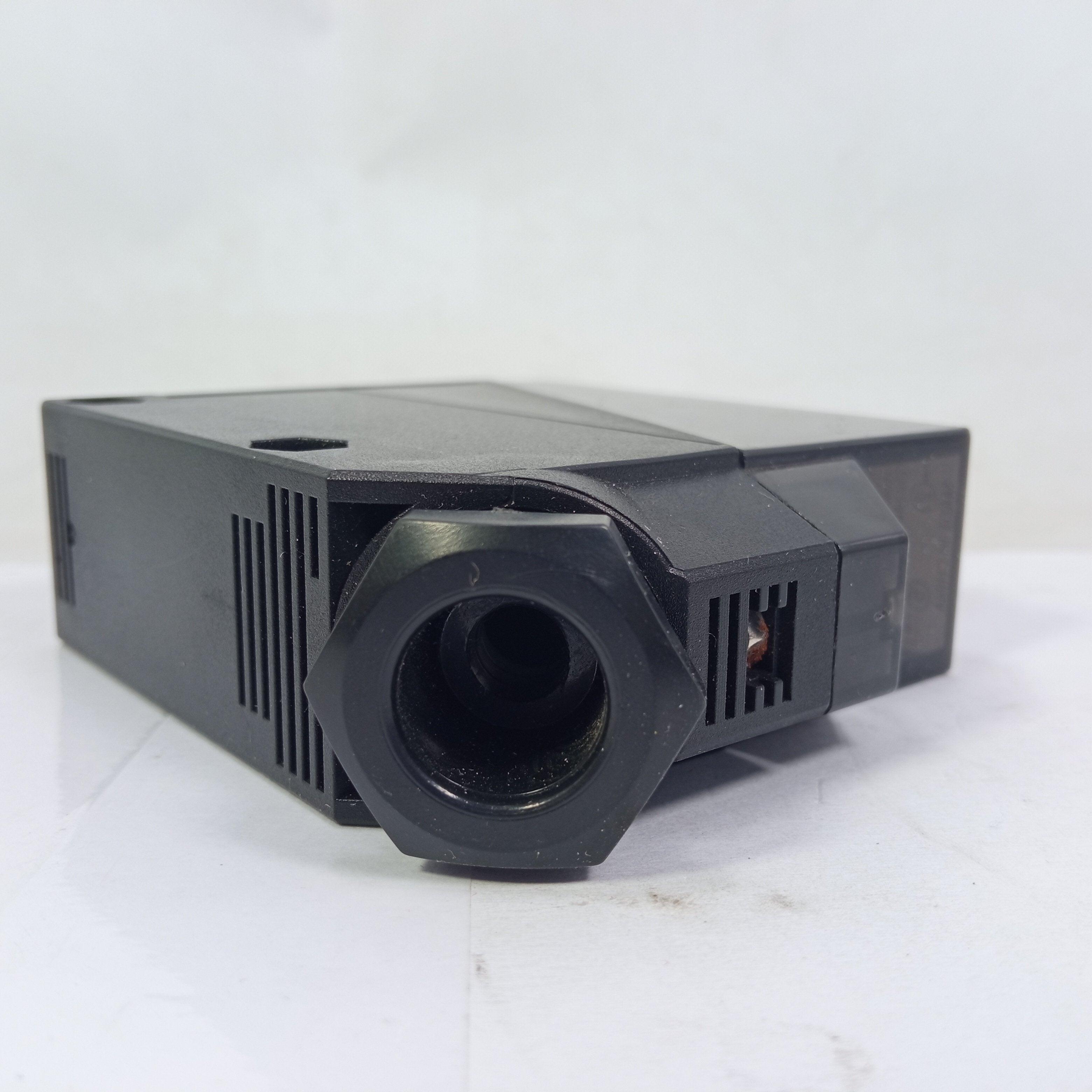

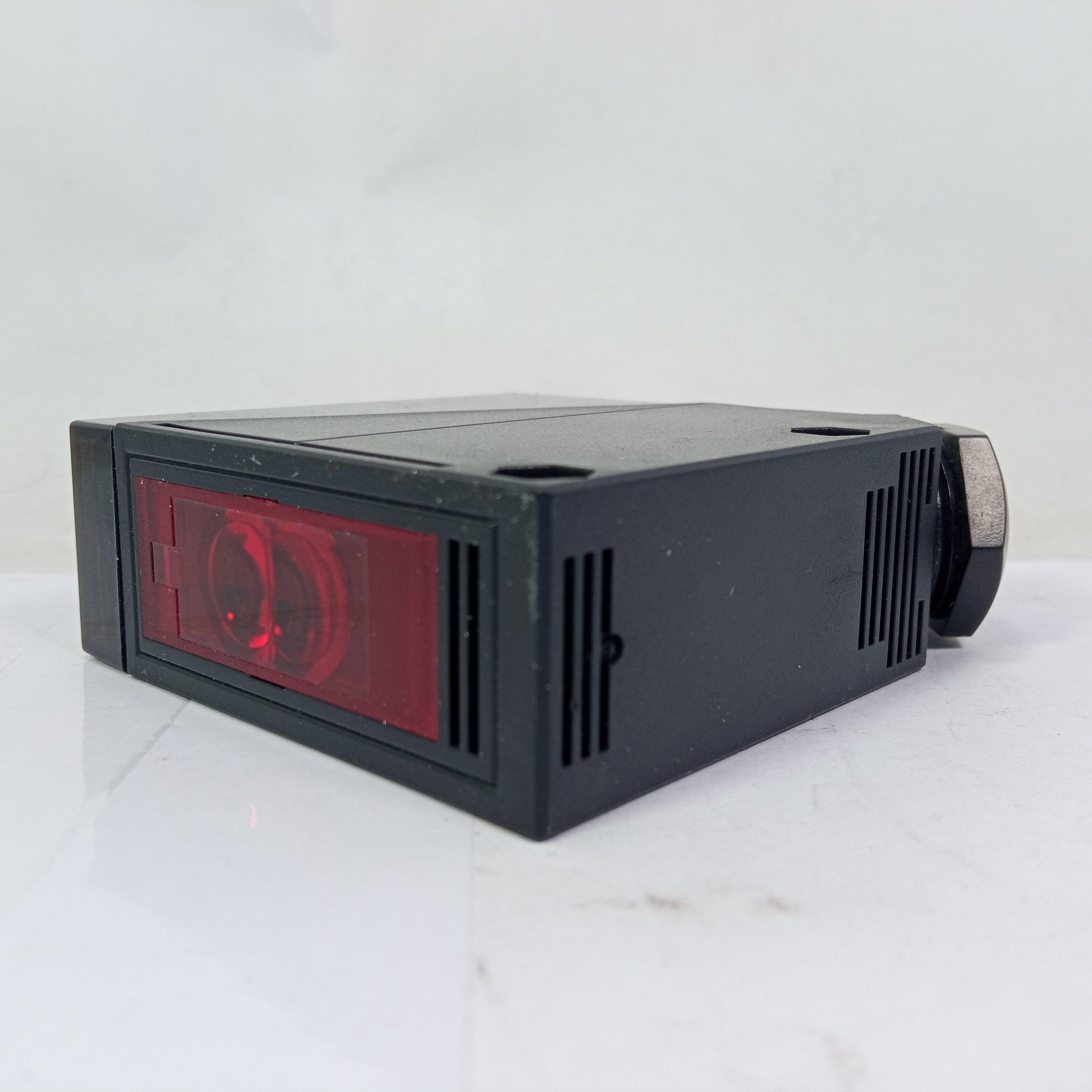

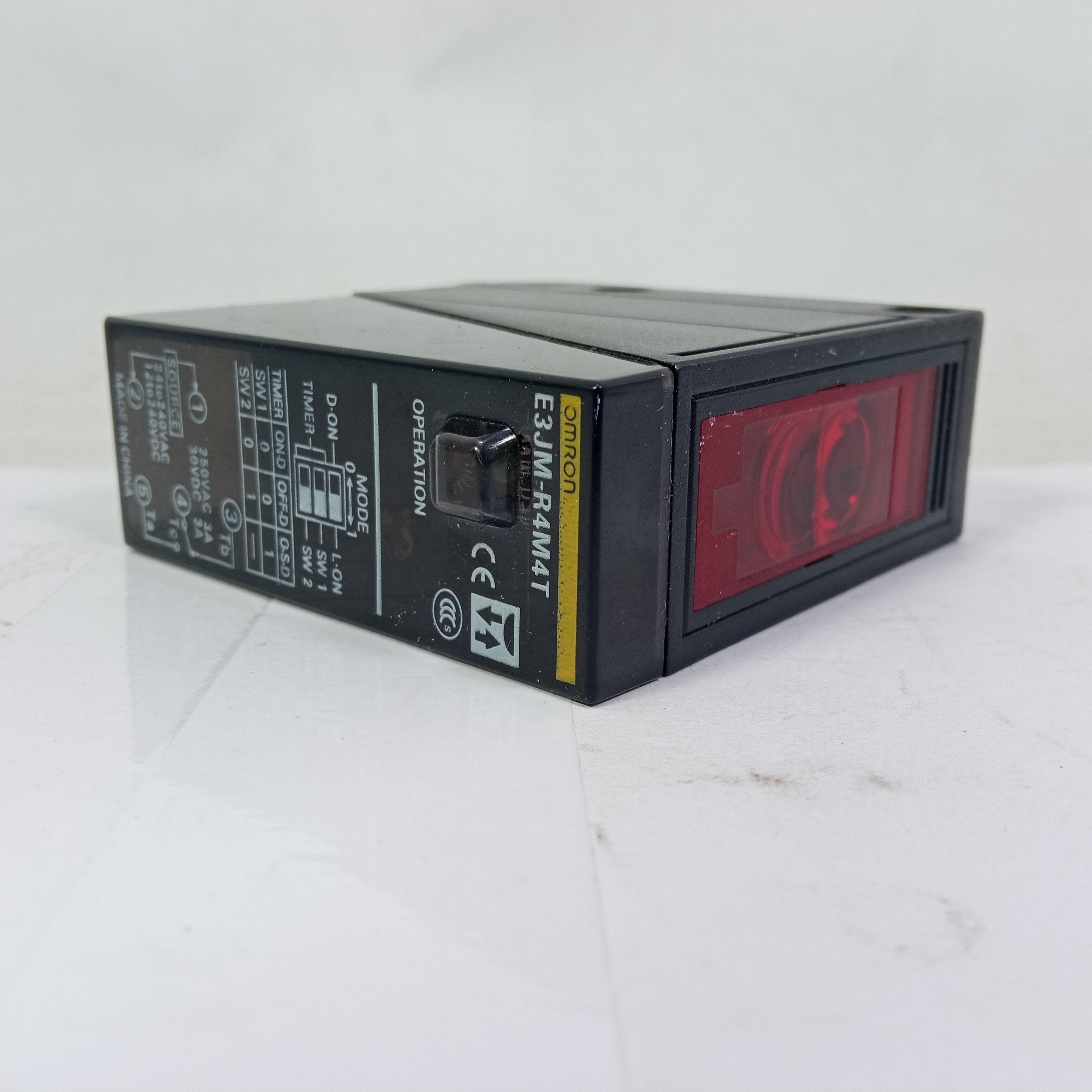

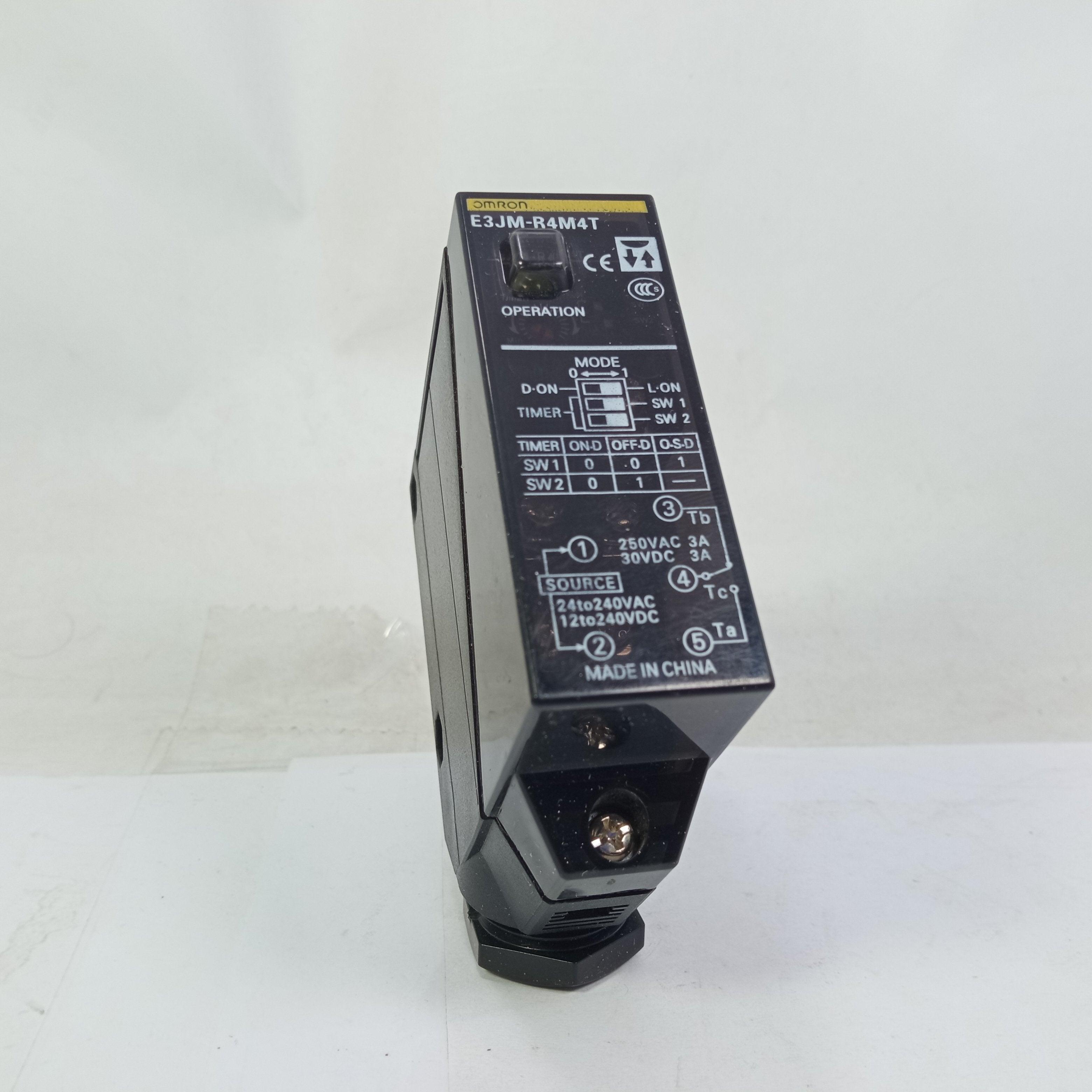

Omron E3JM-R4M4T Photoelectric Type Retro-Reflective Sensor

Omron E3JM-R4M4T Photoelectric Type Retro-Reflective Sensor In Pakistan BR6669 Description: Omron E3JM-R4M4T Photoelectric Type Retro-Reflective Sensor Specification: Shape Square type Sensing method Retro-reflective with M.S.R. function Sensing distance When using the E39-R1: 4 m Standard sensing object Opaque: 75 mm dia. min. Directional angle 1 to 5° Light source Red LED (660 nm) Power supply voltage 24 to 240 VAC±10% 50/60 Hz 12 to 240 VDC±10% ripple (p-p) 10% max. Power consumption 2 W max. Control output Relay output (SPDT) 250 VAC 3 A (cosφ= 1) max. 5 VDC 10 mA min. Life expectancy (relay output) Electrical: 100 thousand times or more (switching frequency 1800 times/hour) Mechanical: 50 million times or more (switching frequency 18000 times/hour) Operation mode Light-ON/Dark-ON selectable Response time Operate or reset: 30 ms max. Timer function Select from ON-delay, OFF-delay, or One-shot delay 0.1 to 5 s Ambient illuminance Incandescent lamp: 3,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -30 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 45 to 85% (with no condensation) Ambient humidity range (Strage) 35 to 95% (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 2000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Malfunction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s 2 3 times each in X, Y and Z directions Malfunction: 100 m/s 2 3 times each in X, Y and Z directions Degree of protection IEC: IP66 Connection method Terminal block models Indicator Operation indicator (red) Weight Package: Approx. 160 g Accessories Instruction manual, Mounting bracket, Nut, Terminal protection cover, One set of cable connection nuts, Reflector Material Case: ABS Lens: Methacrylate resin Cover: Polycarbonate Mounting Bracket: Iron Package Include: 1 x Omron E3JM-R4M4T Photoelectric Type Retro-Reflective Sensor
