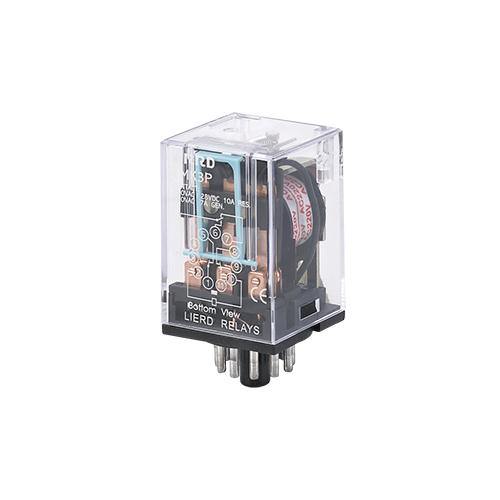

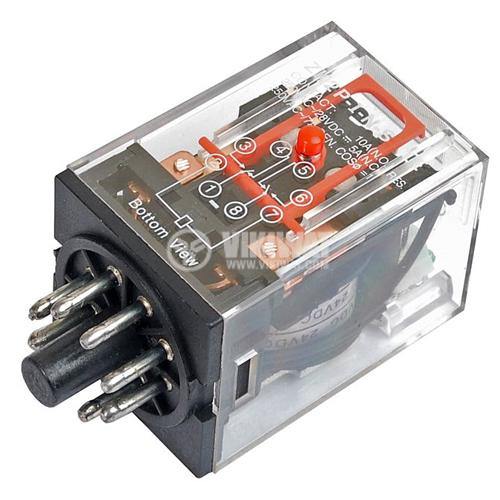

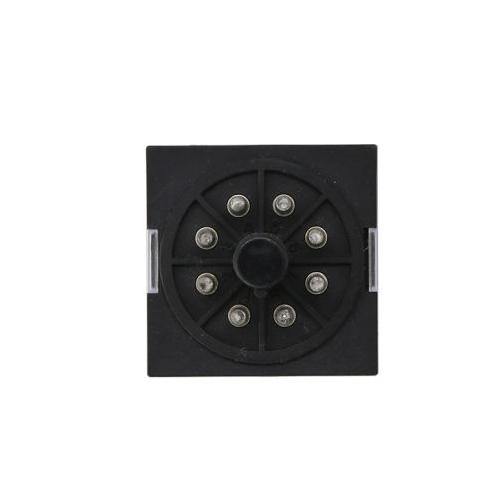

LMk2p Electromagnetic Relay 10A 250VAC - 24VDC

LMk2p Electromagnetic Relay 10A 250VAC in Pakistan Br3130 Description: Electromagnetic Relay LMk2p/universal Relay/10a Relay, Find Complete . LMk2p from Relays Supplier or Manufacturer-Zhejiang Lirrd Relays Enterprise Co., Ltd.  Resistance Performance Of Contactor Capacity, 10A/28VDC, 10A/250VAC. Specification: Model LMK-2P Dimensions(mm) 34.5*34.5*52.5 Contact Form 2Z 2H 2D Contact Material Silver Alloy Resistance Performance Of Contactor Capacity 10A/28VDC, 10A/250VAC Coil Power at 23°C DC(W) ≤1.5W AC(VA) ≤2.5VA Coil Voltage DC(V) 6~220V AC(V) 6~380V Pick-up Voltage at 23°C DC≤75%  AC≤80% Drop-out Voltage at 23°C DC≥10%  AC≥30% Max Voltage at 23°C 110% Contact Resistance(at 6VDC 1A) ≤100mΩ Dielectric Strength Between Open Contacts ≥1200VAC 50Hz/1min Leakage Current 1mA Contacts Pieces ≥1500VAC 50Hz/1min Leakage Current 1mA Between Coil & Contacts ≥1500VAC 50Hz/1min Leakage Current 1mA Insulation Resistance(MΩ) at 500VDC ≥100MΩ Service Life Electrical 10^5 Times(Frequency: On 1 Time/1S,Off 1 Time/1S) Mechanical 10^6 Times(Frequency:300 Times/1min) Ambient Temperature -25°C ~ +55°C Terminal Type Insert Type Suitable Socket LPF083A LPF083A-E LPL08 LPF113A LPF113A-E LPL11 Product Weight 76g 80g Same Reference JTX Universal Package Include: 1 x Mk2p Electromagnetic Relay 10A 250VAC
