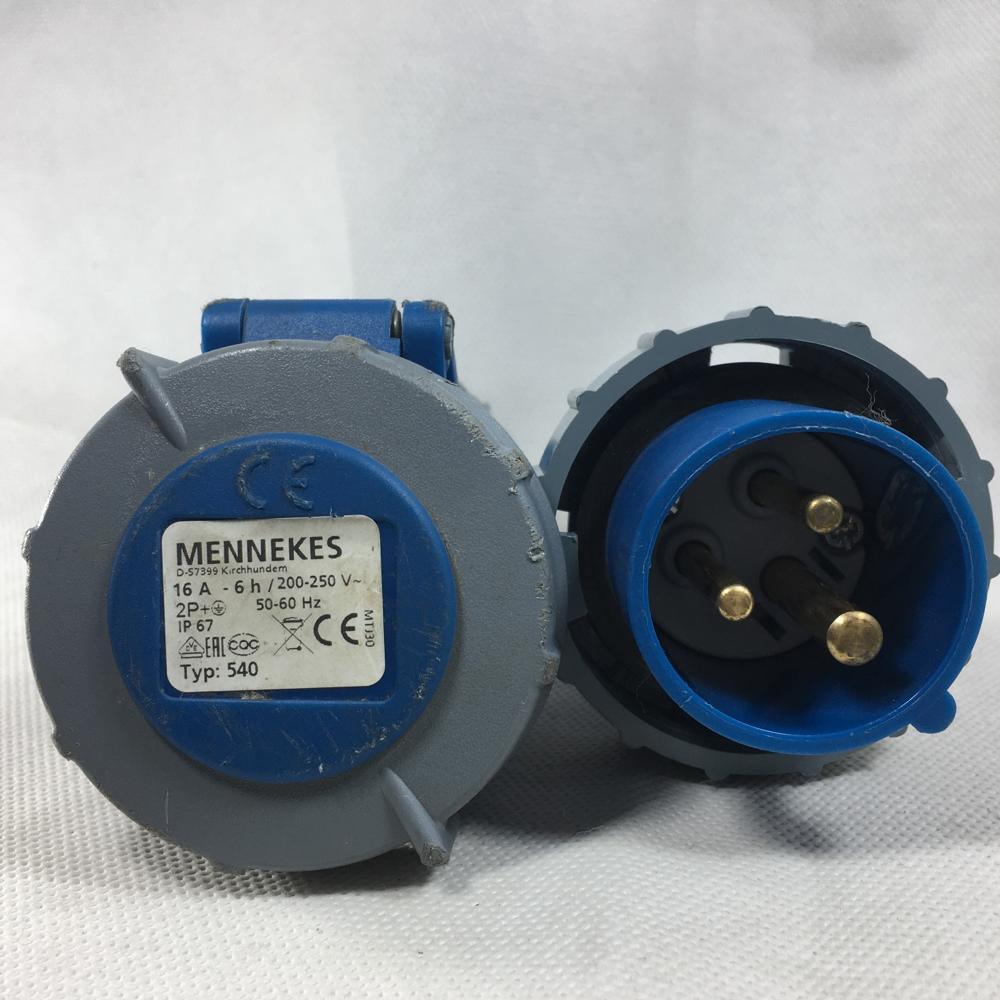

MENNEKES TYP 540 Screw Terminals Single Body 16A 3pin industrial socket in Pakistan

From Mennekes, the AM-TOP series of IP67 CEE industrial cable mount connectors are robust, reliable and easy to connect. Constructed from a toughened Amplest plastic, these watertight sockets feature an easy open and closing hinged lid providing protection for the sockets inner contact apertures when not in use. A tight rubber seal on the inner lid and a secure bayonet locking ring system ensures a waterproof seal. A rugged cable gland at the rear with integrated strain relief provides extra protection and prevents cable kinking. Ergonomically designed the AM-TOP series of BS4343 connectors perform exceptionally well in the most demanding environments. Specification: Current Rating 16A Plug/Socket: Socket Voltage Rating: 230 V Mounting Type: Cable Mount IP Rating: IP67 Color: Blue Body Orientation: Straight Termination Method: Screw Terminal Series: AM-TOP Cable: CSA 1 → 2.5mm² Minimum Operating Temperature: -25°C Maximum Operating Temperature: +55°C Low Voltage: No Package includes: 1 x MENNEKES TYP 540  Screw Terminals Single Body Facebook Instagram Pinterest
