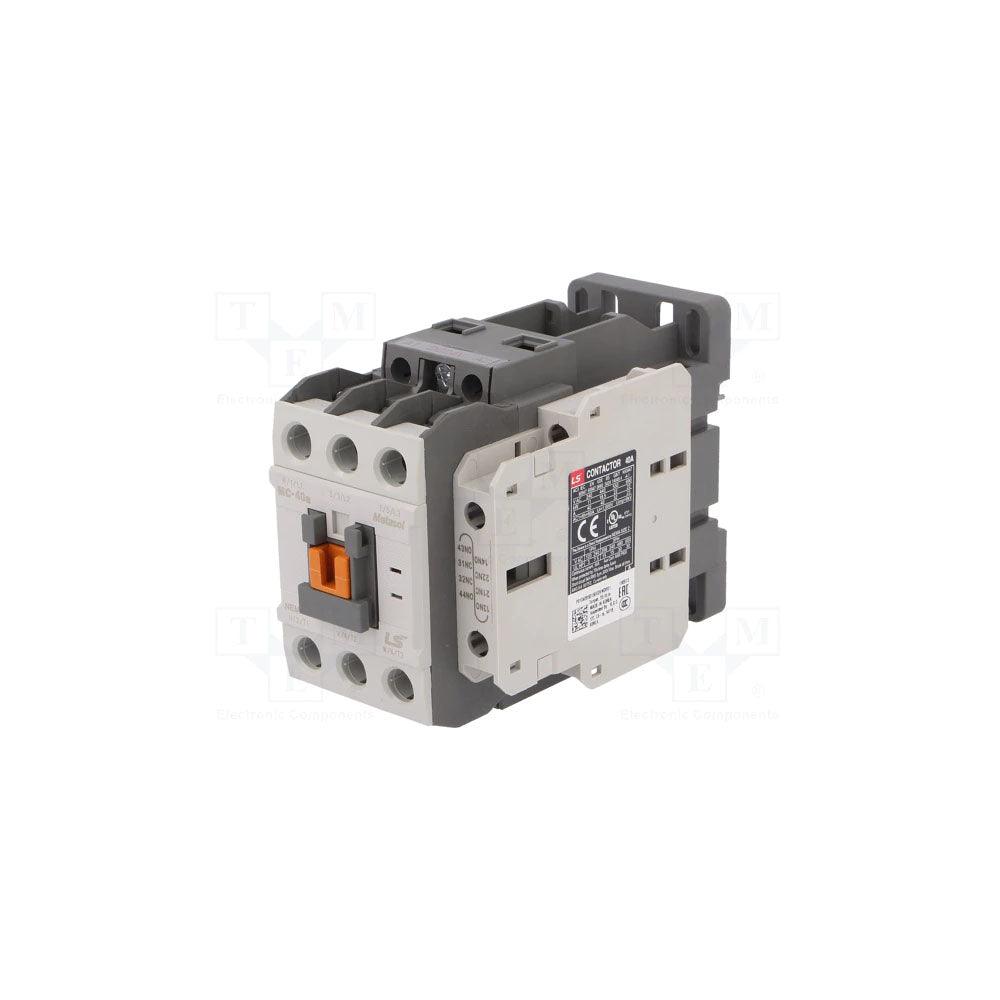

The LS Meta sol range of contractors provides trouble-free switching and maximum protection for motors and other electrical equipment. They are compact, easy to install, and extremely reliable.
https://youtu.be/_tNSz7n56iE
Features:
Compact design for space-saving
DIN rail and screw mountable
Finger-proof design
The broad range of accessories
World-class products conforming to IEC and UL standards
Specification:
Model: MC-40a
Amp Rating : AC3 40A
Coil Voltage: 240VAC
3-pole(NO) main contact
Finger proof design
DIN rail or screw mountable
Front/side mountable accessories available
1NO and 1NC Auxiliary contact built-in as standard.
Made in Korea
Contactor LS MC-40a,MC-65,MC-75,MC-85,MC-100
Rated current 40A ,50A,65A,85A
Capacity 18.5kw/25hp
The number of poles 3P.
Additional contact: 1NO or 1NC.
Coil Voltage 220v.
Working temperature -5 to + 55 ° C.
Package Includes:
1 x LS Meta sol Magnetic Contactor
