The LS Meta sol range of contractors provides trouble-free switching and maximum protection for motors and other electrical equipment. They are compact, easy to install, and extremely reliable.
Features:
Compact design for space saving
DIN rail and screw mountable
Finger-proof design
A broad range of accessories
World-class products conforming to IEC and UL standards
Specification:

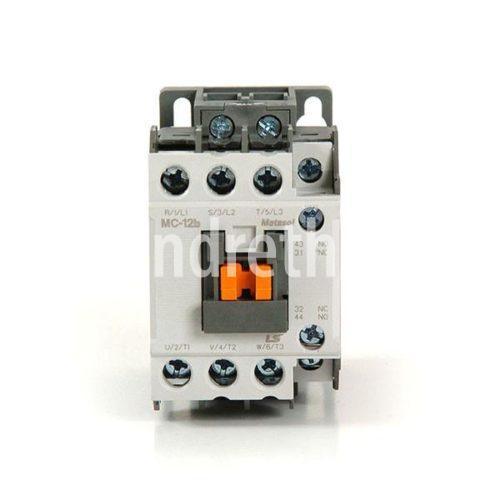

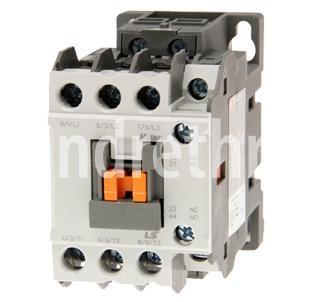

Contactor LS MC-12b
Rated current 12A (load AC3 voltage 380 / 440V)
Capacity 5kw/7.5hp
Number of poles 3P.
Additional contact: 1NO or 1NC.
Coil Voltage 220v.
Working temperature -5 to + 55 ° C.
IP20 protection rating.
Uses
Controlling electric motors
Switching power circuits
Industrial automation systems
Control panels and switchboards
Factory and machinery applications
Package Includes:
1 x LS MC-12b Meta sol Contactor
