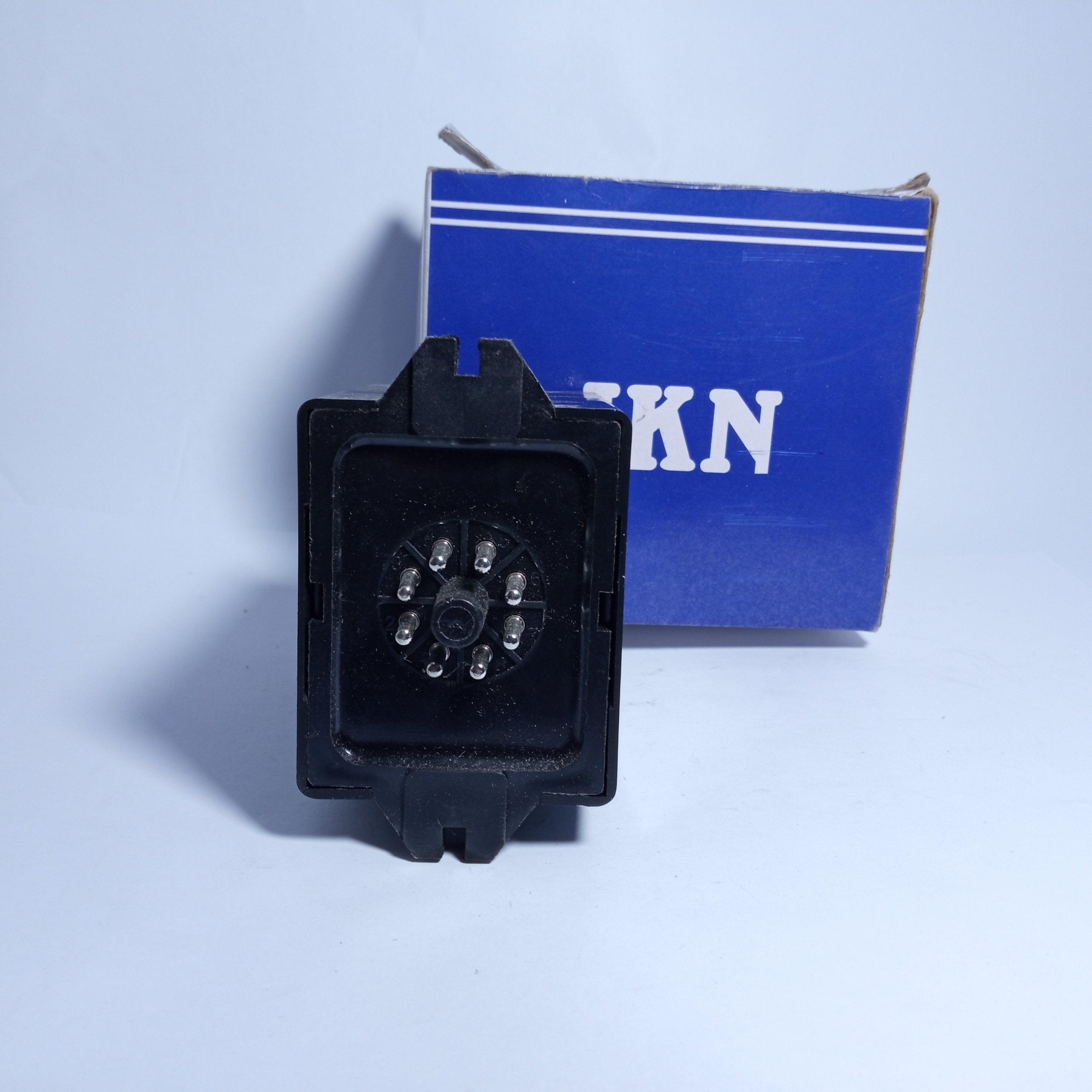

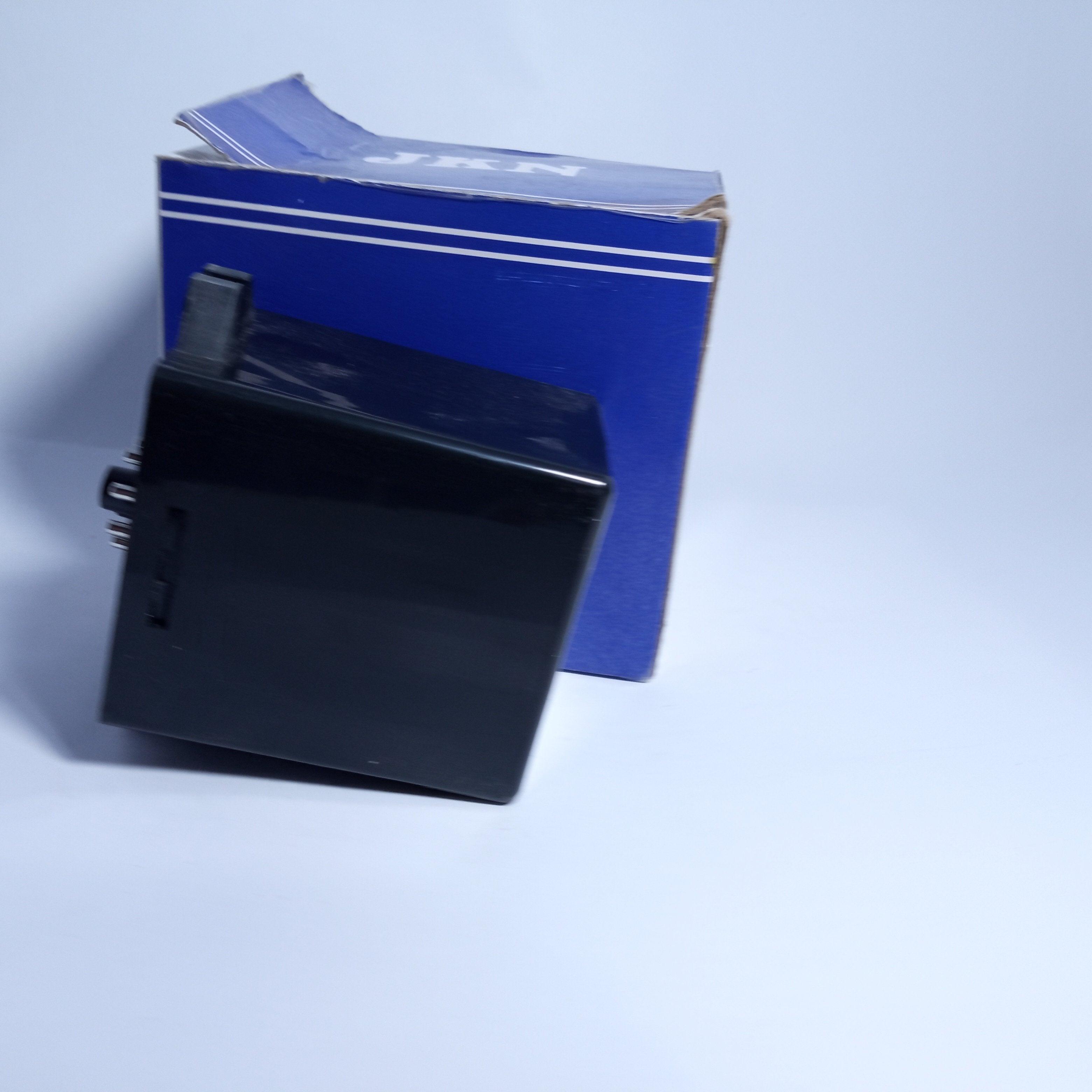

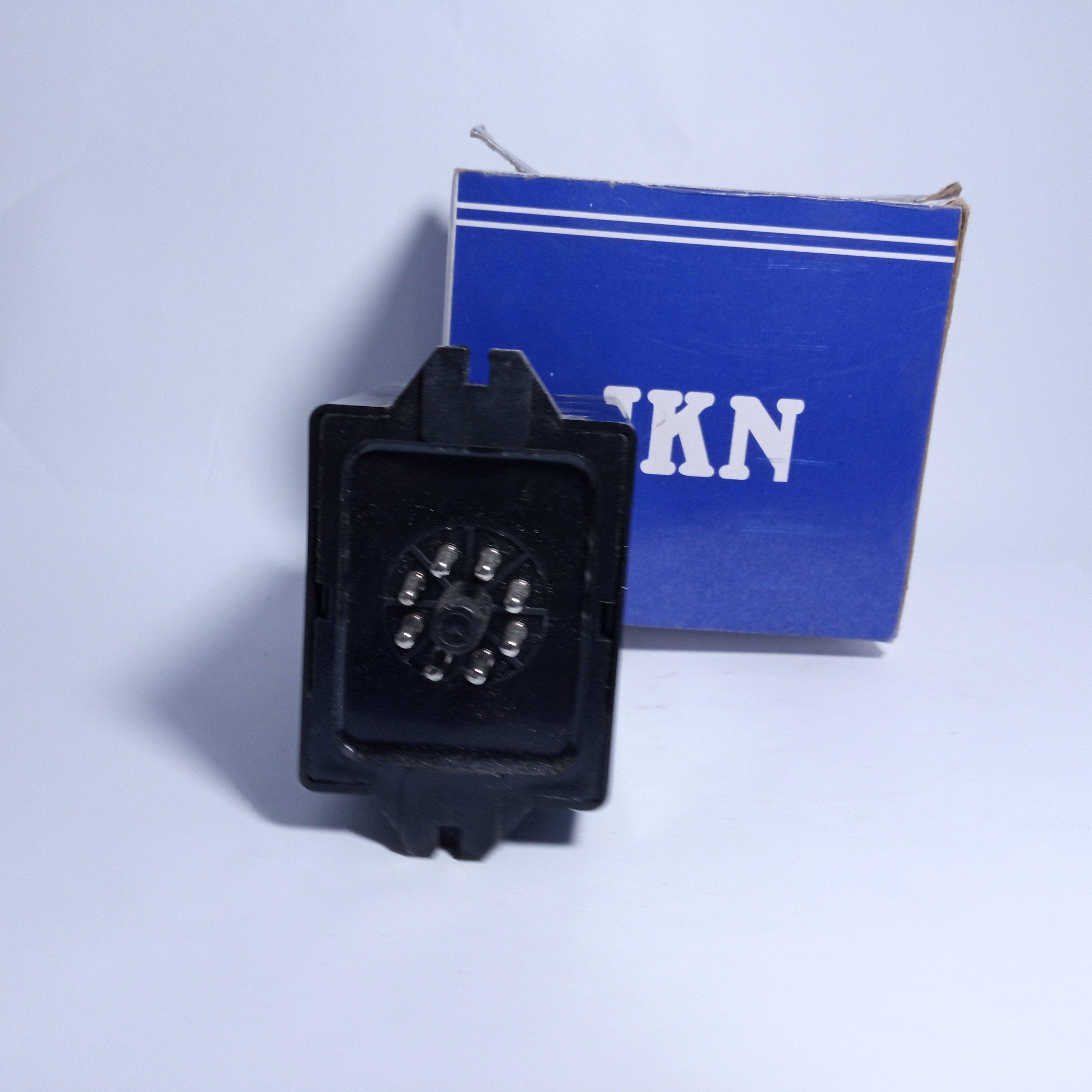

JKN JVM-1 Phase Failure Voltage Monitor

JKN JVM-1 Phase Failure Voltage Monitor in Pakistan BR5305 Features: Phase sequence failure and Lack of phase protection relays. Available 3 wire Power Supply :3 x 110V AC, 3 x 220V AC, 3 x 380V AC, 3 x 400V AC , 3 x 415V AC,50/60Hz. Contact output: 10 A at 250 VAC/30 VDC, resistive load. Socket mounted with a PF083A(E) Socket Contact version: SPCO output LED fault indication Specifications: Product Type JVM-1 Dimensions   (mm) 61H × 49W × 70D Mouniing & Socket PF083A(E) Functions To prevent the reverse run  of three-phase induction motor In addition, the power surge absorber to prevent high voltage, which can effectively protect the load With phase sequence, phase lack protection function Life Mechanical               5×10 6 times Electrical                  1×10 5 times Rated voltage AC(V):220,240,380,415,440, 50/60Hz Indicator  operating Normal Operating Contact rating 10A 250VAC(Resistive load) Insulation resistance 100MΩ(DC 500V)min Dielectric strength 1500VAC Consumed power 2VA Ambient temperature -10℃~+55℃ Ambient humidity 48~85%RH Weight 90g Package Includes: 1 x JKN JVM-1 Phase Failure Voltage Monitor
