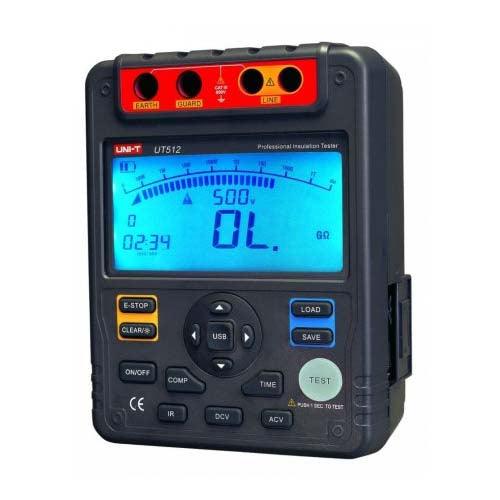

UNI-T UT512 is an insulation tester that is designed to measure the insulation resistance in the range from 0.5 MΩ to 100 000 MΩ with a test voltage of 500 to 2500 V. Features: Large 9999 display with 30-segment analog bar graph. PI/DAR measurements. Comparison, upper and lower limit functions. Continuous measurement mode. Auto power off. 18-group data storage. Backlight. Auto current discharge and high-voltage output alarm. Specifications: Display: 9999 digits LCD, with backlight, 123 × 58 mm Insulation resistance measurement: Range 0.5 MΩ ~ 100 GΩ Accuracy ±(3%+5) Testing voltage Range: 500 V / 1000 V / 1500 V / 2500 V Accuracy: 0 ~ 20% DC voltage: Range 600 V Accuracy :±(2%+5) AC voltag e:Range 600 V Accuracy ±(2%+5) Power:1 .5 V alkaline battery (LR14) (8 pcs.) Dimensions :(H × W × D), mm 202 × 155 × 94 Weight , kg:1.8 kg Package Include: 1 x Insolation Tester UNI-T UT512 in Pakistan
