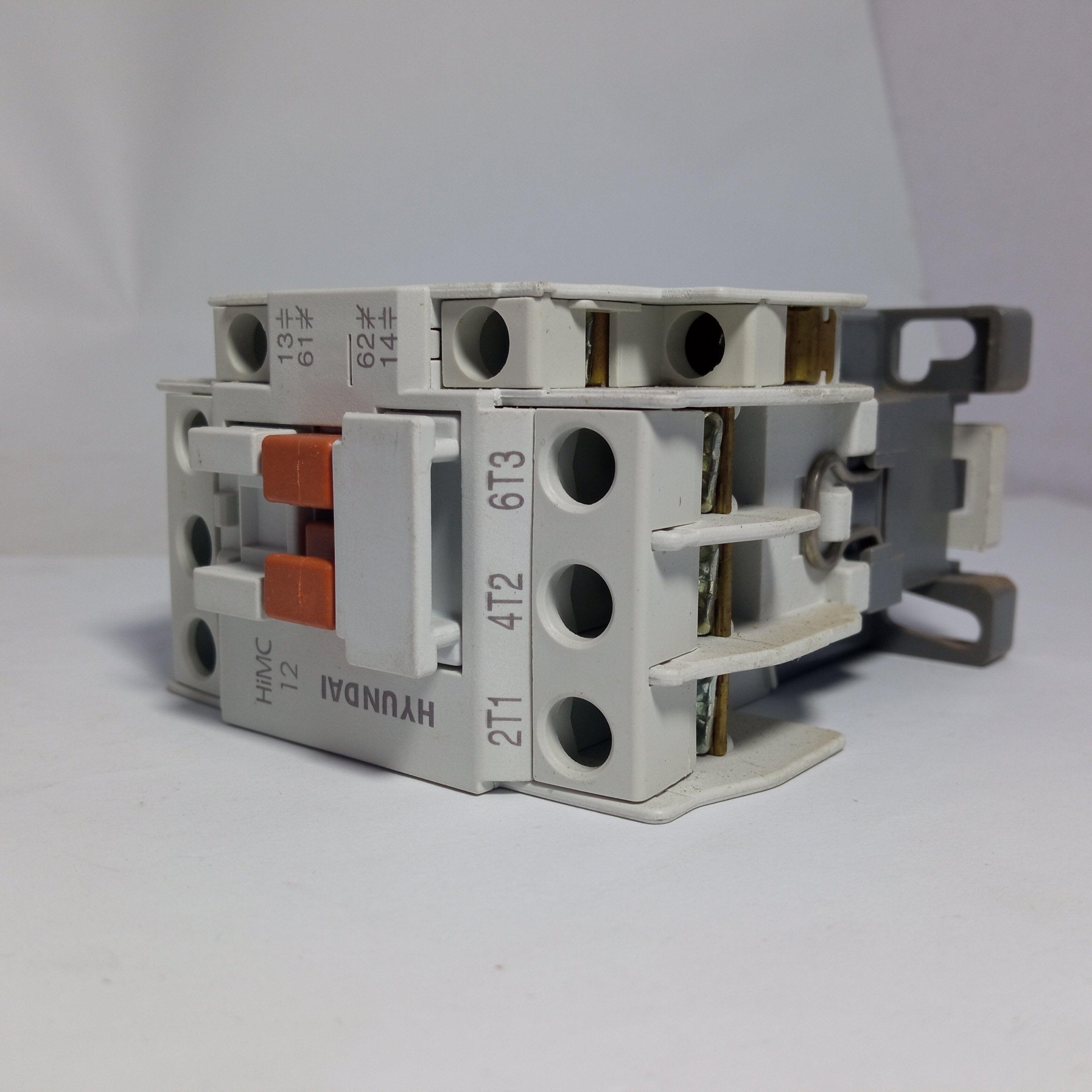

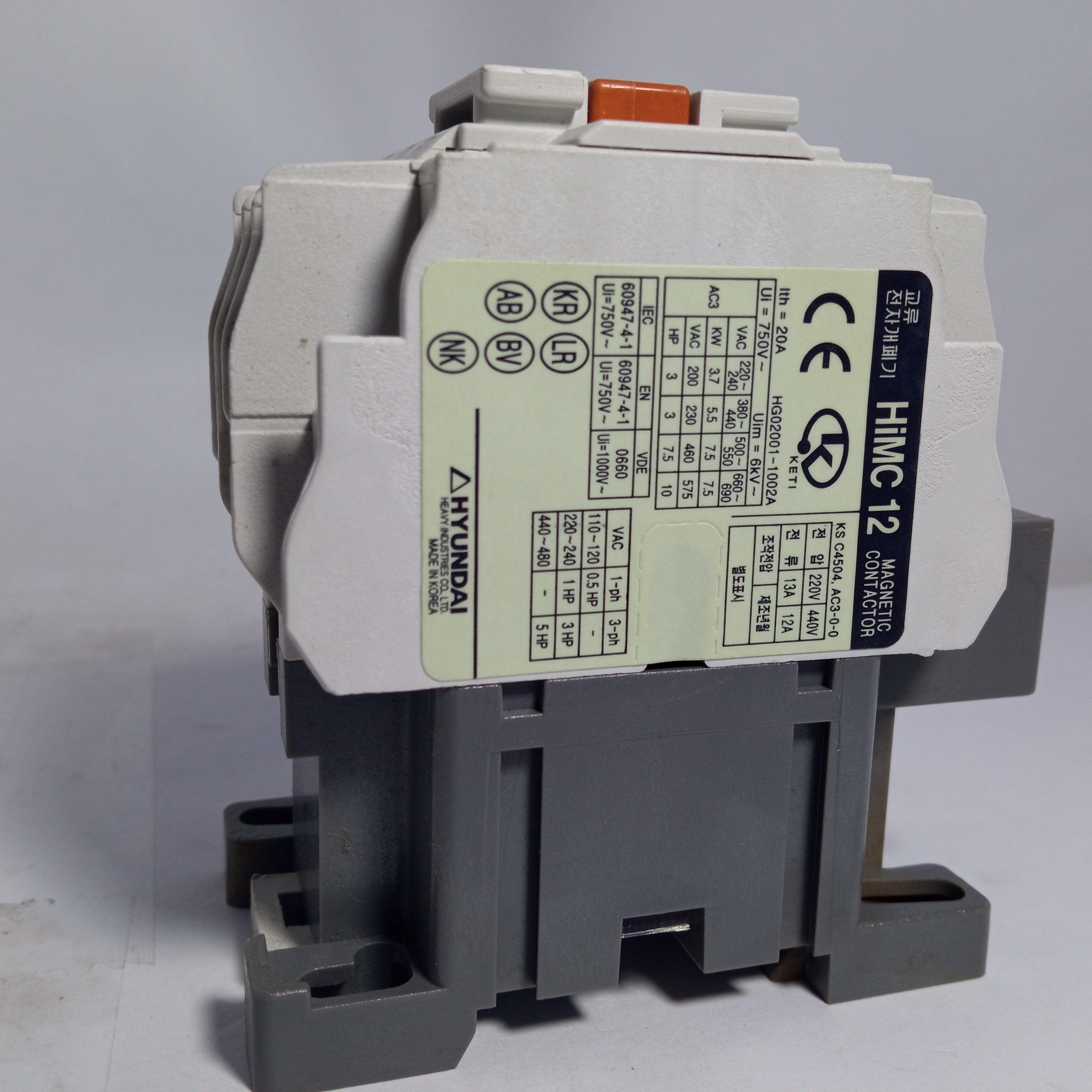

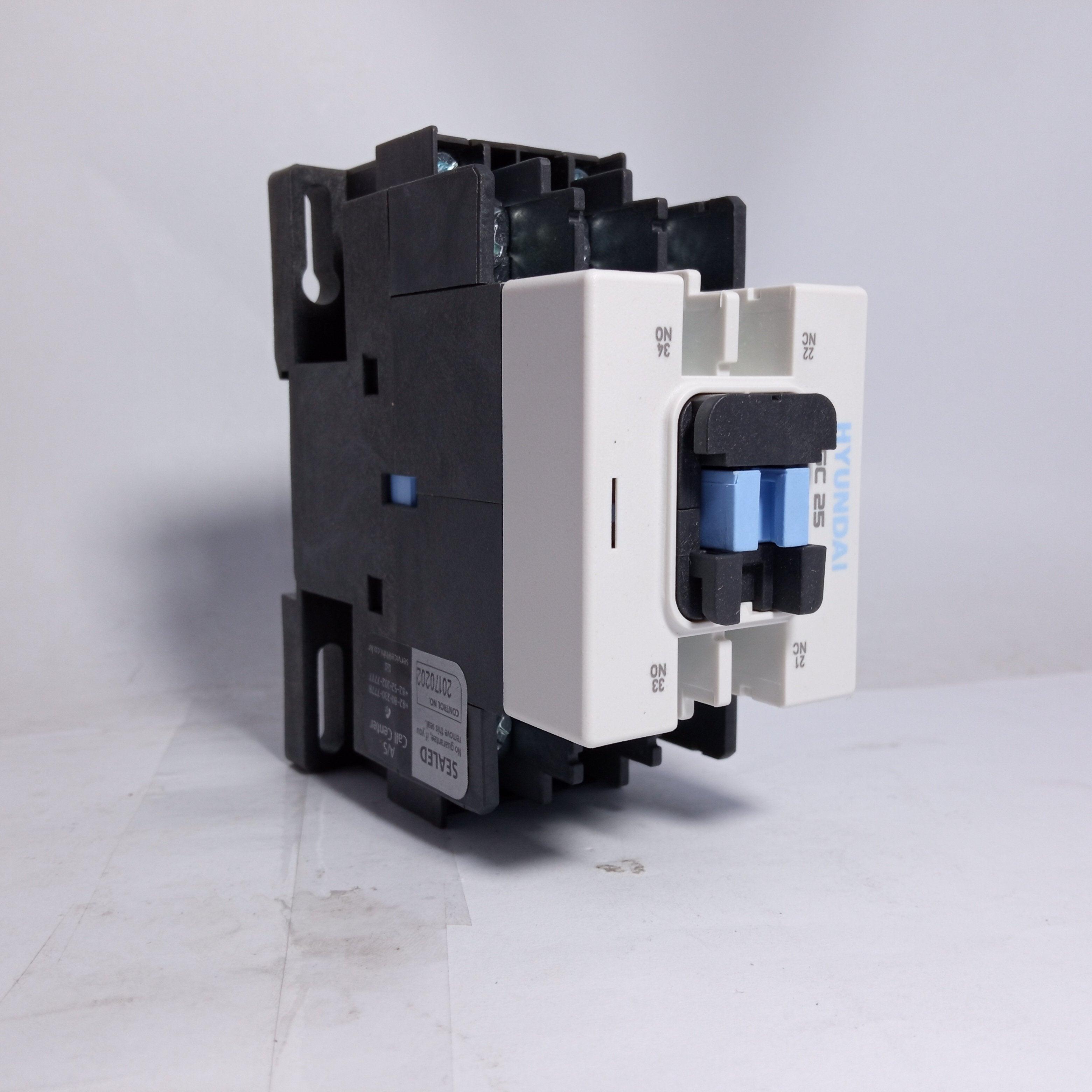

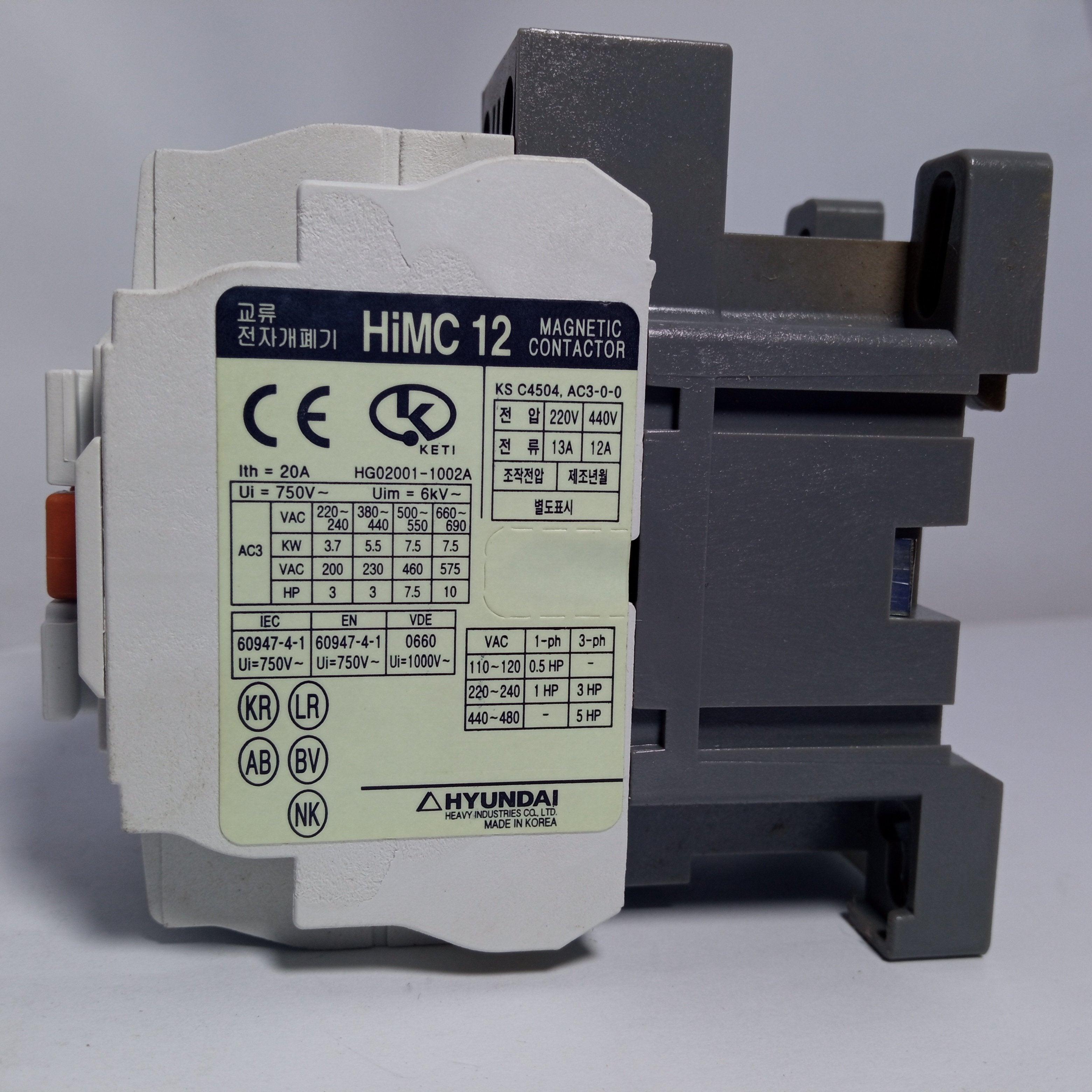

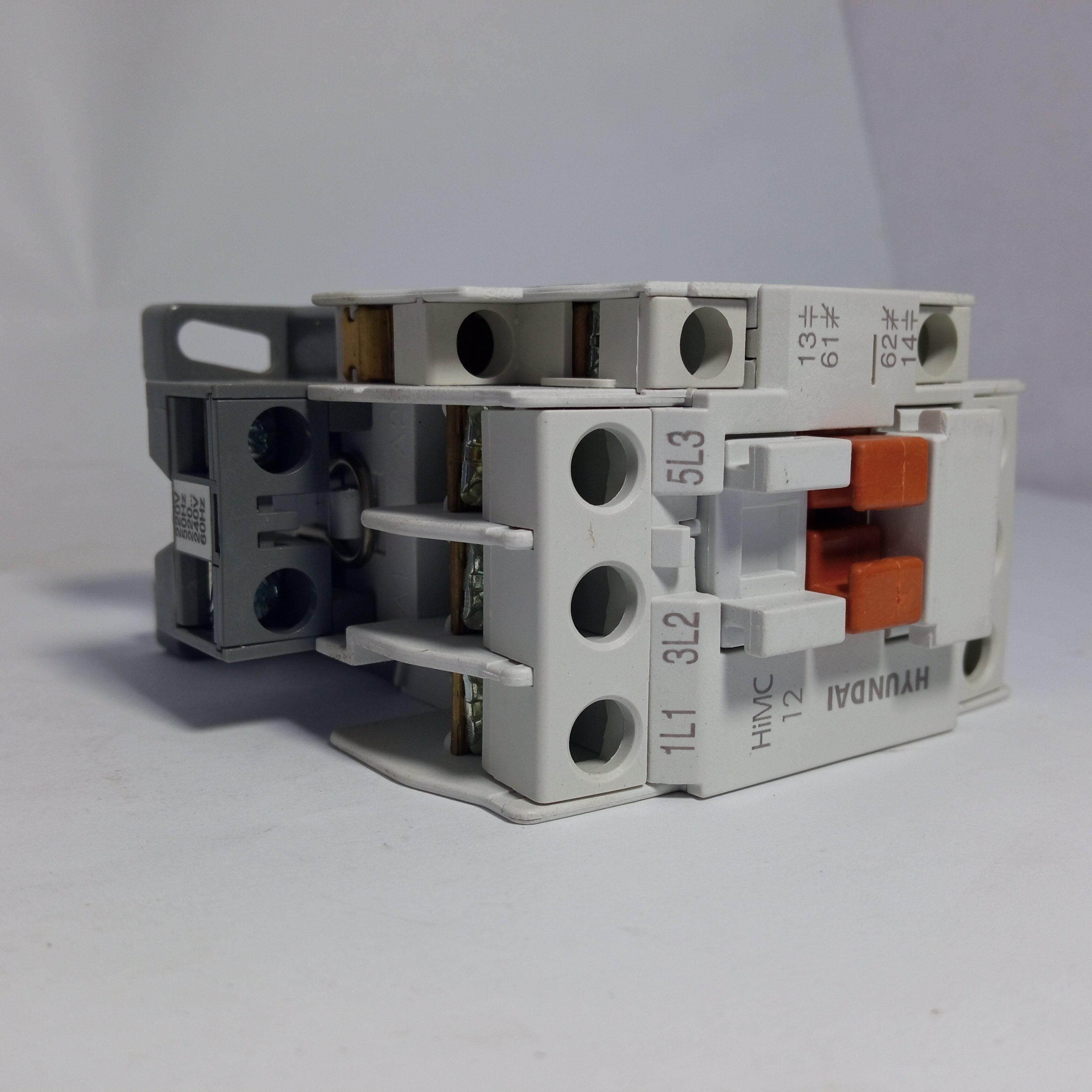

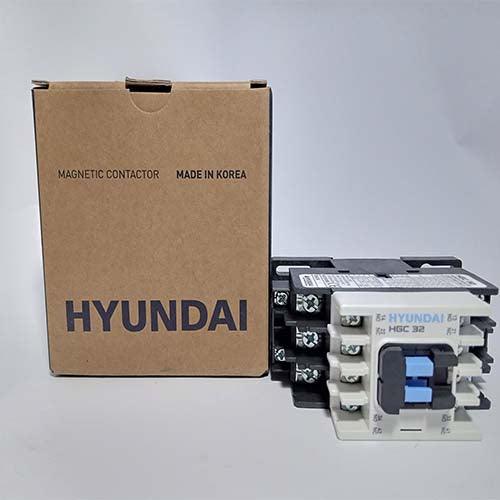

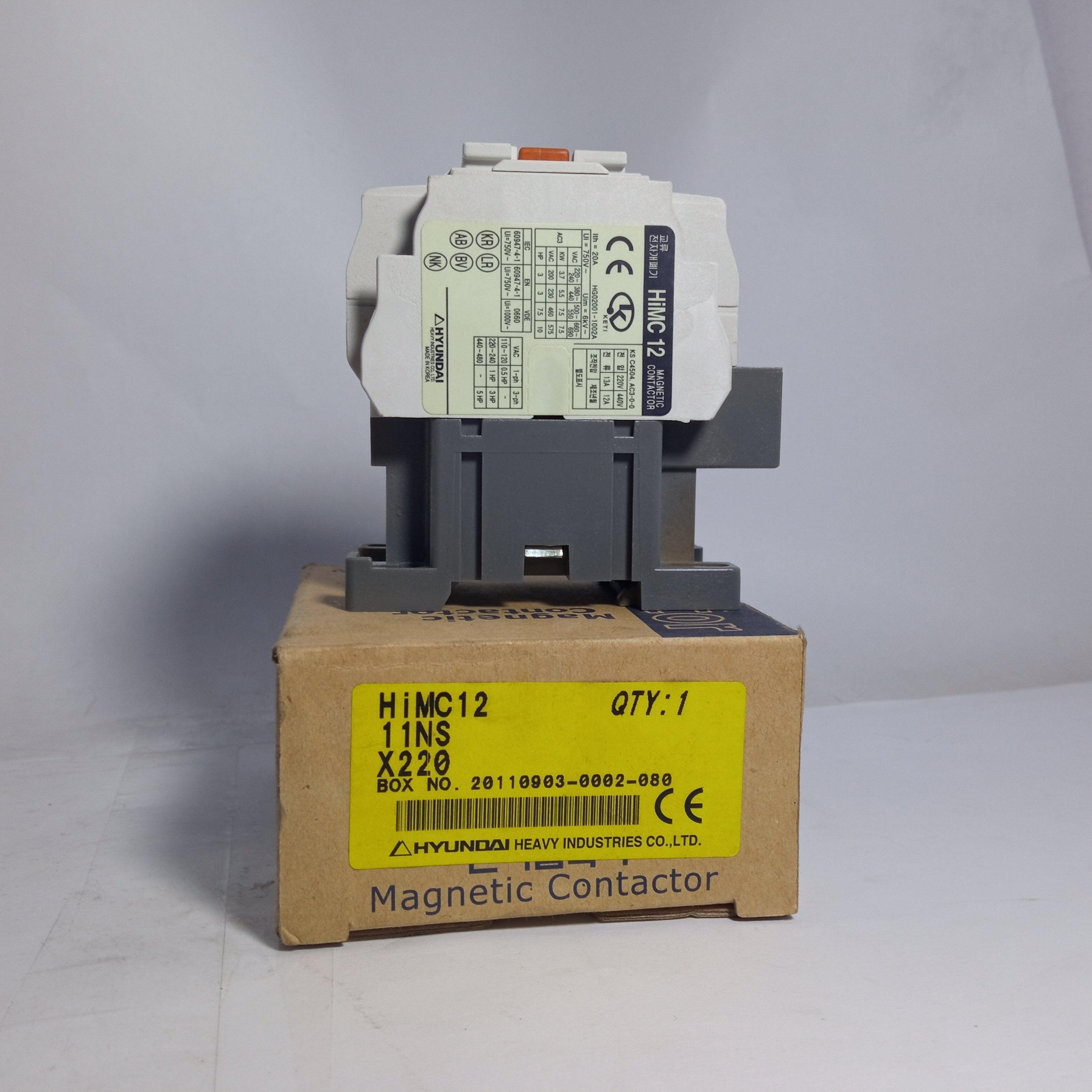

Hyundai HGC32 HG-Series Contactors And Overload Relay in Pakistan - HGC 12

Overload relays protect the motor, motor branch circuit, and motor branch circuit components from excessive heat from the overload condition . Overload relays are part of the motor starter (assembly of contactor plus overload relay). They protect the motor by monitoring the current flowing in the circuit. Features: Various Product Ranges: 9 - 800 A (8 frames) Rated Insulation Voltage: 1000 V (50 A -) Reduced Installing Space by Upper Arrayed Structure of Auxiliary Contacts Direct Mounting Structure for Thermal Overload Relay Power Consumption Reduction Type Auxiliary Relay Safety Protection Cover for TOR AC/DC Free Voltage (115 A -) Specifications: CURRENT AC Rated Thermal Current 55 V SUMMARY Capacity 15 KW / 20 HP (IEC/AC3 at 380/440V) Weight AC / DC : 0.5 , 0.65 Size 2 VOLTAGE AC Rated Operational Voltage 690 V HARDWARE FEATURES Current Rating 55 A Number of Poles 3 Poles TECHNICAL SPECIFICATION Coil Voltage 24, 48, 110, 220, and 415VAC 50Hz Operational Current 32 A (AC3 at 380/440V) Rated impulse voltage 6 kV Rated Insulation Voltage 750 V GENERAL SPECIFICATION Contacts 3P+2a2b Mounting method Screw & DIN-Rail Package Includes: 1 x Hyundai HGC32 HG-Series Contactors And Overload Relay
