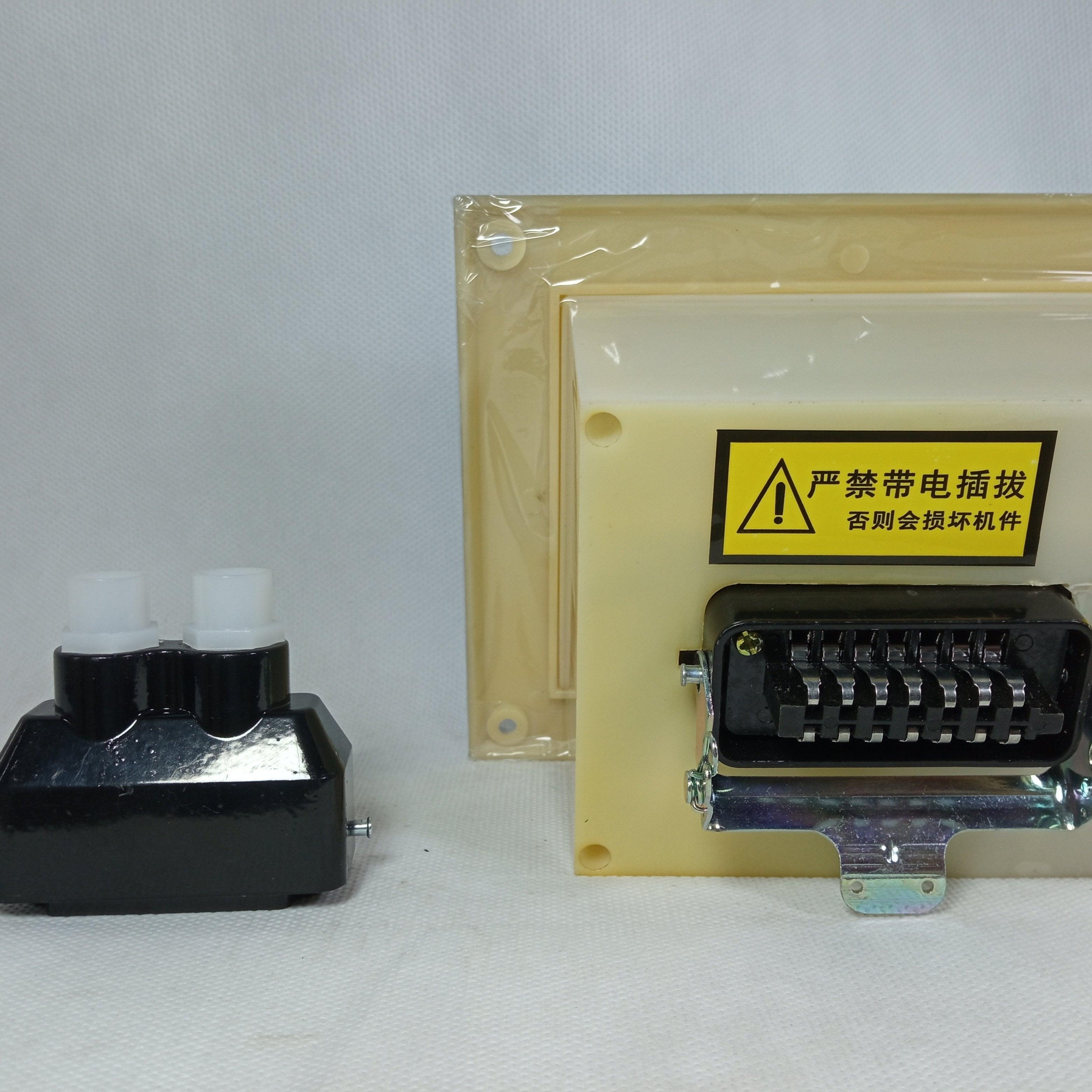

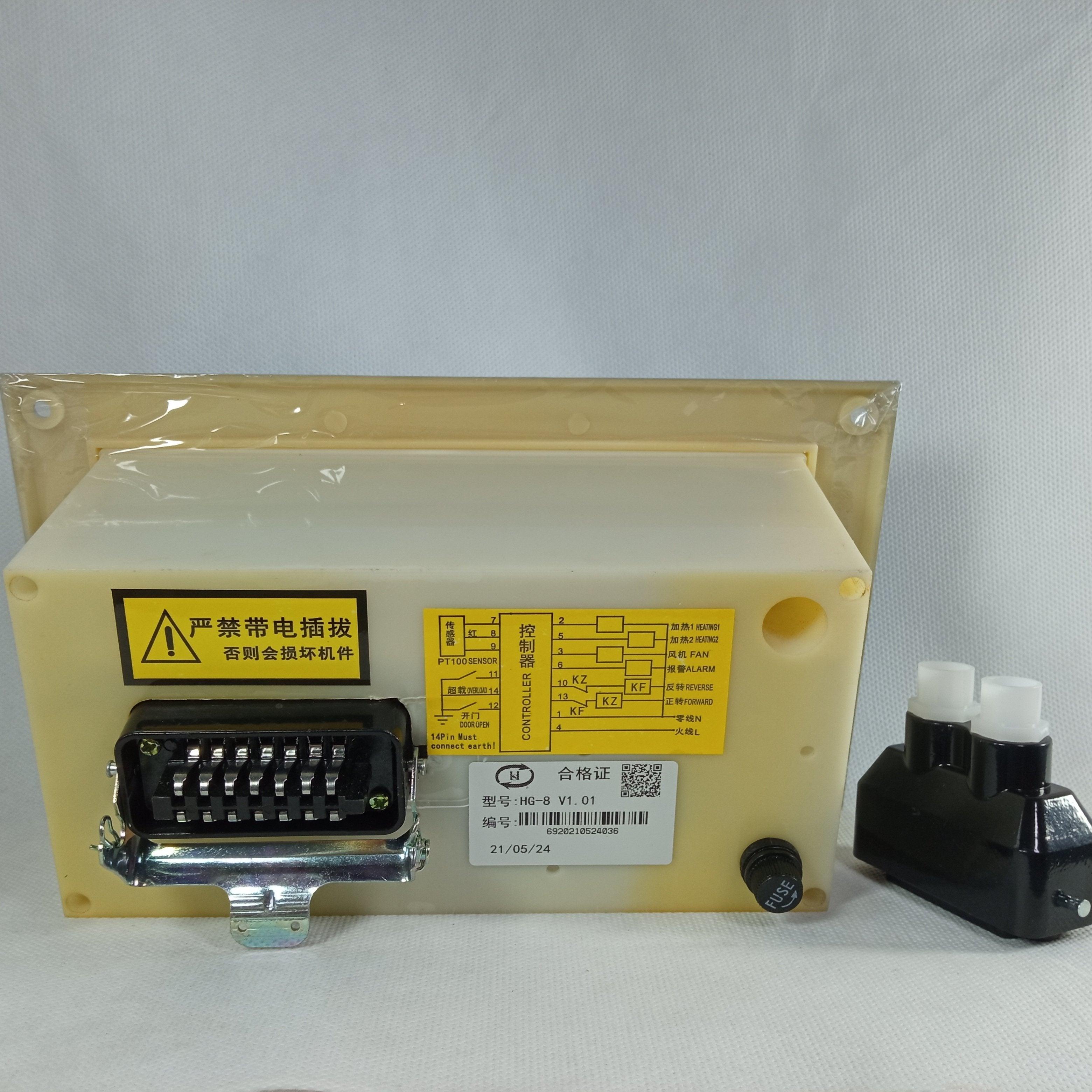

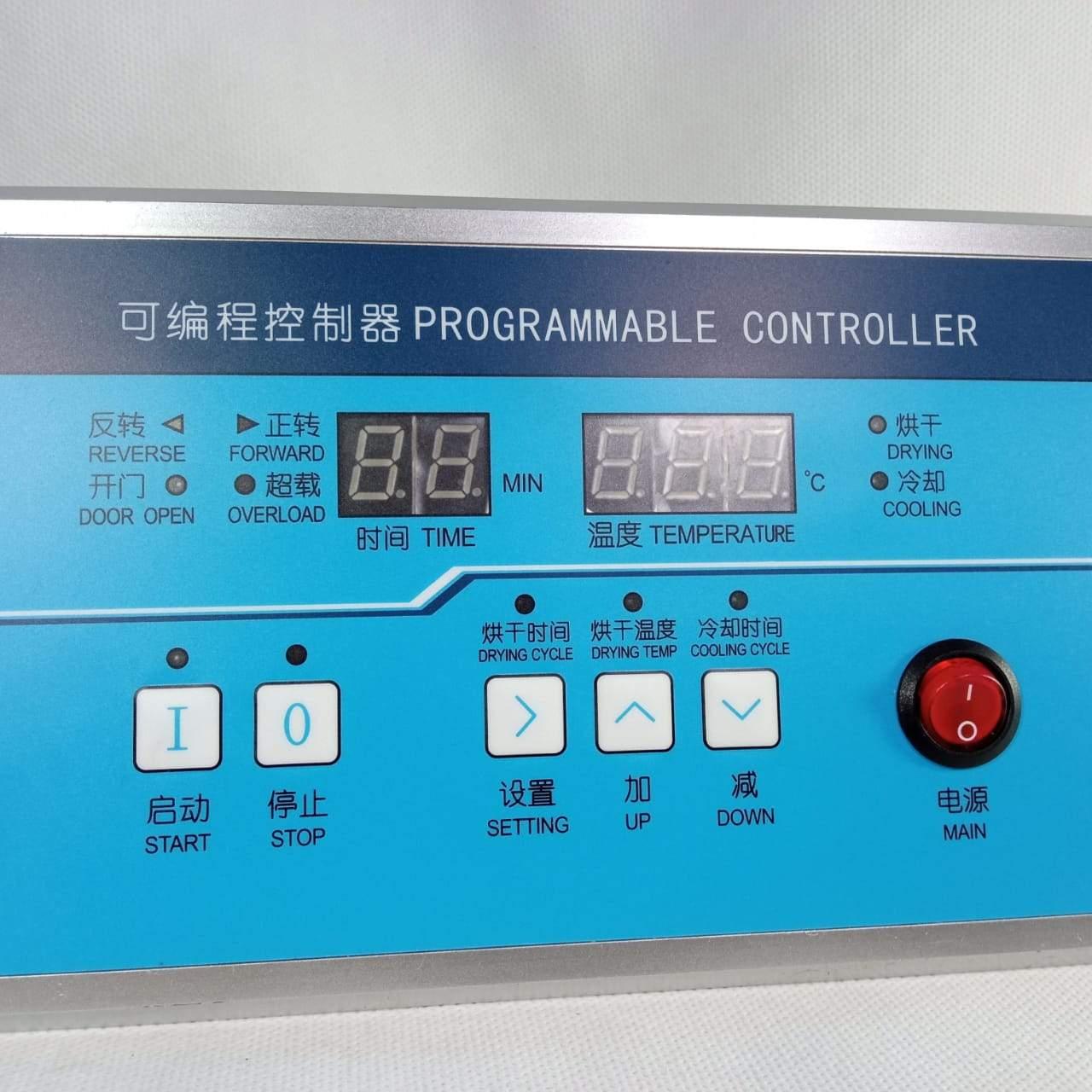

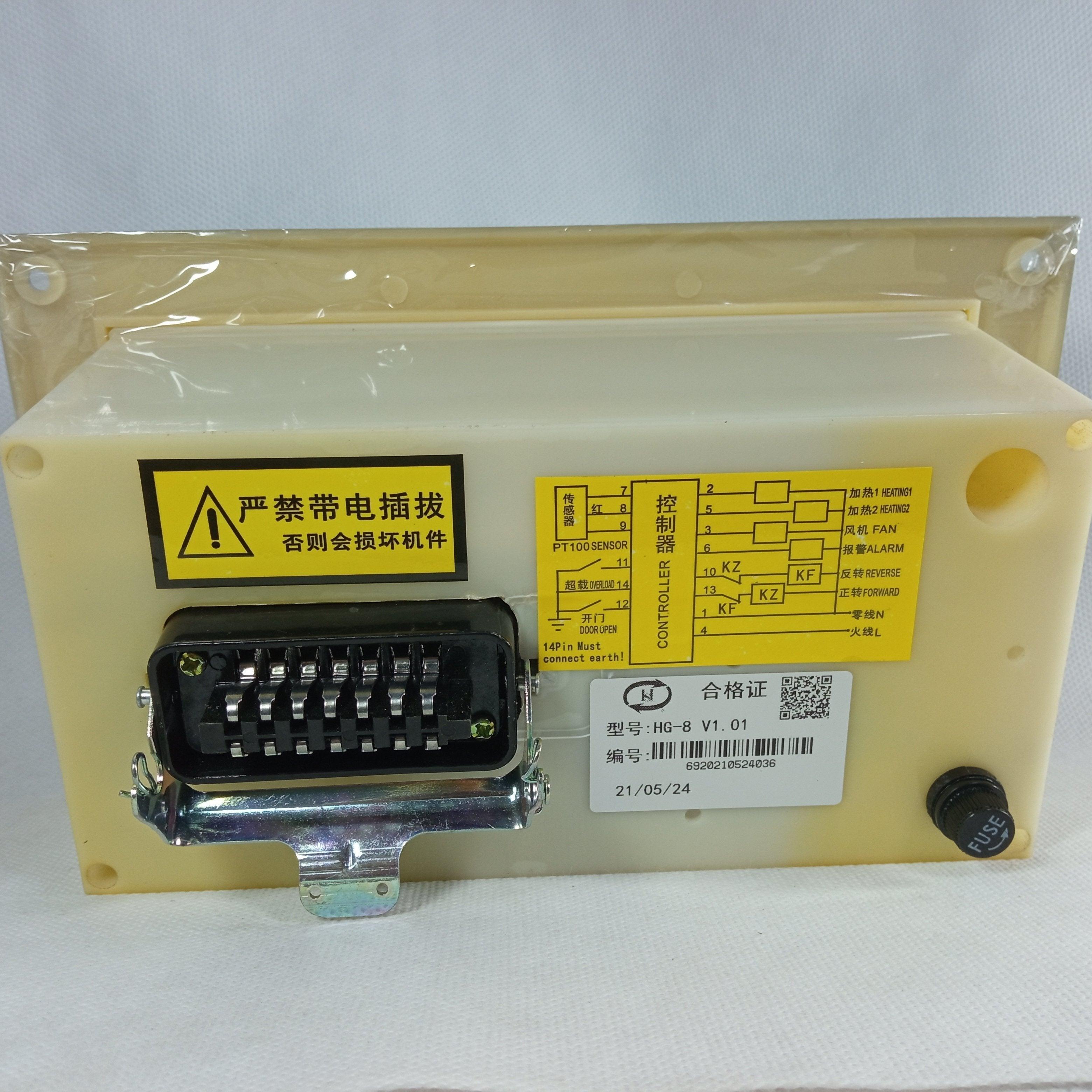

HG-8 Washing Machine Controller in Pakistan

The HG-8 Washing Machine Controller is a reliable and efficient control board designed for automatic and semi-automatic washing machines. This controller manages washing cycles, timing, water flow, and motor operations, ensuring smooth and accurate machine performance. Built with quality electronic components, the HG-8 controller provides stable operation and long service life. It is commonly used as a replacement control board in washing machines where the original controller is damaged or malfunctioning. Easy to install and compatible with many washing machine models, it is a preferred choice for technicians and appliance repair professionals across Pakistan. This washing machine controller helps restore proper washing functions, improves efficiency, and reduces maintenance costs. Suitable for home use as well as repair workshops, the HG-8 controller ensures reliable washing performance with consistent control. Whether you are repairing a washing machine or replacing a faulty controller, the HG-8 Washing Machine Controller offers a cost-effective and dependable solution. https://youtu.be/WsHPuPBe5kU Features: Control technology : It adopts an imported touch screen with Intel X86 embedded processing system and Windows operating system. Display :640×480 pixels 8.4inch high quality imported LCD screen contains all kinds of VAT structure diagrams, valve switches which are visually displayed. Language : Both Chinese and English are available. You can input the factory name. Process names can be programmed in Chinese. Storage: It has a larger storage space, which can store hundreds of different processes, each process contains a program with hundreds of steps. Data protection : It supports multi-level administrator password protections and USB disk backup. Communication: 1-channel RS485/CAN communication interface,1-channel RS422/485 communication interface,1-channel RS232 communication interface,1-channel 10/100M adaptive Ethernet interface, can be connected to the enterprise ERP, or conduct remote services through Ethernet, saving time and cost. Temperature measuring range :000ºC~153ºC Temperature control range :30ºC~145ºC Temperature control rate: 0.1~9.9ºC. Temperature control accuracy : Thermal static±0.5ºC Switch type or proportional type which controls heating or cooling is optional, with a maximum deviation ≤of 1ºC, display accuracy of 0.1ºC. Fabric speed control: minimum speed 10m/min, maximum speed 150m/min, control error 5%. Input signa l:4-channel PT100 platinum thermal resistance(for master and sub vat temperature detecting). 2-channel pulse(for flow meter, water meter, control dyeing bath ratio) 7-channel4-20mA analog input(connect with the water level of master-VAT, sub-VAT, dyestuff-VAT, nozzle pressure, PH current signal) PLC: Maximum, medium, minimum water level switch signal of master VAT, Sub-Vat and dyestuff VAT, main pump failure signal, fabric blocked signal are connecting to PLC by the communication interface. Output signal: HG-9918: 8-channel 4-20mA analog output, current output for controlling main pump frequency conversion, proportional temperature rise/drop valve, and proportional feeding valve. PLC : Switch output connects to PLC by communication interface which achieves water intake, water draining, main pump, temperature rise or drop, overflow, washing, warning, and other functions. Process query : It can record hundreds of processing curves, callings, and 24 hours running processes. Parameters setting : Parameters setting for water intake, water draining, temperature, and fabric speed control. Define : All switching values, analogs, and outputs can be customized. Function characteristic : Precise temperature control, fabric speed control which improves dyeing quality and stability of dyeing machine. It can also calculate power consumption, water, steam, etc. Power supply : AC100~250V,50Hz power consumption≤40W, operating temperature≤ 50ºC. Dimension :350(W)×263(H)×100(D)mm3 Size of hole :324(W)×236(H)mm2 Installation method : Embedded Specifications: Model: HG-8 Product Type: Washing Machine Controller Application: Automatic / Semi-Automatic Machines Material: Electronic PCB Usage: Appliance Control Uses: Washing machine repair Replacement controller board Home appliance servicing Laundry equipment maintenance Technician and workshop use Package Includes: 1 x HG-8 Washing Machine Controller Facebook Instagram Pinterest
