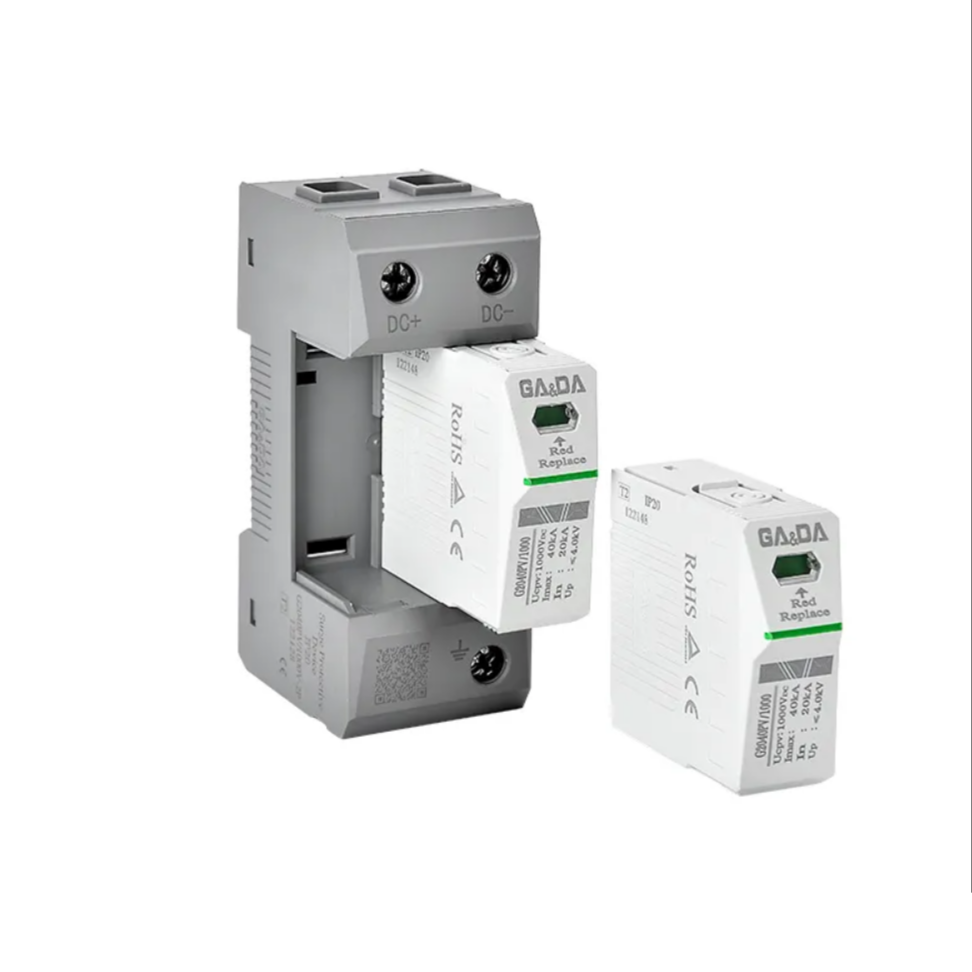

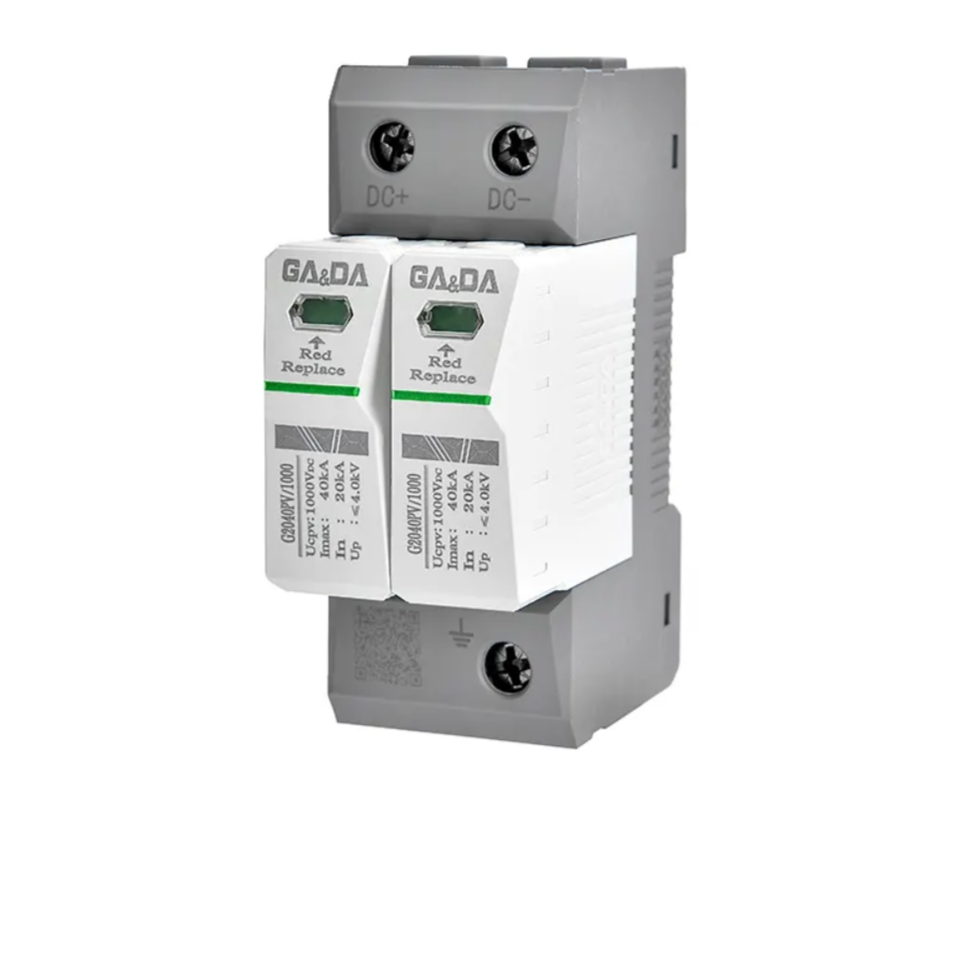

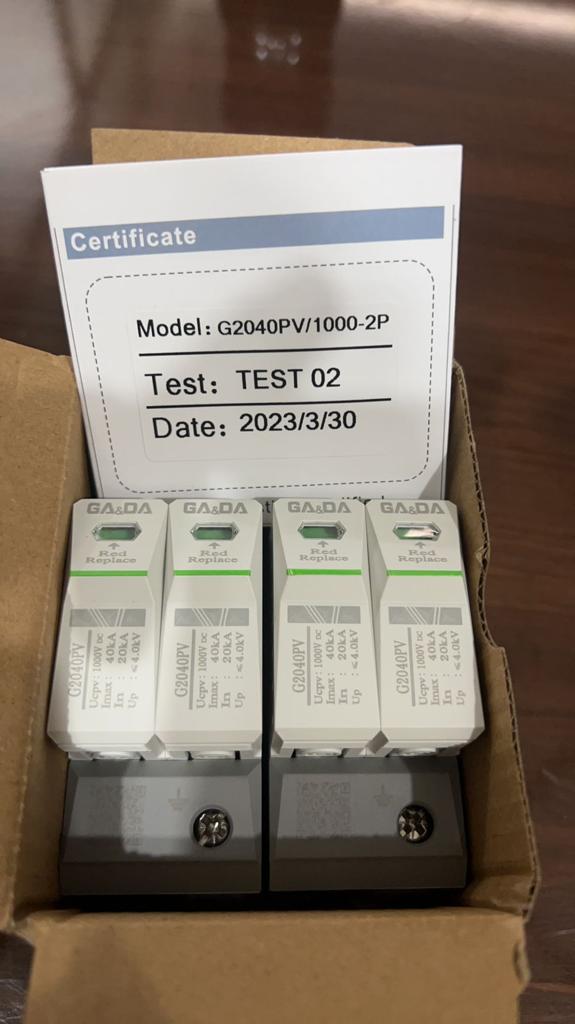

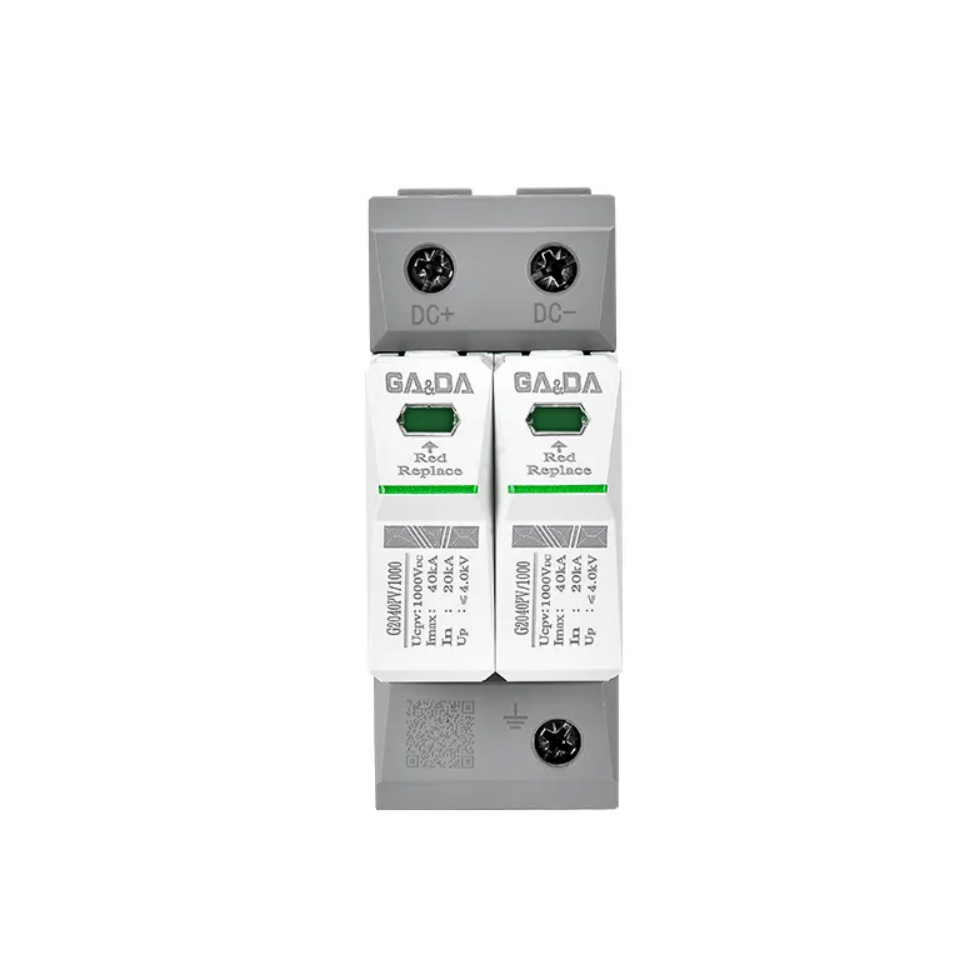

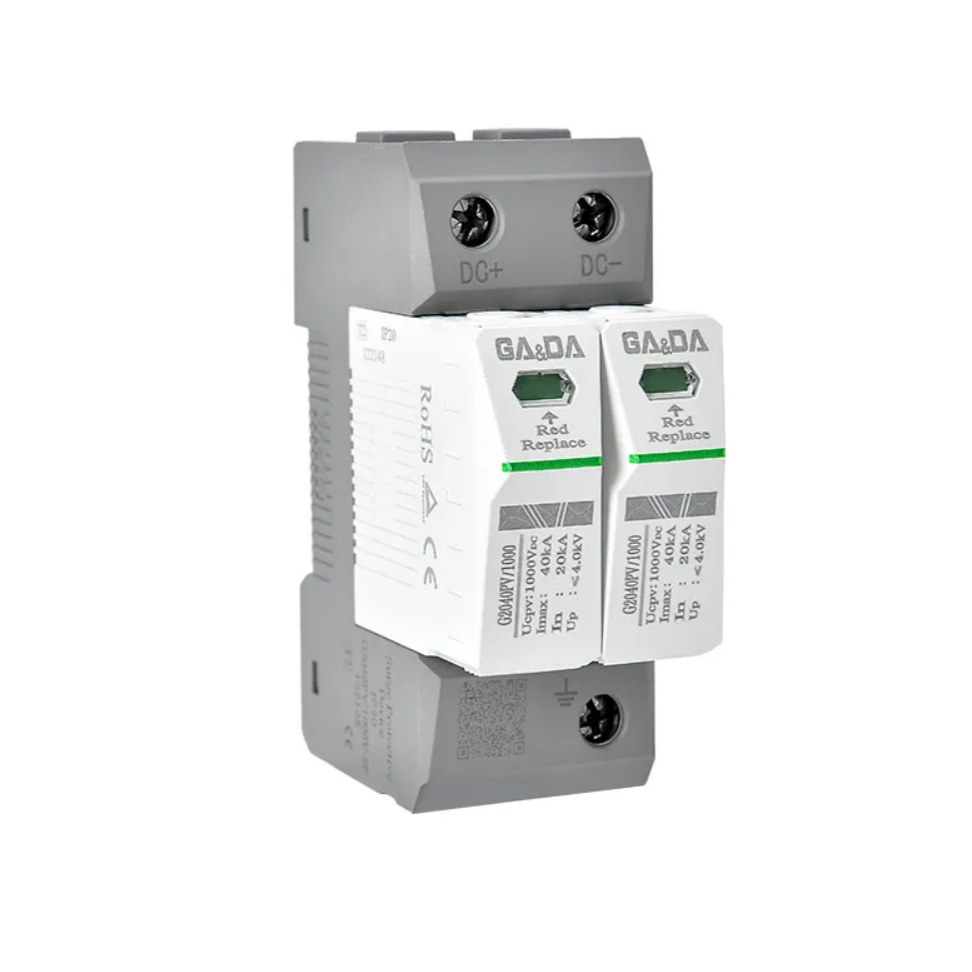

GA & DA G2040PV/1000-2P Surge Protective Device in Pakistan - 2P DC SPD

The GA & DA G2040PV/1000-2P Surge Protective Device (SPD) is a high-quality and reliable device that is designed to protect photovoltaic (PV) systems from the damaging effects of surges. It features a compact and durable design, making it easy to install and maintain. The SPD also has a high surge current rating and a low let-through voltage, making it effective in protecting PV systems from even the most severe surges. Features of GA & DA G2040PV/1000-2P (SPD): Compact and durable design High surge current rating (40kA) Low let-through voltage (<1.5kV) Suitable for use in PV systems with a voltage of up to 1000V DC Meets IEC 61643-11 standards Specification of GA & DA G2040PV/1000-2P Surge Protective Device: Voltage rating: 1000V DC Surge current rating: 40kA (8/20μs) Let-through voltage: <1.5kV Connection type: screw terminals Dimensions: 100 x 50 x 35mm Weight: 200g Dimensions: Length: 100mm Width: 50mm Height: 35mm Uses: Photovoltaic (PV) systems Solar panels Solar inverters Solar charge controllers Any other application where protection from surges is required Package includes: GA & DA G2040PV/1000-2P Surge Protective Device (SPD)
