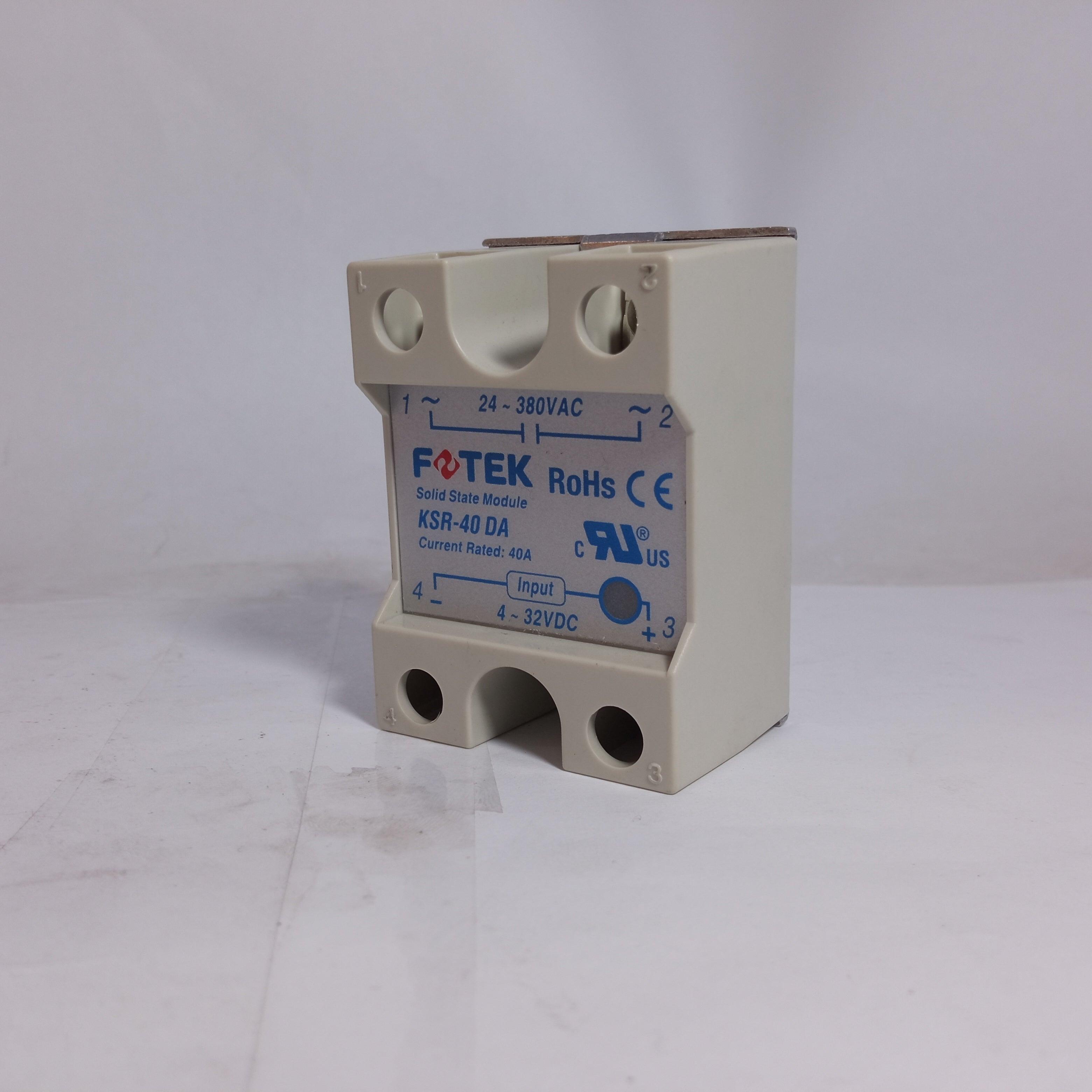

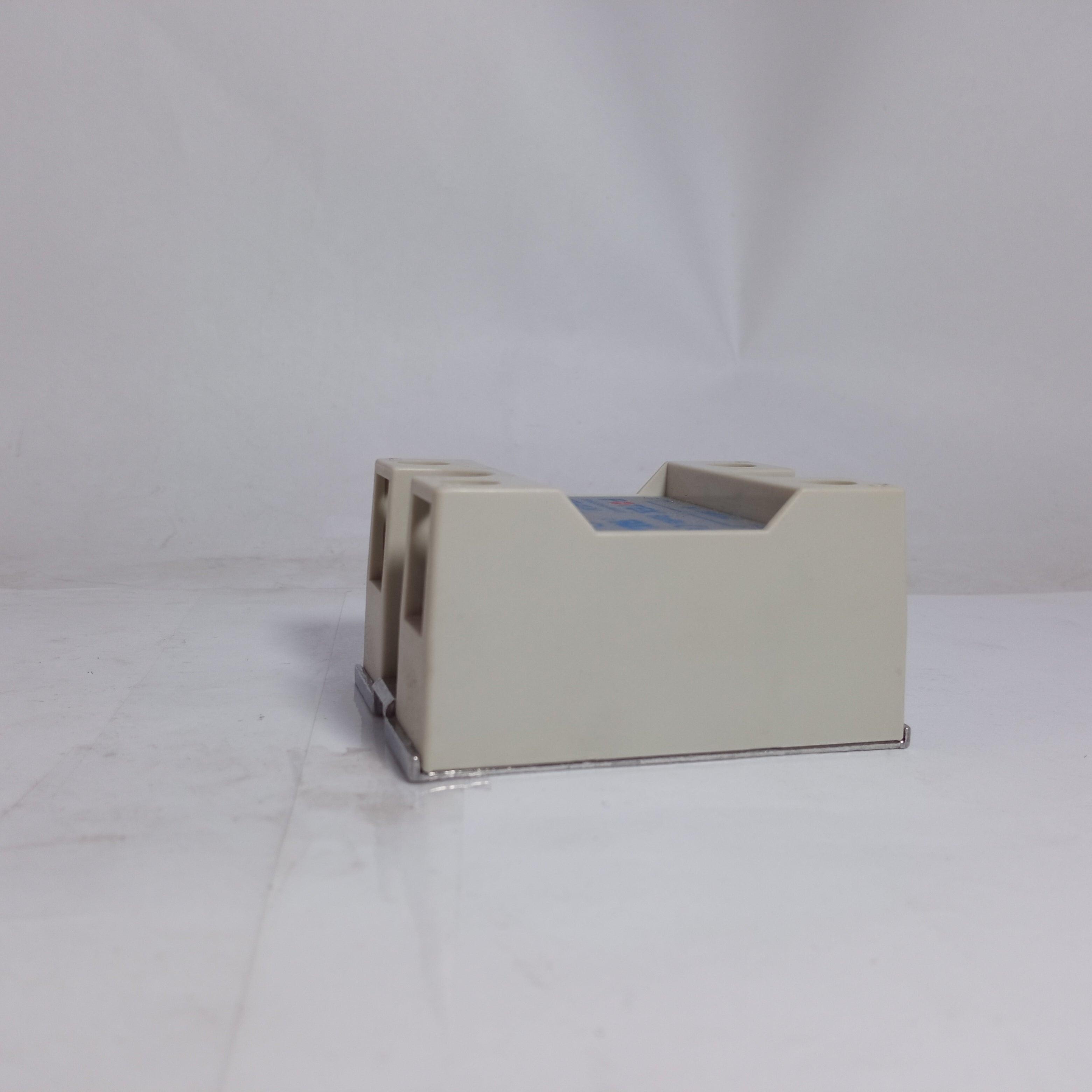

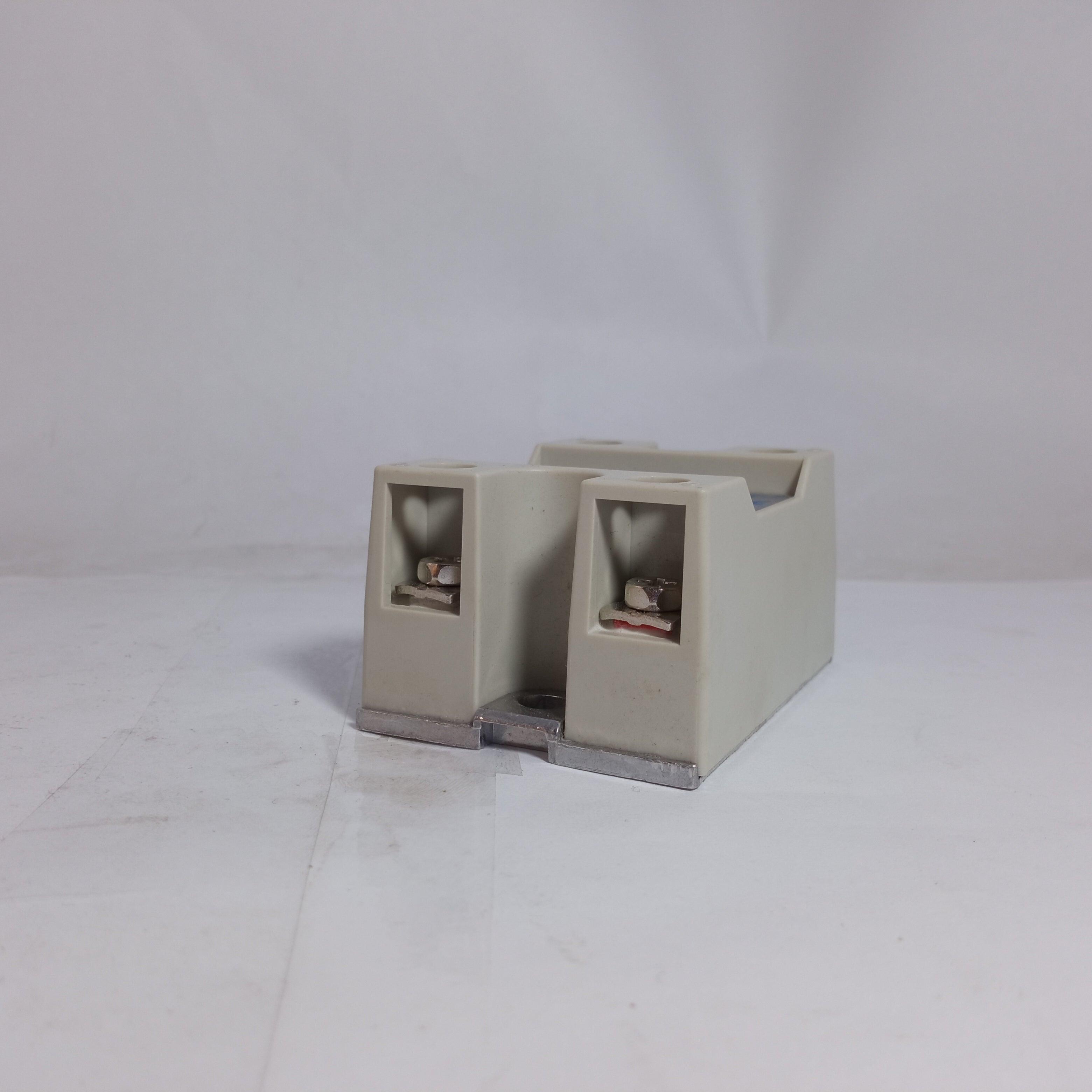

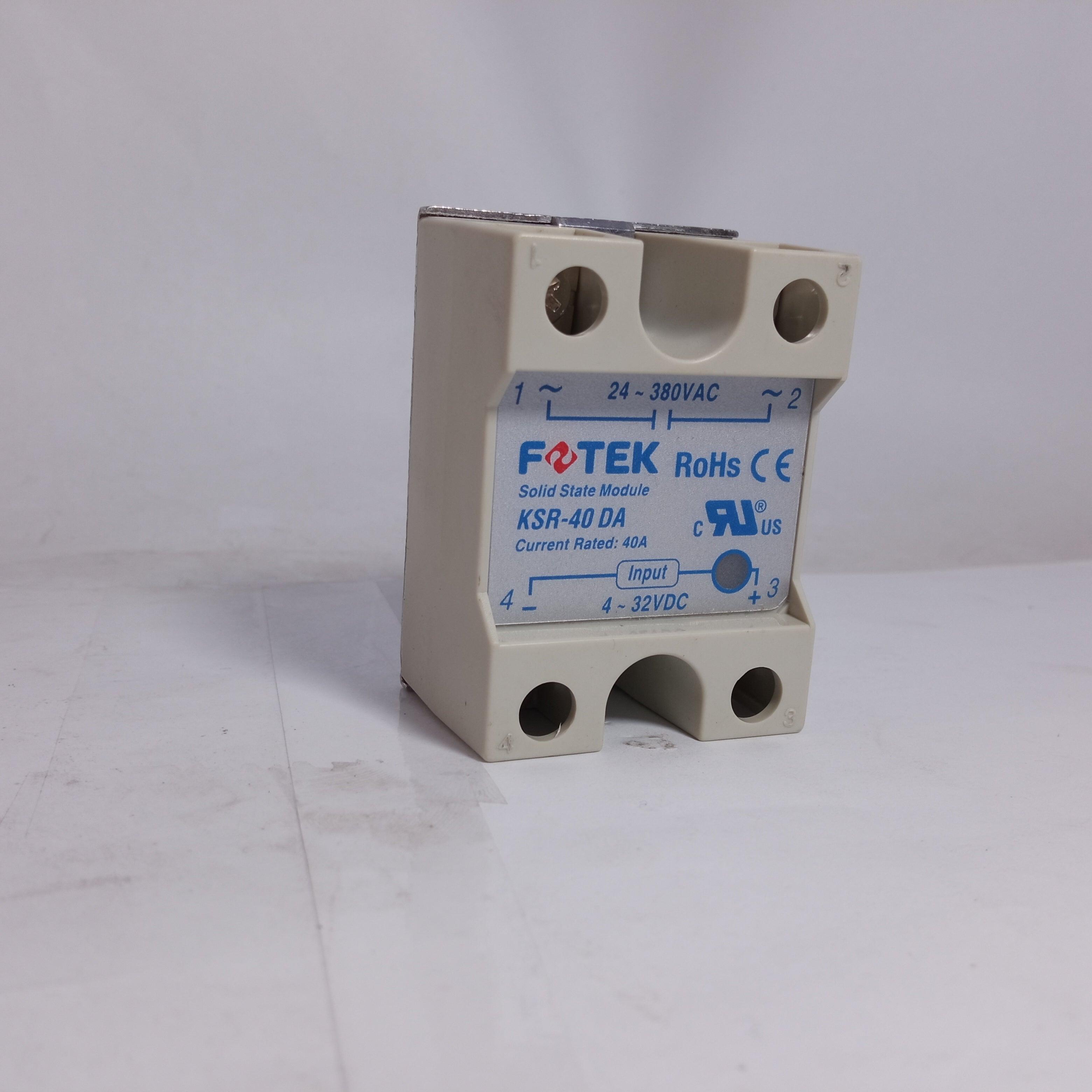

KSR FOTEK Solid State Relay Original (Taiwan) - KSR-60DA

FOTEK-Solid State Relay KSR in Pakistan Description The Solid State Relay allows you to control high current AC loads from lower voltage DC control circuitry. Solid-state relays have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays, and since there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out. Specification: Color : KSR-25DA KSR-40DA KSR-50DA KSR-75DA Model : KSR-40DA Contact form : Normally open Place of origin : Other/other Power source : DC Type Standard type Model KSR-25DA KSR-40DA KSR-50DA KSR-75DA Rated current 25A max. 40A max. 50A max. 75A max. I 2 t for fuse 259A2s 664A2s 518A2s 1328A2s Surge current 275A 410A 550A 820A Peak voltage 1200 VAC min. Output voltage 24~380VAC
