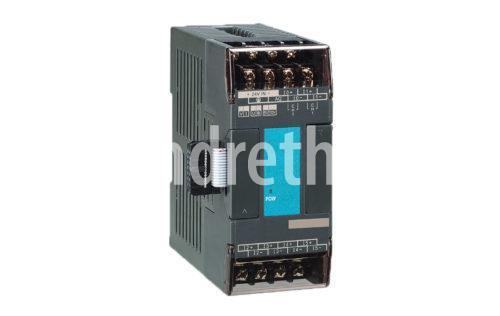

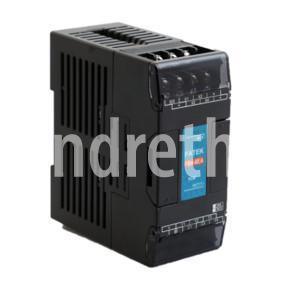

FBs-1LC Fatek Plc module

FBs-1LC Fatek Plc module in pakistan BR1357 Introduction FBs-1LC is one of the analog input modules of FATEK FBs series PLC. It supports one channels of load cell input for weight measurement. The raw conversion result is represented by a signed 16 bit integer value. In order to filter out the field noise imposed on the signal, it also provides the average of sample input function. Specifications: Total Channels - 1 A/D Converter Utilized – 24-bit ?-? A/D Resolution- 16 bits (include signed bit) I/O Points Occupied - 1 RI(Input Register) and 8 DO Conversion Rate- 1/3/5/8 Hz Non-Linearity- 0.01% F.S. (@25?) Zero Drift- 0.2 µV/? Gain Drift- 10 ppm/? Excitation Voltage – 5V with 100? driving capability Sensitivity - 2mV/V, 5mV/V, 10mV/V, 20mV/V Software Filter- Moving average Average Samples- 1~8 configurable Isolation- Transformer(Power) and photo-coupler(Signal) Indicator(s) - 5V PWR LED Supply Power- 24V-15%/+20%, 2VA Internal Power Consumption- 5V, 100mA Operating Temperature- 0 ~ 60 ? Storage Temperature- 20 ~ 80 ? Dimensions- 40(W)x90(H)x80(D) mm
