FATEK PLC to HMI Display Cable in Pakistan

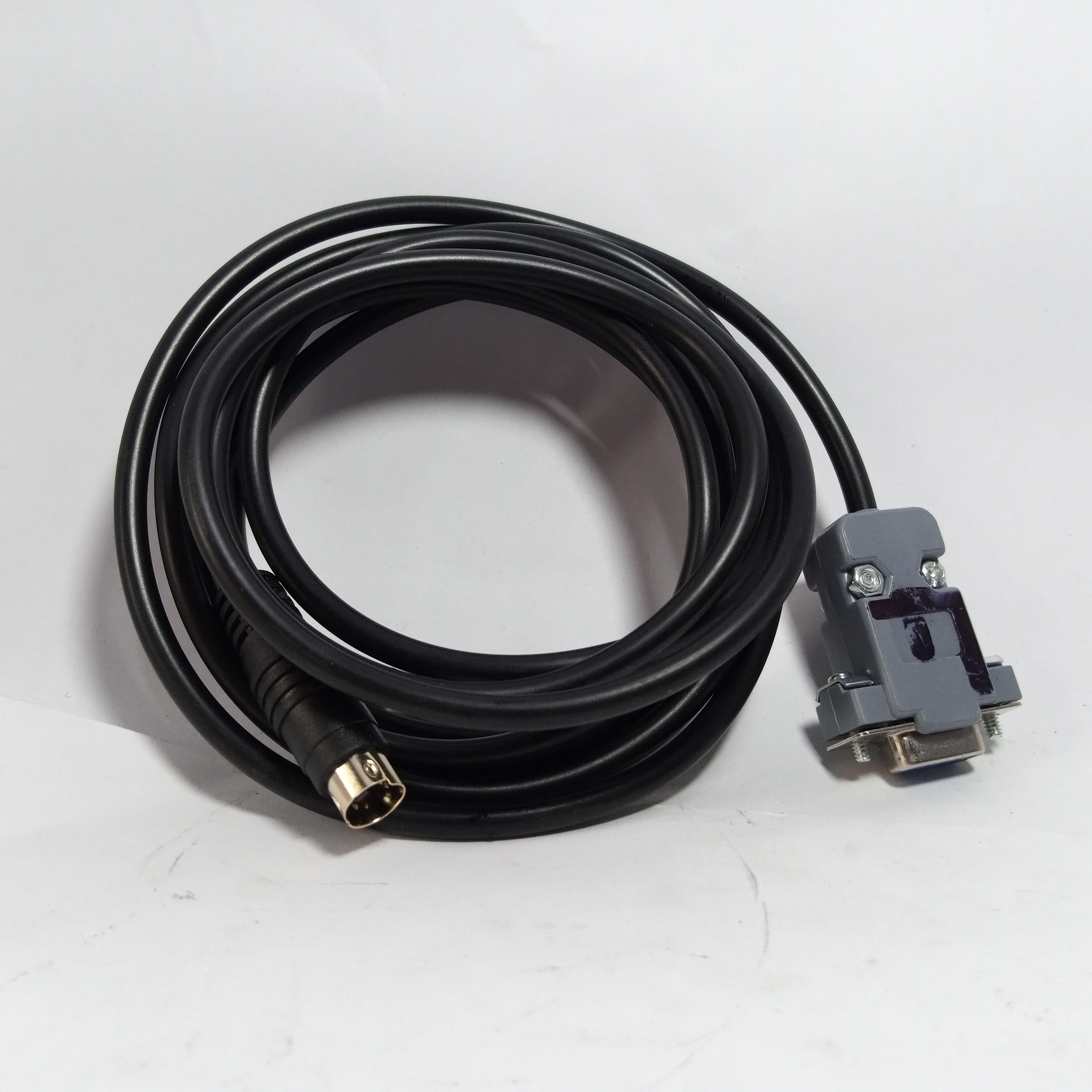

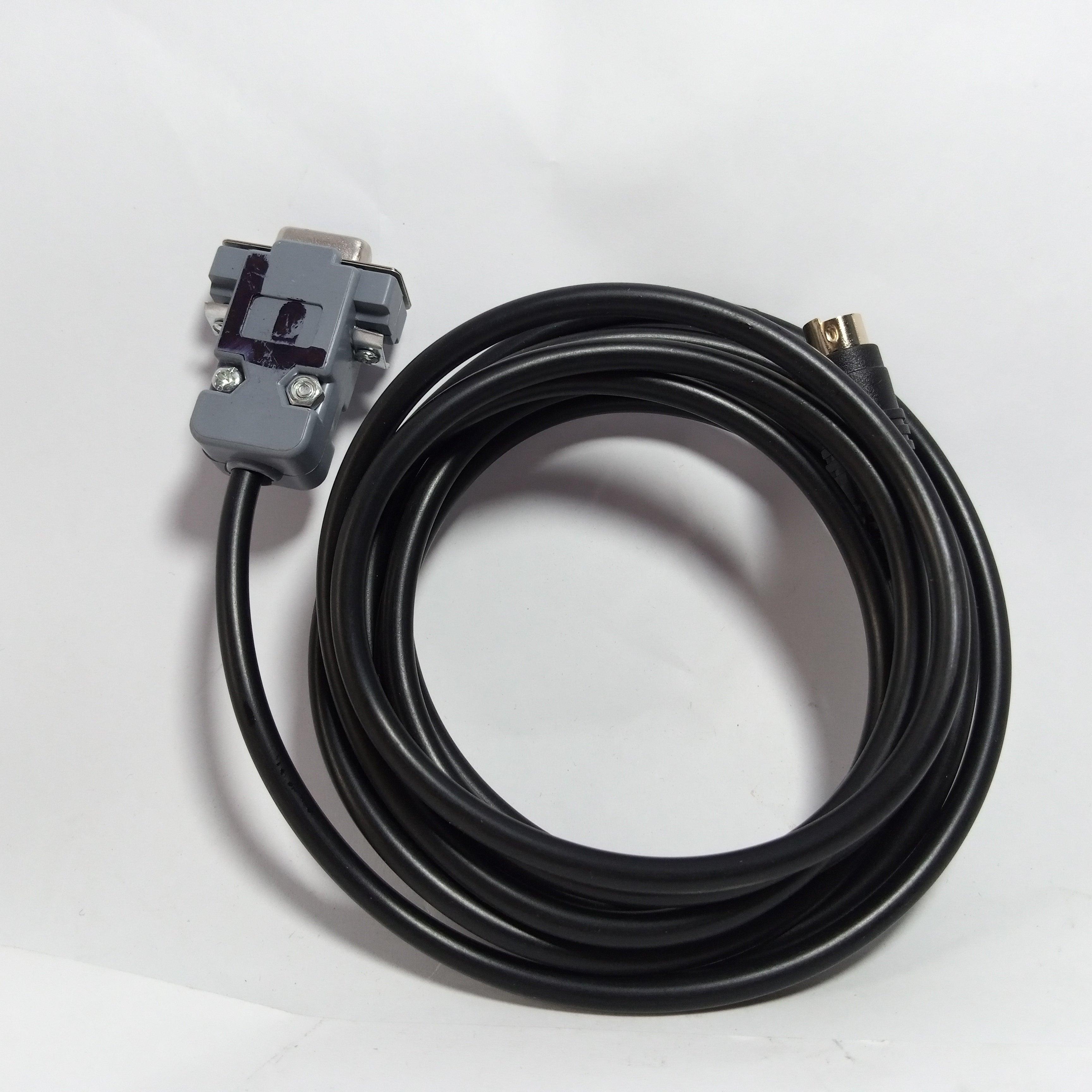

FATEK PLC to HMI Display  Cable in Pakistan BR2315 FATEK PLC Programming Cable in Pakistan Introduction: USB-FBS-232P0-9F programming cable is provided through the USB interface to serial connection and RS232 signal conversion optocoupler programming cable, under the control of the driver running on the computer, will simulate the traditional serial computer’s USB port, so use various existing programming software, communication software and monitoring software and other applications. PWR- power; RX- accepted) PLC port powered by the transceiver status LED indicates data.USB-FBS-232P0-9F + isolated programming cable is suitable for Taiwan-Hong Yong FSB series PLC, the connection PLC COM1 port.  Round 4 pin + USB Features and Specifications: Support USB-FBS-232P0-9F + isolated operating system: WIN2000 / WIN7 / WIN8. Support USB-FBS-232P0-9F + Isolated programming software version: WinProladder3.24 or more. Fully compatible with 1.1 or USB 2.0. USB bus-powered, the current consumption of about 70mA. Baud Rate: 300bps ~ 1Mbps standard automatic baud rate adaptation. Support UART data format: data bits: 7, 8, stop bits: 1, 2 Parity: odd / even / no parity Cable length: 2.5 m. Packages Include: 1 x FATEK PLC Programming Cable
