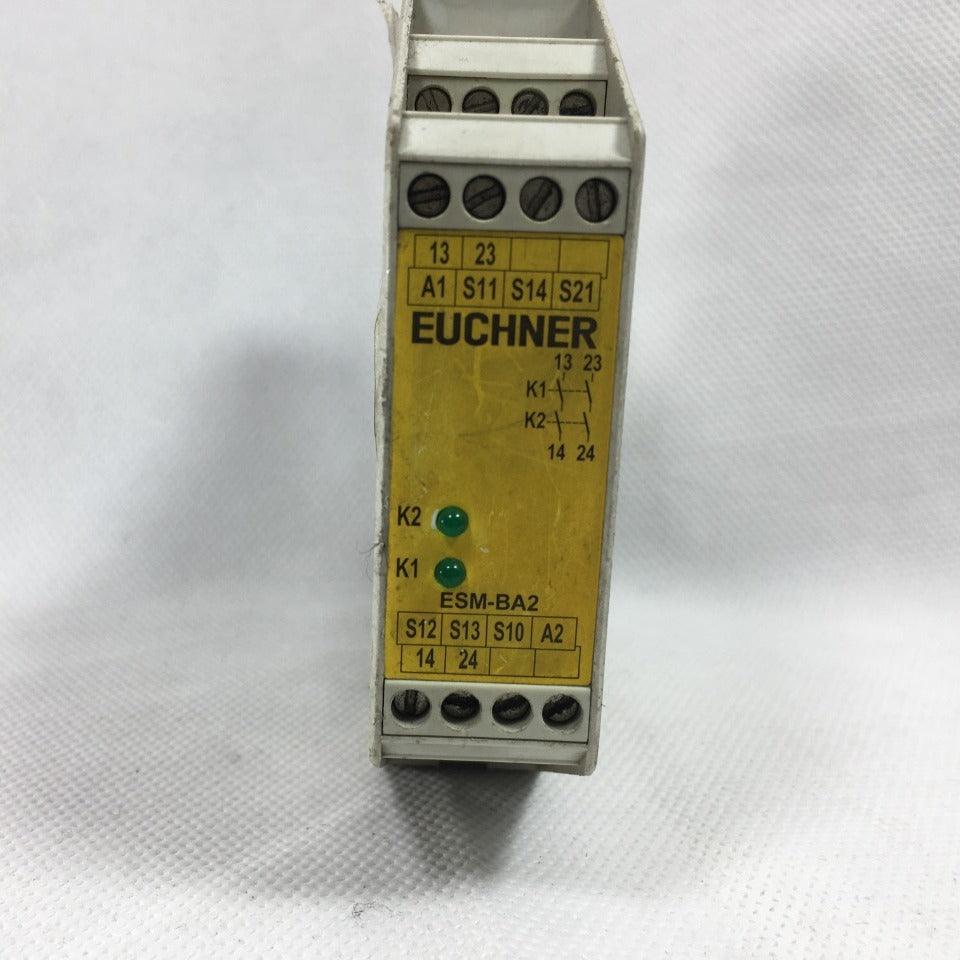

Euchner Safety Relay ESM-BA2 in Pakistan

Safety Relays. Also called “All–or–Nothing Relays with Positively Driven Contacts”. Relays of this type have contacts that are mechanically connected together, such that if a normally open (NO) or make contact remains closed, a normally closed (NC) or break contact can not re–close . Specification: MPN: ESM-BA2 ESM-BA202 085611 Brand : EUCHNER UPC: Does not apply Housing material: Housing Polyamide PA6.6 Weight: Net 0,23 kg Ambient temperature : At UB = 24V AC -15 ... 40 °C, At UB = 24V DC -15 ... 60 °C Degree of protection: IP20 Mechanical life operating cycles: 10 x 106 Contact material: AgSnO2 Mounting method: Mounting rail 35mm according to DIN EN 60715 TH35 Connection: Connection terminals Length of control cable With conductor cross-section 0.75mm2 1000 m Package includes: 1 x Euchner Safety Relay ESM-BA2 Facebook Instagram Pinterest
