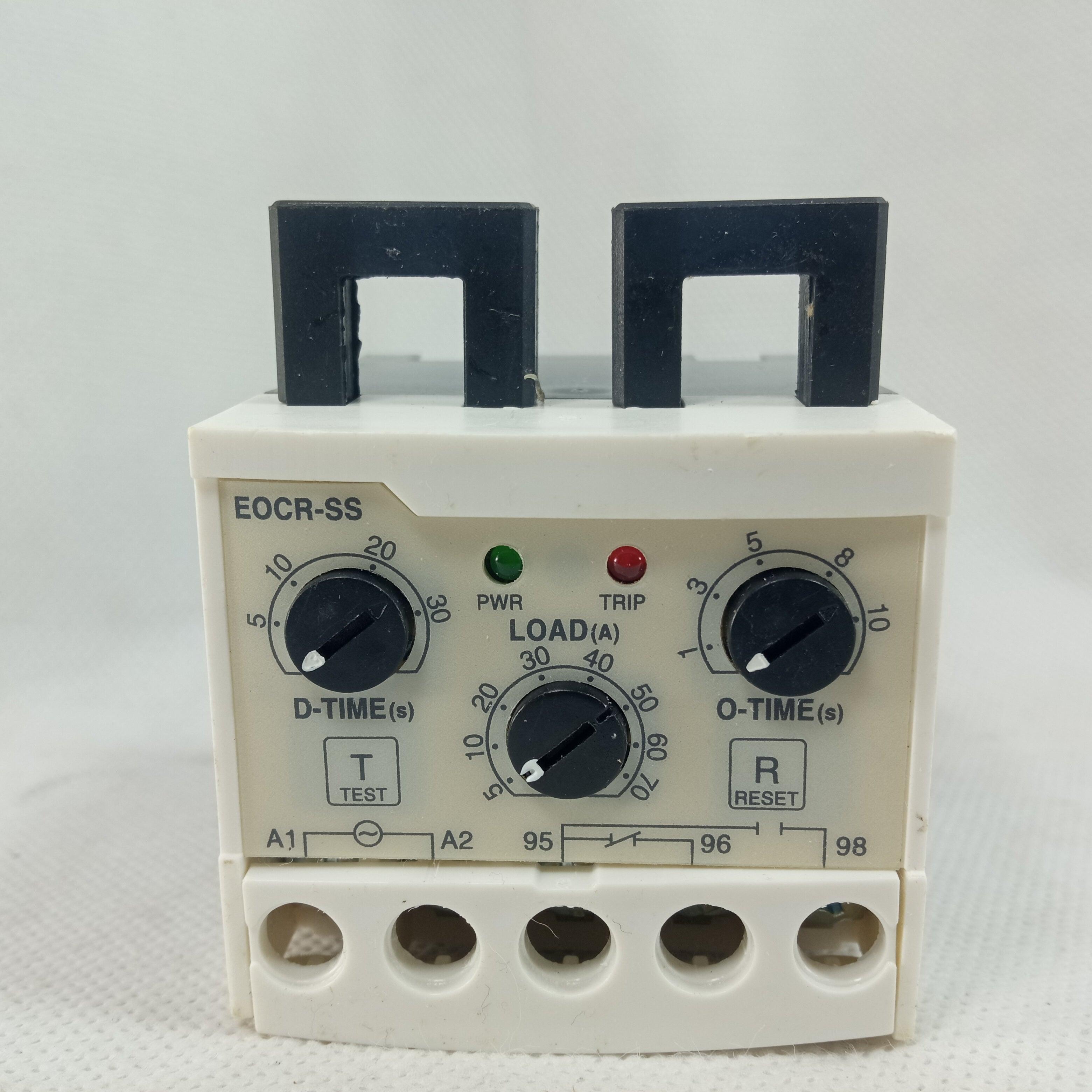

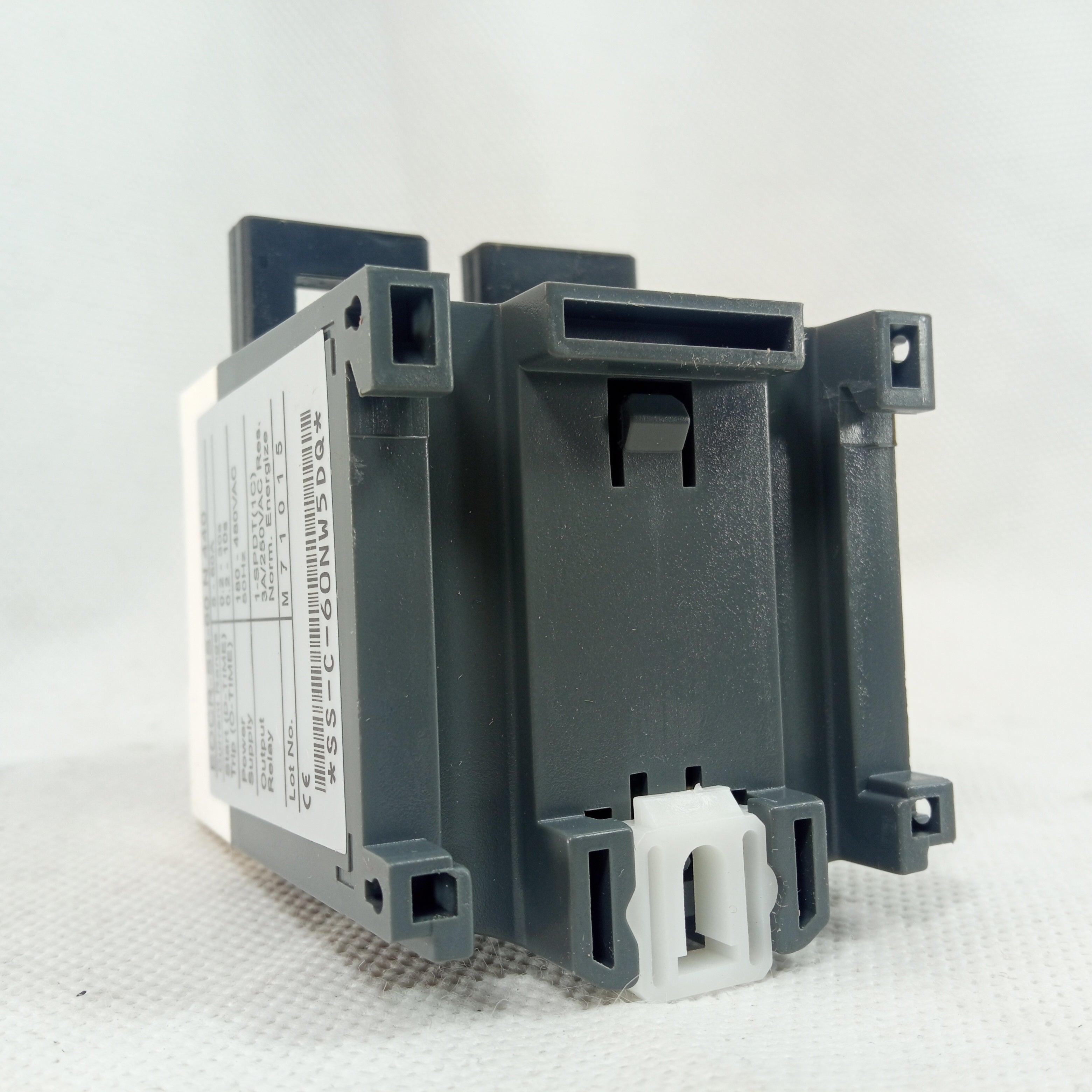

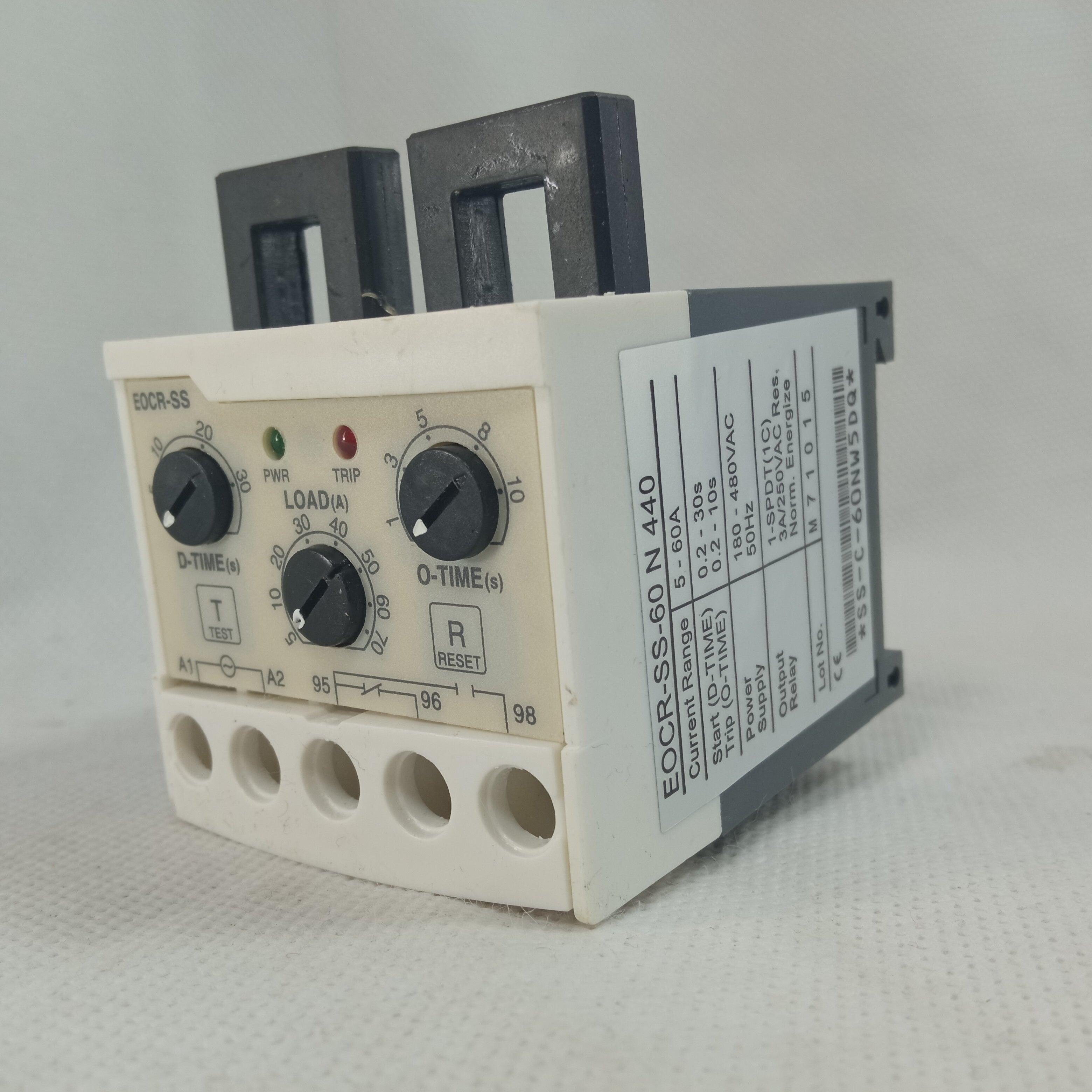

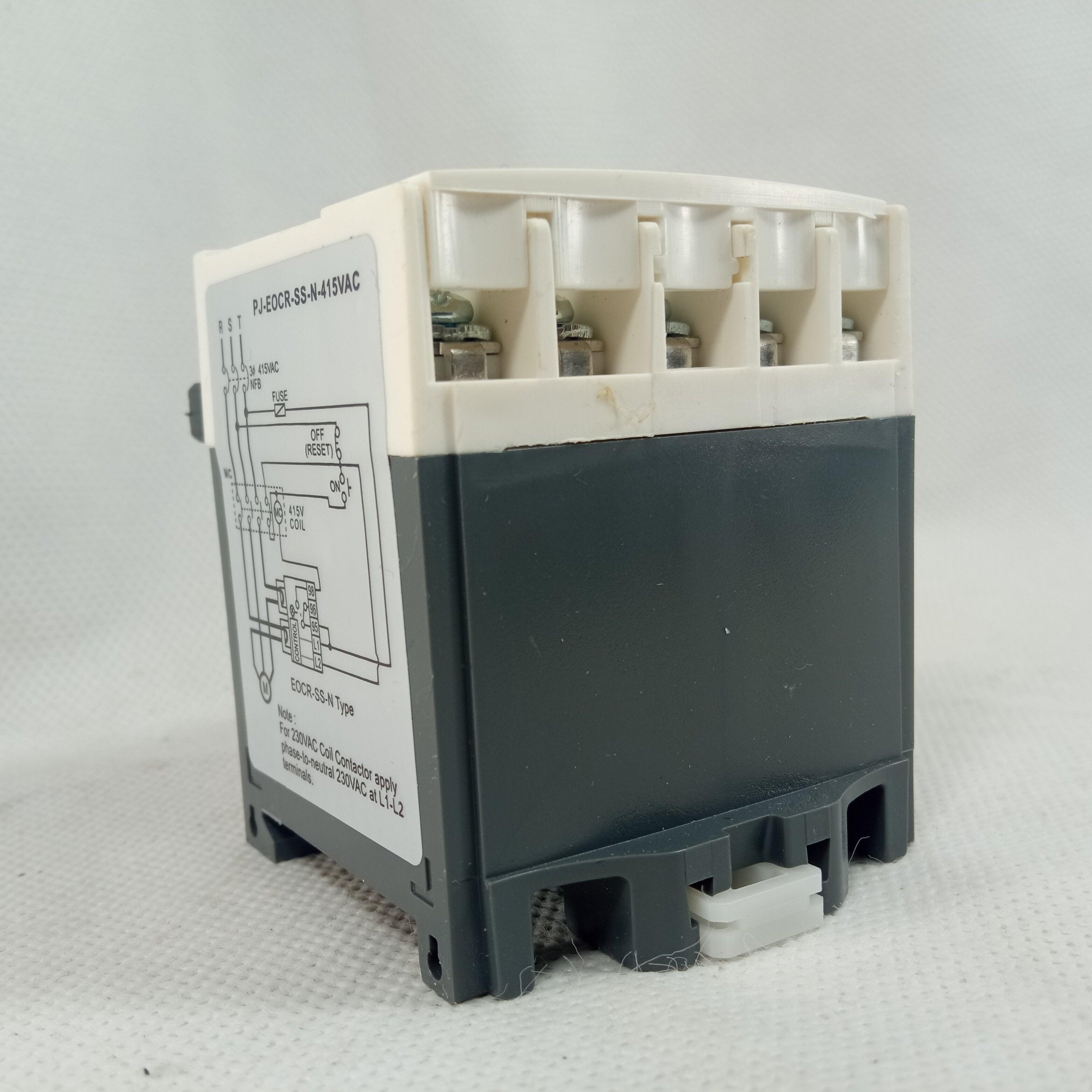

Electronic Over Load Relay EOCR-SS 5 - 70Amp in Pakistan

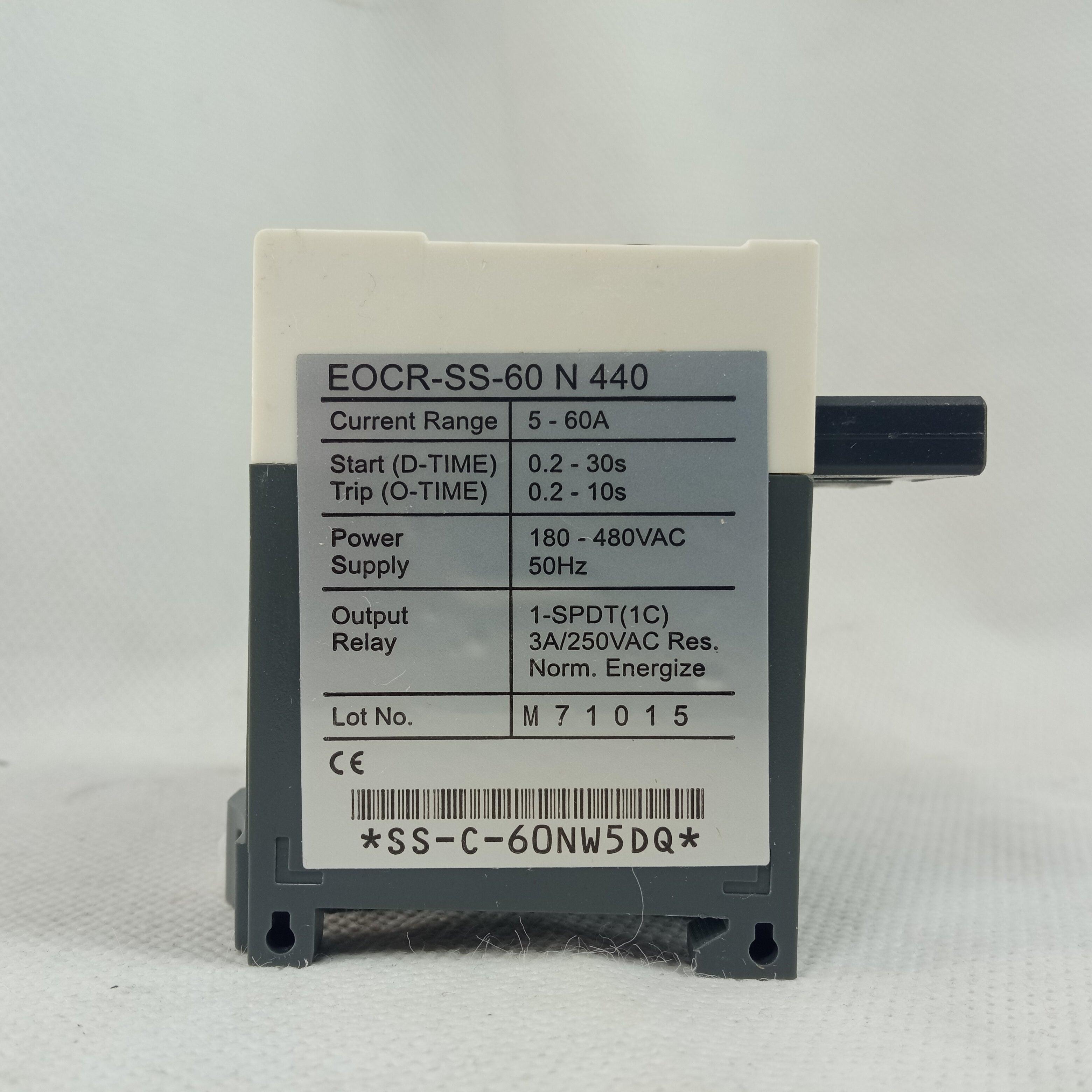

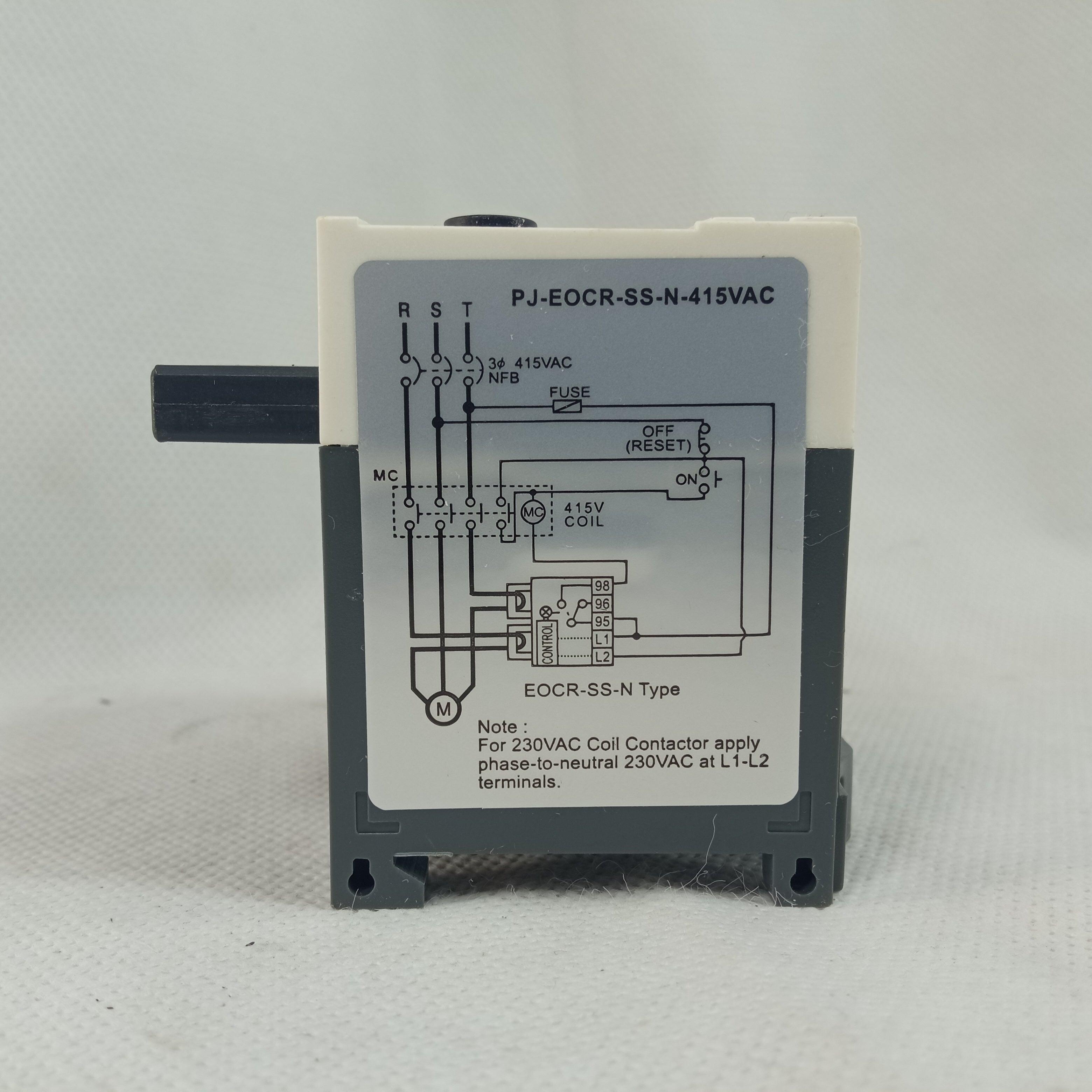

Protect your motors with the EOCR‑SS Electronic Overload Relay (5–70A). With a wide adjustable range (5–70A), it fits many motor sizes, making it perfect for maintenance teams and OEMs. The EOCR‑SS provides stable electronic overload protection with adjustable trip time, start delay, and manual/auto reset options.Use the relay output to open your contactor coil for safe, reliable shutdowns. Features: Adjustable current range: 5–70A (built‑in CT) Protects against overload, phase loss, unbalance Adjustable trip time, start delay; auto/manual reset Relay output to trip contactor; status LEDs DIN‑rail/panel mount, easy wiring and setup Specification: Measurement: 3‑phase pass‑through (built‑in CT to 70A) Supply: 110/220 VAC, 50/60 Hz (model dependent) Output Contact: 1 C/O, up to 5A @ 250 VAC (typical) Settings: current 5–70A; trip delay ~0.5–30 s; start delay adjustable Indication/Reset: RUN/TRIP LEDs; manual/auto reset (selectable) Uses: Pumps, blowers, and fans Compressors and chillers (HVAC) Conveyors, mixers, and packaging lines Machine tools and general motors OEM panels and maintenance retrofits Package Includes: 1 x  Electronic Over Load Relay (EOCR-SS) 5 - 70Amp
