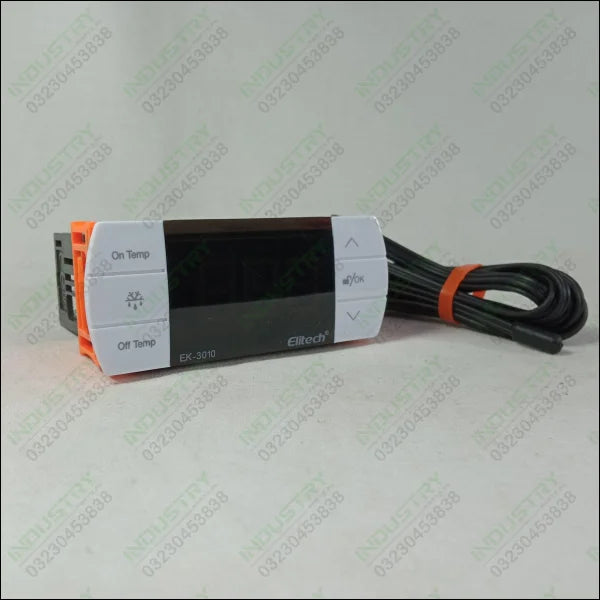

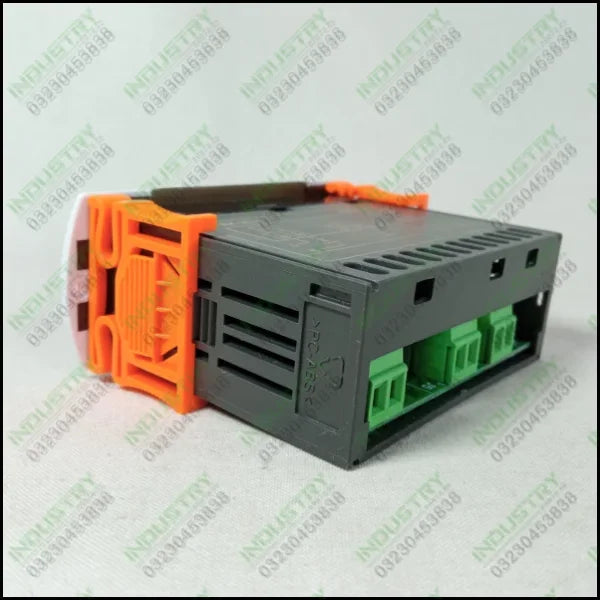

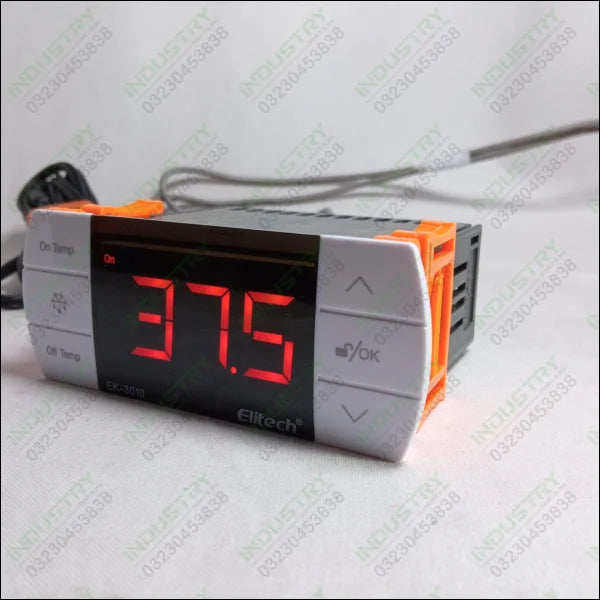

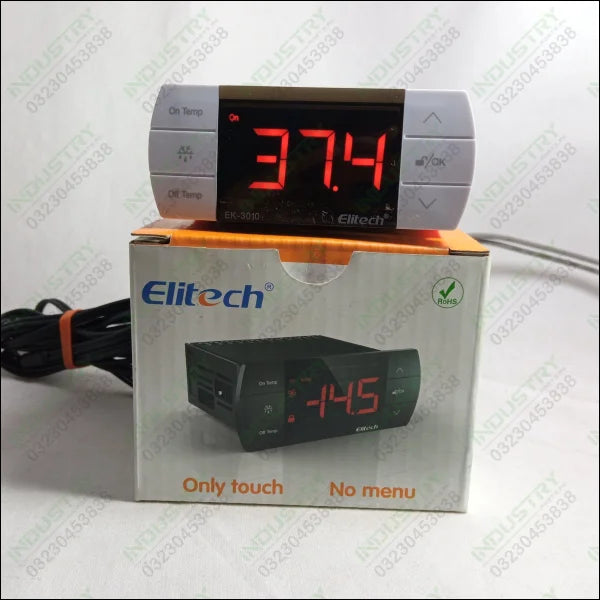

Elitech EK-3010 Temperature Controller Pakistan
The EK-3010 is an industry-standard digital thermostat designed for controlling refrigeration, heating, and defrost cycles. Perfect for cold rooms, display cases, and industrial process control, this 220V Digital Thermostat provides a clear display and intuitive settings for accurate temperature management. Its compact size and reliable performance make the Elitech EK-3010 the preferred choice for HVAC technicians and system builders seeking genuine quality at the best price in Pakistan.
Features:
Elitech EK-3010 Temperature Controller Pakistan
Dual Sensor Inputs:
Heating/Cooling Control:
Defrost Management:
High Reliability:
LED Display:
Specifications:
Measuring range :-40℃~99℃
Controlling range :-40℃~85℃
Accuracy :-30℃~50℃,±1℃±0.5dig; others, ±2℃±0.5dig
Resolution :0.1℃ / 1℃
Mounting size: 71mm*29mm
Power supply : 220±10%(VAC), 50/60Hz
Power consumption :5W
Output capacity:
Refrigeration :10A/220VAC or 16A/220VAC, directly drive a single-phase compressor 1HP
One way buzzer alarm output
Work ambient temperature : -5℃~60℃; work ambient humidity:10%~90% non condensing
Storage temperature :-25℃~75℃
Sensor type : NTC(10KΩ/25℃,B value 3435K)
Sensor length: 2M
----------------------------
