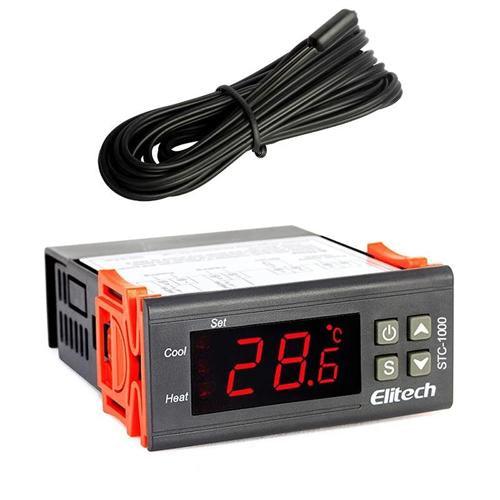

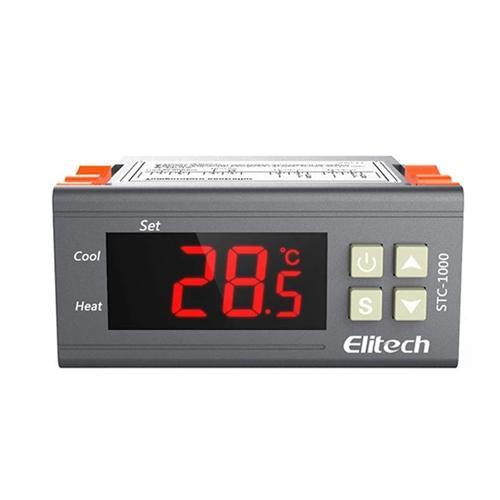

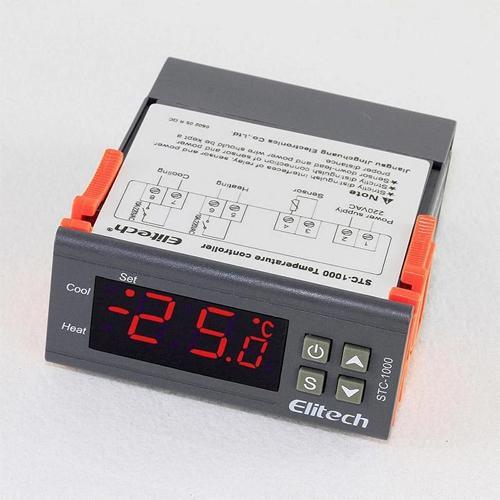

Thermostat Temperature Controller Elitech STC-1000 main functions as below: Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when the temperature exceeds temperature limit or when sensor error occurs.
Technical Parameters :
Temperature measuring range: -50℃~99℃;
Resolution: 0.1℃;
Accuracy: ±1℃ (-50℃~70℃);
Sensor error delay: 1 minute
Power supply: 110 VAC±10%, 50/60Hz;
Power consumption: less than 3W;
Sensor: NTC sensor (1PC);
Relay contact capacity: Cool 10A/110VAC;Heat 10A/110VAC;
Ambient temperature: 0~60℃;
Storage temperature: -30~75℃;
Relative humidity: 20%~85% (No condensate).
Specification:
Front panel size: 75(L)×34.5(W)mm;
Mounting size: 71(L)×29(W)mm;
Product size: 75(L)×34.5(W)×85(D)mm;
sensor length 2 m included;
Measure range: -50℃+99℃
Mounting size: 71*29 mm
Auto switch between refrigerating and heating
Return difference value
Package Includes:
1 x STC-1000 Thermostat Temperature Controller Aquarium (Elitech)
