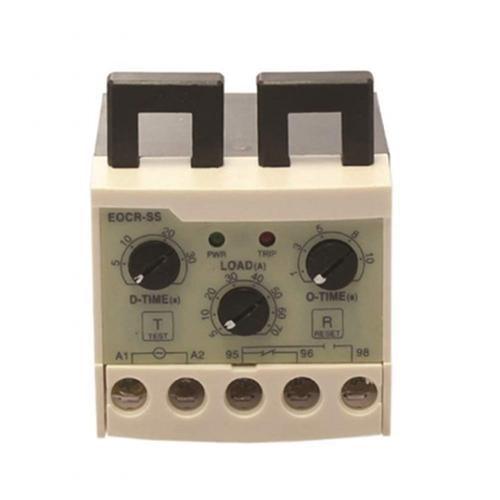

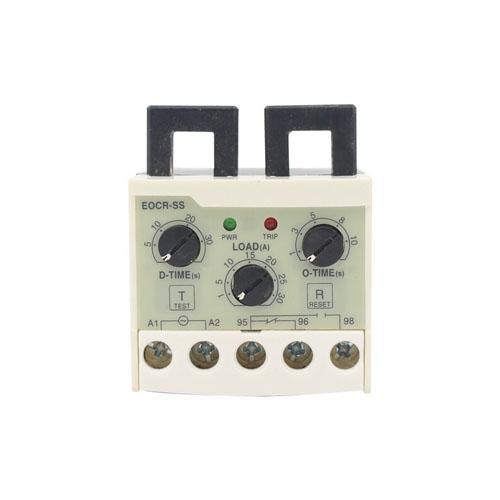

Electronic Over Load Relay 0.5A-6.5A EOCR-SS in Pakistan

Protect small to medium motors with the EOCR‑SS Electronic Over Load Relay (0.5–6.5A). The wide adjustable range (0.5–6.5A) covers many fractional‑HP and compact three‑phase motors, making it perfect for OEM panels and maintenance retrofits. The EOCR‑SS offers accurate electronic protection with adjustable trip time, start delay, and selectable auto/manual reset. It typically detects phase loss and unbalance to guard against wiring faults and supply issues. Clear LEDs show RUN/TRIP status, and front dials make setup fast and repeatable. Use the relay output (C/O) to interrupt the contactor coil for safe, reliable shutdowns. Features: Adjustable current range: 0.5–6.5A (built‑in CT) Protects against overload, phase loss, unbalance Adjustable trip time & start delay; auto/manual reset Relay C/O output to trip contactor; status LEDs DIN‑rail/panel mount; quick pass‑through wiring Specifications: Measurement: 3‑phase pass‑through up to 6.5A Supply: 110/220 VAC, 50/60 Hz (model dependent) Output Contact: 1 C/O, up to 5A @ 250 VAC (typical) Settings: current 0.5–6.5A; trip delay ~0.5–30 s; start delay adjustable Indication/Reset: RUN/TRIP LEDs; manual/auto reset selectable Uses: Small pumps, blowers, and fans Compact compressors and chillers (HVAC) Conveyors, mixers, and packaging machines Machine tools and process equipment OEM control panels and maintenance retrofits General Characteristics: Overload and Phase Loss Protection 2 Integral Current Transformers Electronic Shear-pin function Independently Adjustable Starting Trip Delay (D-Time) & Overload Trip Delay Time (O-Time) Packages Include: 1 x 0.5A-6.5A Electronic Overload relay (EOCR-SS)
