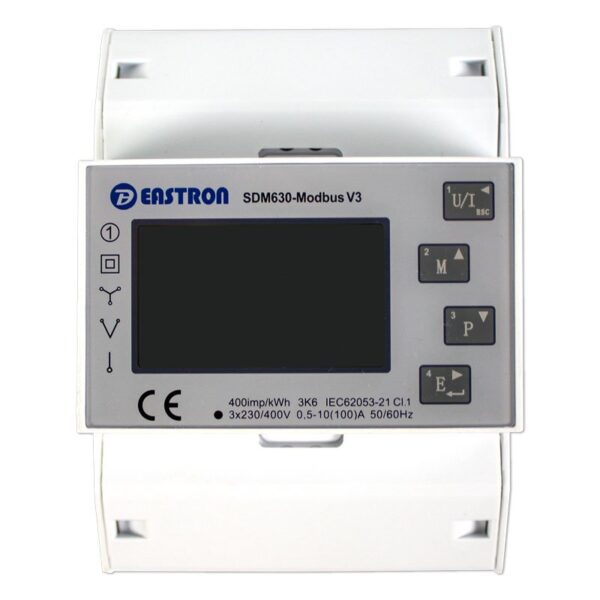

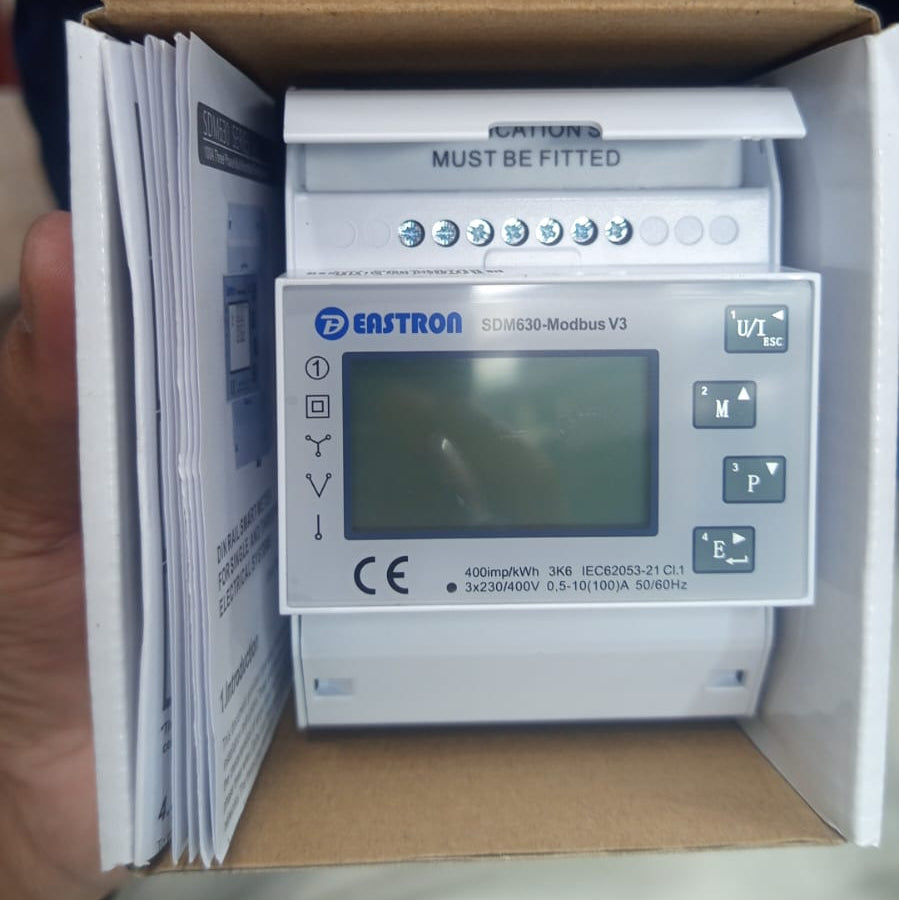

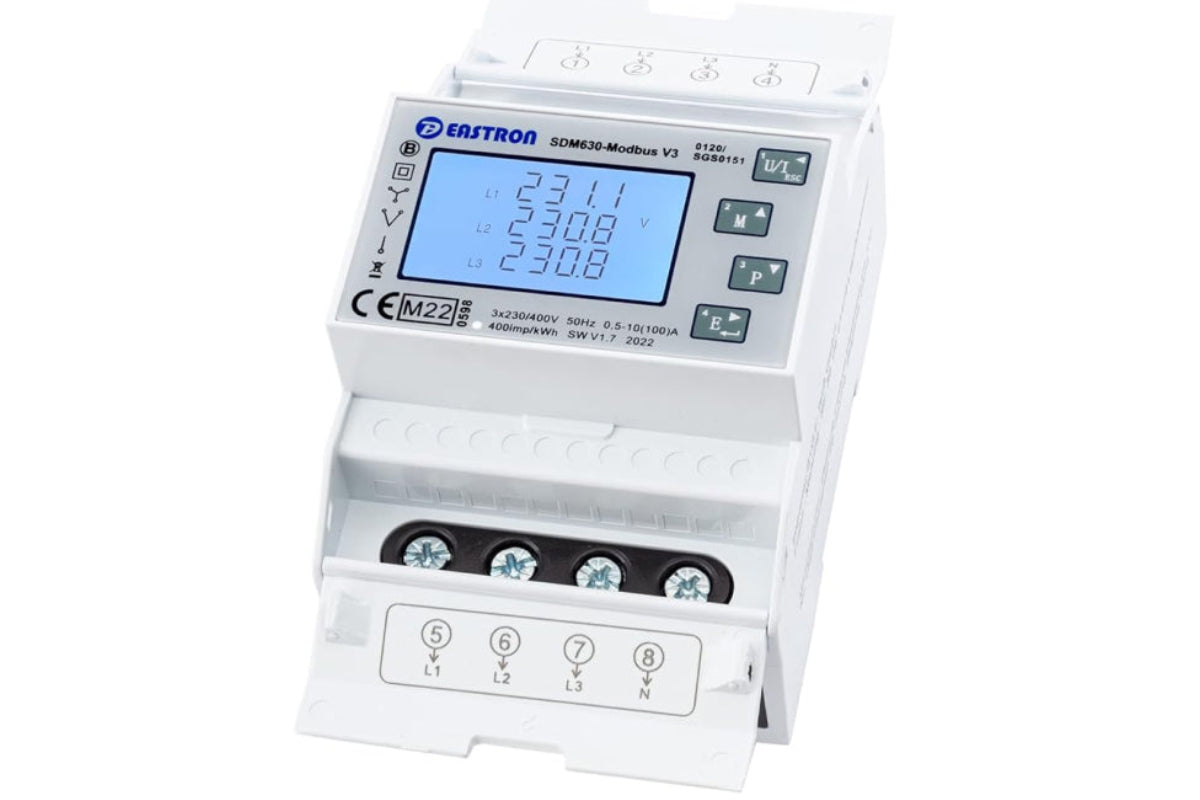

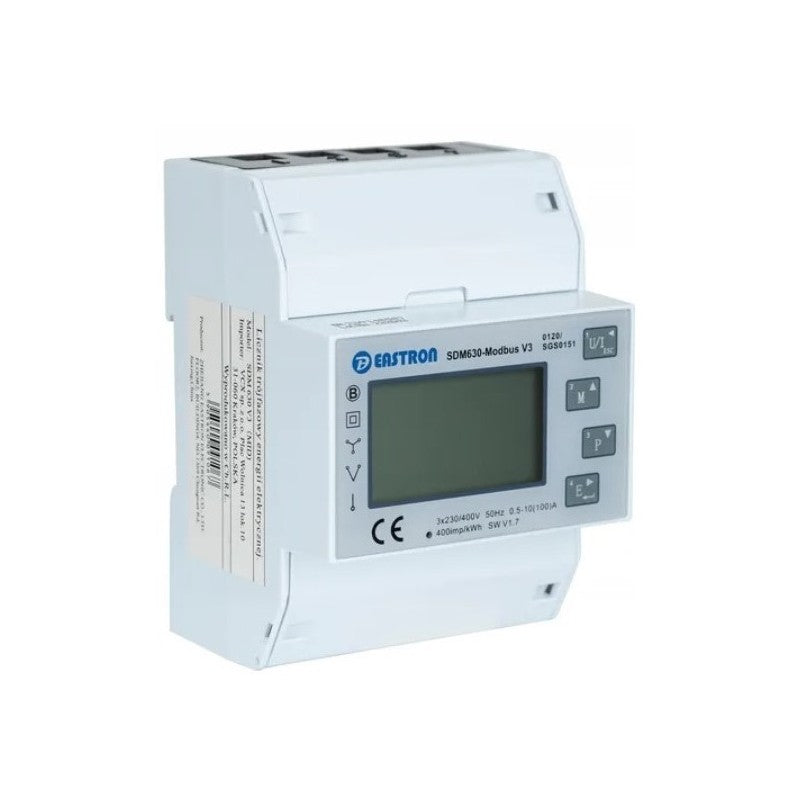

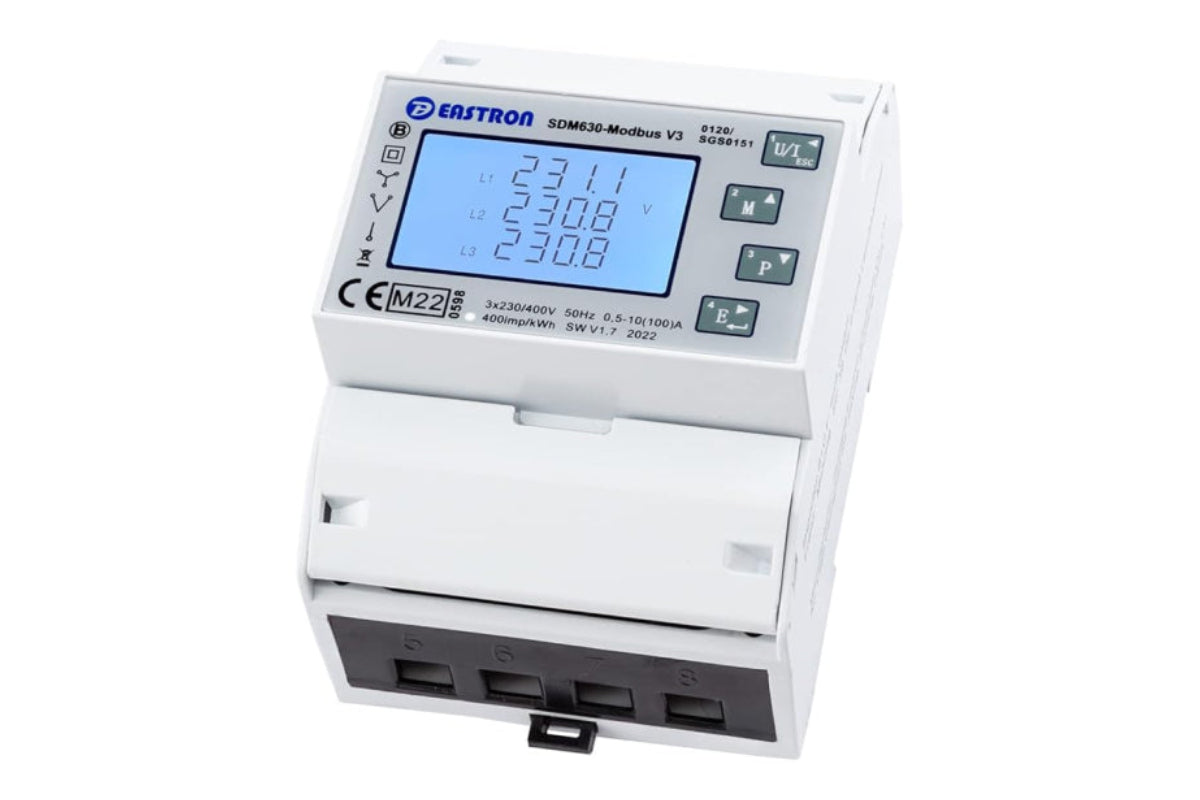

EASTRON SDM 630-Modbus V3 Digital Energy Meter in Pakistan

The EASTRON SDM 630-Modbus V3 Digital Energy Meter is a reliable and advanced device designed for accurate monitoring of electrical parameters in three-phase systems. It measures important values such as kWh, kW, voltage, current, power factor, and frequency. Moreover, it supports bidirectional energy measurement for both import and export, making it ideal for solar and industrial applications. With RS485 Modbus communication, it allows easy data integration into monitoring systems. In addition, its DIN rail mounting and strong build make installation simple and long-lasting. Features: Measures kWh, kVarh, kW, kVar, kVA, PF, Hz, voltage, and current Bidirectional measurement for import and export energy RS485 Modbus-RTU communication support DIN rail mounting for easy installation Direct connection up to 100A without external CT High accuracy better than Class 1 Clear digital display for easy monitoring Suitable for industrial and commercial use Durable design for long-term performance Energy monitoring for solar and grid systems Specifications: Model: SDM 630-Modbus V3 Digital Energy Meter AC Voltage: 3×230/400 V Base Current (Ib): 10 A Maximum Current (Imax): 100 A Measurement Parameters: kWh, kVarh, kW, kVar, kVA, PF, Hz, V, A, demand Accuracy: Better than Class 1 Communication: RS-485 interface Protocol: Modbus-RTU Mounting Type: DIN rail mounting Power Consumption: ≤ 2 W / 10 VA Operating Temperature: -25°C to +55°C Outputs: 2 pulse outputs (1 configurable) Additional Output: 1 RS-485 communication port Certification: MID certified Application: Three-phase energy monitoring systems Uses: Monitoring energy consumption in industrial systems Measuring power usage in commercial buildings Solar energy import and export tracking Integration with automation and control systems Accurate billing and energy management systems Package includes: 1x  EASTRON SDM 630-Modbus V3 Digital Energy Meter
