Specifications:
Supplier: Omron Automation

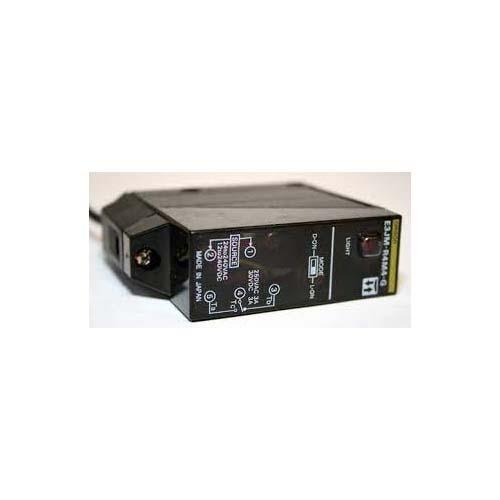

Part No: E3JMR4M4G
RoHS : Yes
COO: CN
ECCN: EAR99
Warning: California Prop 65
Peak Emission Wavelength : 660 nm
Output Type: Relay
Housing Material: Acrylonitrile Butadiene Styrene
Family: E3JM-R4M4-G
Light Source: Red LED
Maximum Operating Supply Voltage: 240,240 VAC|VDC
Minimum Operating Supply Voltage: 24,12 VAC|VDC
Pin Count: 5
Dimension: 75 x 25 x 80 mm
Switching Mode : Light ON/Dark ON
Maximum Ambient Illumination: 3000 lux
Directional Angle Range : 1 to 5 °
Maximum Response time: 30 MS
Type: Retro-Reflective
IP Rating: IP66
Mounting: Screw
Terminal Type: Terminal Block
Maximum Sensing Distance : 4 m
Operating Temperature : -25 to 55 °C
Package Includes:
1 x E3JMR4M4G Omron Automation
