E2EX5MF1 Omron Automation

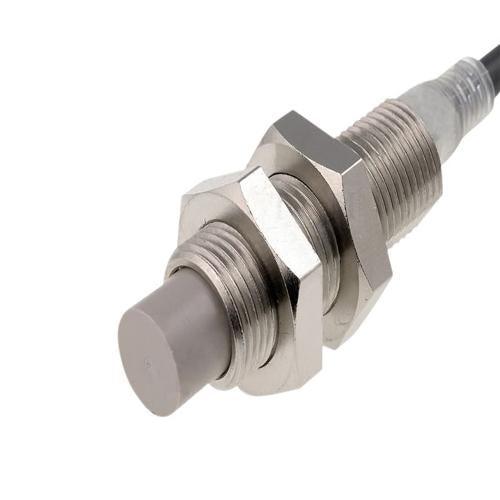

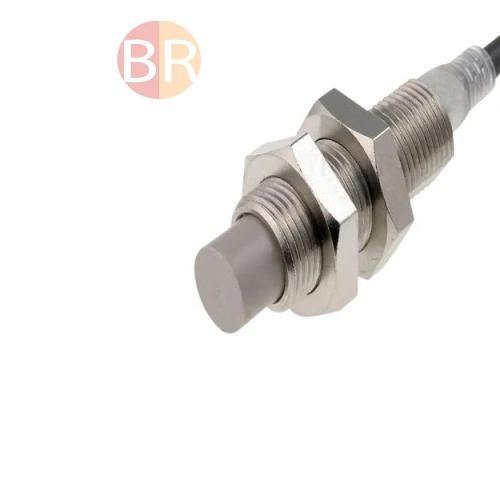

E2EX5MF1 Omron Automation In Pakistan BR4194 Description Proximity Sensor Inductive NO PNP 5mm 10V to 40VDC 4-Pin The world's longest sensing distance With high-brightness LED, the indicator is visible anywhere from 360° IP69K compliant for water resistance and wash resistance Specifications: manufacture: OMRON INDUSTRIAL part number： E2EX5MF1 RoHS： Unknown Minimum Operating Supply Voltage: 10 V Type: Inductive Output Type: PNP Family: E2E -X5MF1 Terminal Type: 3-Wire Response Frequency: 600 Hz IP Rating: IP67 Switching Mode: NO Module/IC Classification: Module AC Supply Voltage: N/A Sensing Distance: 5 mm Maximum Operating Supply Voltage: 40 V Typical Operating Supply Voltage: 12,15,18,24 V Operating Temperature: -40 to 85 °C Maximum Load Current: 200 mA Maximum Leakage Current: N/A Body Material: Stainless Steel Supplier Temperature Grade: N/A Hysteresis: 10 % Body Style: Barrel DC Supply Voltage: 10 to 40 V Maximum Consumption Current: 13 mA Maximum Drop Voltage: N/A Sensor Size: M12 Shielding: UnShielded
