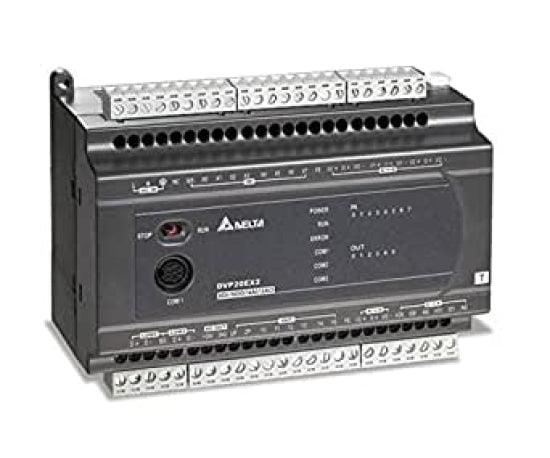

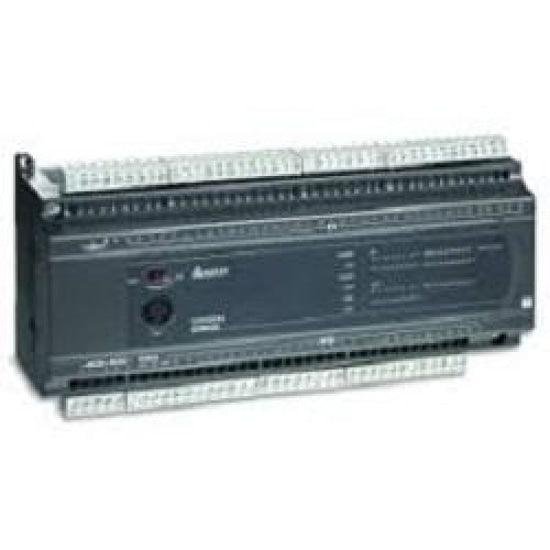

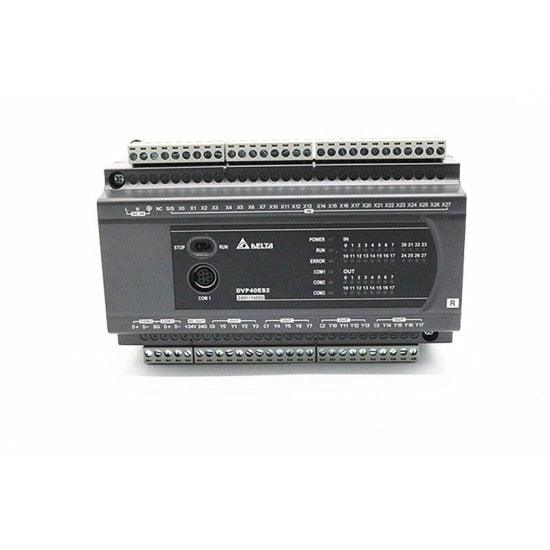

A programmable logic controller (PLC) is a control system using electronic operations . Its easy storing procedures, handy extending principles, functions of sequential/position control, timed counting and input/output control are widely applied to the field of industrial automation control. Features: MPU points: 16 / 20 / 24 / 32 / 40 / 60 Program capacity: 16k steps Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave) Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points DVP-EX2 MPU is built-in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution. New motion control instructions: Close loop control, alignment mark, shield, immediate variable speed, S-Curve acceleration/deceleration Application in the emerging industry: Exclusive instructions and function blocks designed for PV solar tracker Handy instructions for frequency inverter: For controlling the forward running, reverse running, RUN and STOP of Delta@@s AC motor drives Password protection: Password for the subroutine, user ID, restriction on trial times Highly efficient instruction execution Specifications: Model Item: 16ES2 00_24ES2:00_32ES2:00_40ES2:00_60ES2 00_20EX2:00_32ES2:11T Power supply voltage 100 ~ 240VAC (-15% ~ 10%), 50/60Hz + - 5% 24VDC (-15~+20%) Connector European standard removable terminal block (Pin pitch: 5mm) Operation ES 200 DVP-ES2 starts to run when the power rises to 95 ~ 100VAC and stops when the power drops to 70VAC. ES:211 DVP-ES2 starts to run when the power rises to 20.4VDC~28.8VDC and stops when the power drops to 17.5VDC. Power supply fuse 2A/250VAC 2.5A / 30VDC, Poly switch Power consumption 30VA 1.8W DC24V current output 500mA / Power supply protection DC24V output short circuit protection / Voltage withstand 1,500VAC (Primary-secondary), 1,500VAC (Primary-PE), 500VAC (Secondary-PE) Insulation resistance > 5M? at 500VDC (between all I/O points and ground) Noise immunity ESD: 8KV Air Discharge EFT: Power Line: 2KV, Digital I/O: 1KV, Analog & Communication I/O: 1KV RS: 26MHz ~ 1GHz, 10V/m Environment Operation: 0°C~55°C (temperature), 50~95% (humidity), pollution degree 2 Storage: -25°C~70°C (temperature), 5~95% (humidity) Agency approvals UL508 European community EMC Directive 89/336/EEC and Low Voltage Directive 73/23/EEC Vibration/shock immunity International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea) Weight (g) R 377 414 489 554 696 462 / T 351 387 432 498 614 442 321 Packages Include: 1 x DVP60ES200R Delta PLC 100-240VAC 36DI 24DO
