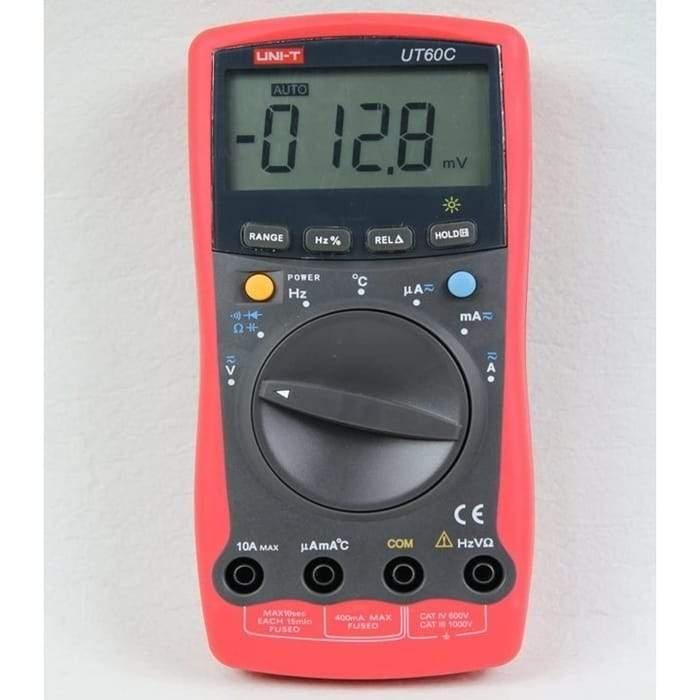

Uni-Trend UT60C Auto-ranging Multimeter with Both AC/DC Current 3 3/4 Digits for Higher accuracy. Palm-size UNI-T digital Multimeter is able to measure high voltage, amperage, resistance, capacitance, Duty cycle, and frequency as well as Temperature. The Portable DMM UT60C is a highly applied digital multimeter of good performance and full overload protection and backlight function. One of the most apparent features of Pocket-size Multitester is its ability to measure 10A for AC and DC current. Handheld UNI-T Multitester has a Back-lit LCD screen with a maximum reading of 3,999 . The enclosure structure design Of Professional Digital Multimeter ut60b adopted advanced "co-injection" technique in order to provide sufficient insulation
Features Of Palm Size Professional Multimeter UT60C:
Analog bar graph
Transistor measurement
Diode test and buzzer continuity
Auto and manual ranging
Fused 10A range
Automatic power-off
HOLD function
low battery indicator
REL function
Specifications Of Handheld Modern Multitester Uni-t ut60c:
Power : 9VBattery (6F22)
LCD Size : 63×31mm
Max. Display : 3999
Product Color : Red and Grey
Product size: 177mmx85mmx40mm
DC Voltage(V):
Range:400mV/4V/40V/400V/1000V
Accuracy: ±(0.8%+1)
AC Voltage(V):
Range:4V/40V/400V/750V
Accuracy: ±(1%+5)
DC Current (A):
Range:40μA/4mA/40mA/400mA/10A
Accuracy: ±(1%+2)
AC Current (A):
Range:4mA/400mA/10A
Accuracy: ±(1.5%+5)
Resistance(Ω):
Range:400Ω/4KΩ/40KΩ/4MΩ/40MΩ/400MΩ
Accuracy: ±(1%+2)
Capacitance (F):
Range:40nF/400nF/4uF/40uF/100Μf
Accuracy: ±(3%+5)
Frequency (Hz) :
Range: 10Hz-10MHz
Accuracy: ±(0.1%+3)
Temperatures(ºC):
Range: -40ºC ~ 400ºC
Accuracy: ±(1%+3)
